CWB18-11-30D15, Contactor 18A, 1NO/1NC, Coil 120VAC, 50/60Hz

CWB18-11-30D15, Contactor 18A, 1NO/1NC, Coil 120VAC

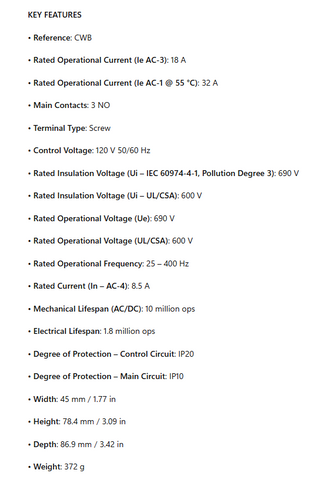

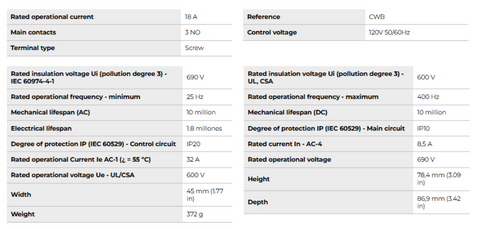

KEY FEATURES

• Reference: CWB

• Rated Operational Current (Ie AC-3): 18 A

• Rated Operational Current (Ie AC-1 @ 55 °C): 32 A

• Main Contacts: 3 NO

• Terminal Type: Screw

• Control Voltage: 120 V 50/60 Hz

• Rated Insulation Voltage (Ui – IEC 60974-4-1, Pollution Degree 3): 690 V

• Rated Insulation Voltage (Ui – UL/CSA): 600 V

• Rated Operational Voltage (Ue): 690 V

• Rated Operational Voltage (UL/CSA): 600 V

• Rated Operational Frequency: 25 – 400 Hz

• Rated Current (In – AC-4): 8.5 A

• Mechanical Lifespan (AC/DC): 10 million ops

• Electrical Lifespan: 1.8 million ops

• Degree of Protection – Control Circuit: IP20

• Degree of Protection – Main Circuit: IP10

• Width: 45 mm / 1.77 in

• Height: 78.4 mm / 3.09 in

• Depth: 86.9 mm / 3.42 in

• Weight: 372 g
