E-Motor Nations | SKU :
EMN-018306

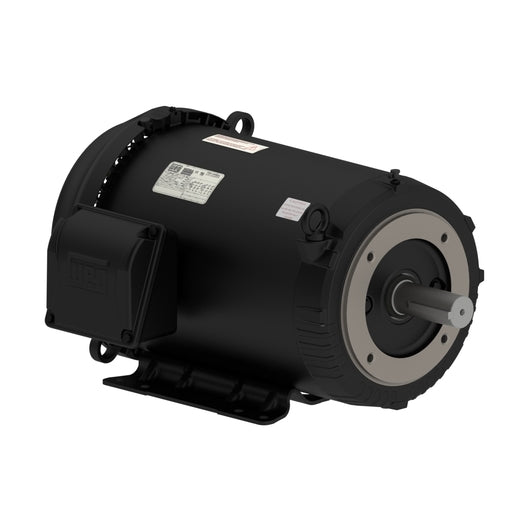

CT010504NPW01, Weg, 10 Hp, 1800 Rpm, 575 Volts, Frame: 213/5TC, Tefc,
Prix habituel
$1,099.12
Prix unitaire
/
Indisponible
CT010504NPW01, Weg, 10 Hp, 1800 Rpm, 575 Volts, Frame: 213/5TC, Tefc, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
CT010504NPW01, Weg, 10 Hp, 1800 Rpm, 575 Volts, Frame: 213/5TC, Tefc,
Prix habituel
$1,099.12
Prix unitaire
/
Indisponible
Description
Description
CT010504NPW01, Weg

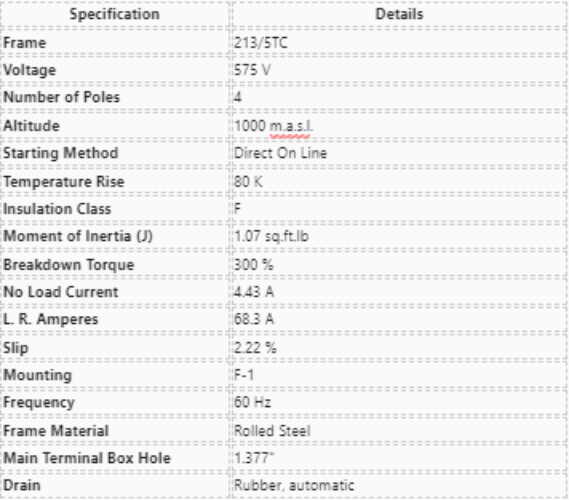

| Specification | Details |
|---|---|
| Frame | 213/5TC |
| Voltage | 575 V |
| Number of Poles | 4 |
| Altitude | 1000 m.a.s.l. |
| Starting Method | Direct On Line |
| Temperature Rise | 80 K |
| Insulation Class | F |
| Moment of Inertia (J) | 1.07 sq.ft.lb |
| Breakdown Torque | 300 % |
| No Load Current | 4.43 A |
| L. R. Amperes | 68.3 A |
| Slip | 2.22 % |
| Mounting | F-1 |
| Frequency | 60 Hz |
| Frame Material | Rolled Steel |
| Main Terminal Box Hole | 1.377" |
| Drain | Rubber, automatic |

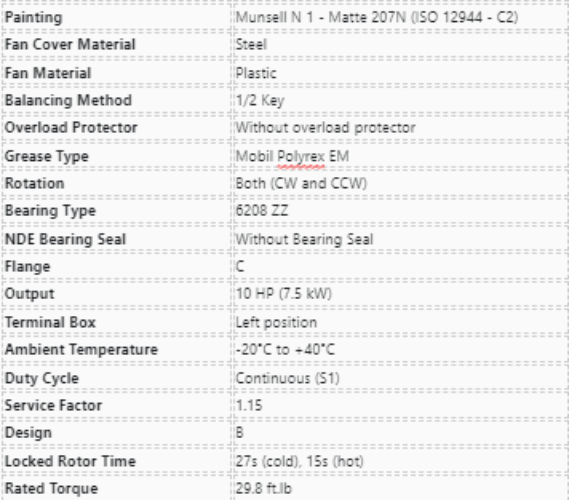

| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Balancing Method | 1/2 Key |
| Overload Protector | Without overload protector |
| Grease Type | Mobil Polyrex EM |
| Rotation | Both (CW and CCW) |
| Bearing Type | 6208 ZZ |
| NDE Bearing Seal | Without Bearing Seal |
| Flange | C |
| Output | 10 HP (7.5 kW) |
| Terminal Box | Left position |
| Ambient Temperature | -20°C to +40°C |
| Duty Cycle | Continuous (S1) |
| Service Factor | 1.15 |
| Design | B |
| Locked Rotor Time | 27s (cold), 15s (hot) |
| Rated Torque | 29.8 ft.lb |

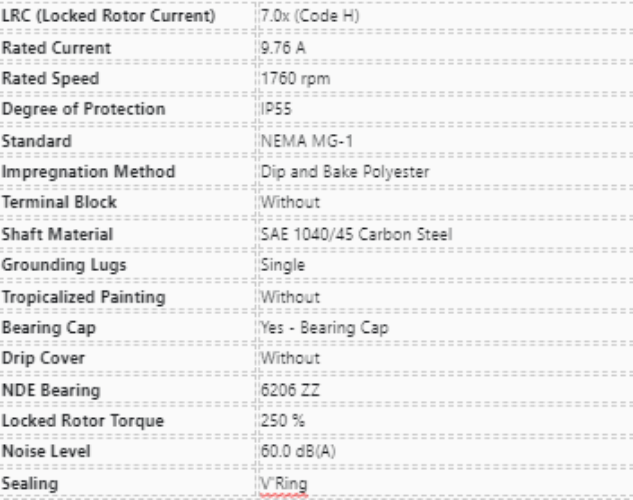

| LRC (Locked Rotor Current) | 7.0x (Code H) |
| Rated Current | 9.76 A |
| Rated Speed | 1760 rpm |
| Degree of Protection | IP55 |
| Standard | NEMA MG-1 |
| Impregnation Method | Dip and Bake Polyester |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Grounding Lugs | Single |
| Tropicalized Painting | Without |
| Bearing Cap | Yes - Bearing Cap |
| Drip Cover | Without |
| NDE Bearing | 6206 ZZ |
| Locked Rotor Torque | 250 % |
| Noise Level | 60.0 dB(A) |
| Sealing | V'Ring |
