E-Motor Nations | SKU :
EMN-017339

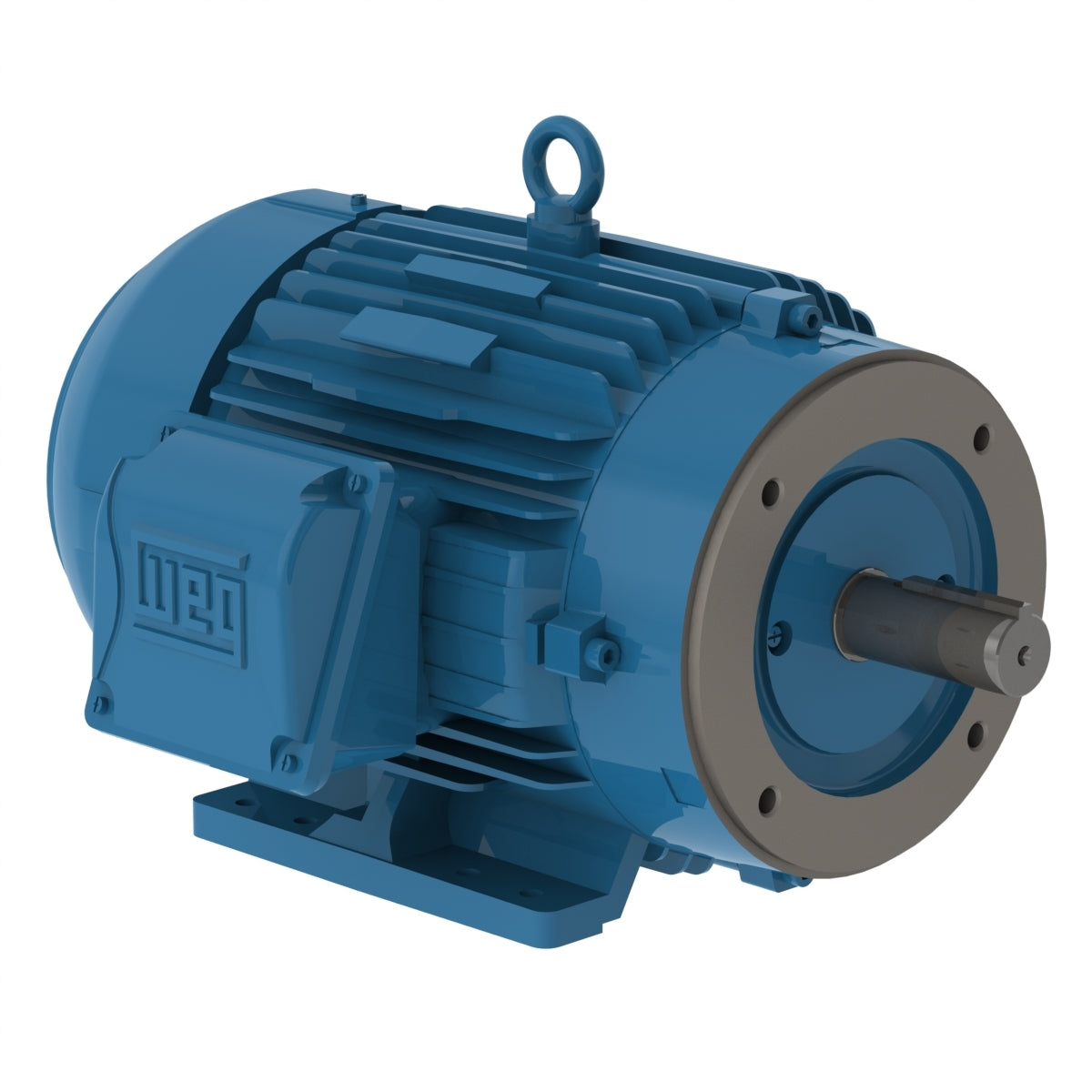

CT010502NPW01, Weg, 10Hp, 3600 RPM, 575 Voits,Frame: 213/5TC, TEFC,
Prix habituel
$1,378.98
Prix unitaire
/
Indisponible
CT010502NPW01, Weg, 10Hp, 3600 RPM, 575 Voits,Frame: 213/5TC, TEFC, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
CT010502NPW01, Weg, 10Hp, 3600 RPM, 575 Voits,Frame: 213/5TC, TEFC,
Prix habituel
$1,378.98
Prix unitaire
/
Indisponible
Description
Description
CT010502NPW01,Weg, CEM3711T, Baldor, PDH01025C,RF01025-C, GT1418A, MPP-31, MaxMotion, MPC-31W,
Electric Motors
| Frame | 213/5TC |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3530 rpm |
| Slip | 1.94 % |
| Rated voltage | 575 V |
| Rated current | 9.28 A |
| L. R. Amperes | 66.8 A |
| LRC | 7.2x(Code H) |
| No load current | 2.88 A |
| Rated torque | 14.9 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 290 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 0.6362 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 179 lb |
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
Efficiency
| 50% | 75% | 100% |
|---|---|---|
| 89.5 | 90.2 | 90.2 |
Power factor
| 50% | 75% | 100% |
|---|---|---|
| 0.79 | 0.87 | 0.90 |
Features
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1" |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 - C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Bearing cap | No-Without Bearing Cap |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Connection Cables Quantity | 6 |
| Fan material | Plastic |
