E-Motor Nations  |  SKU : EMN-017208

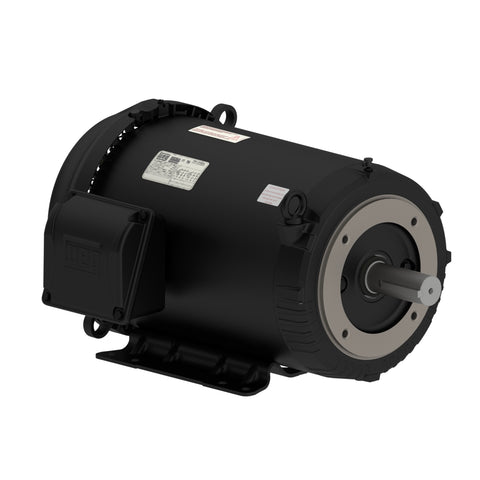

CT005404NPW01,Weg,5 Hp,1750 Rpm,230/460V, Fr:182/4TC,TEFC,W01,Premium,

$787.82
shipping

Estimation des frais de livraison

Description

CT005404NPW01,Weg, Replace Baldor CEM3615T, CEM3615T-G, EM3615T,Spec 36A002Q032G1,36G271Q032G1, 36-0000-0252,

Electric Motors

Frame 182/4TC
Output 5 HP (3.7 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1750 rpm
Slip 2.78 %
Rated voltage 230/460 V
Rated current 13.0/6.49 A
L. R. Amperes 90.9/45.4 A
LRC 7.0x(Code J)
No load current 6.89/3.44 A
Rated torque 15.0 ft.lb
Locked rotor torque 220 %
Breakdown torque 300 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 0.3080 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 56.0 dB(A)
Approx. weight³ 85.9 lb
