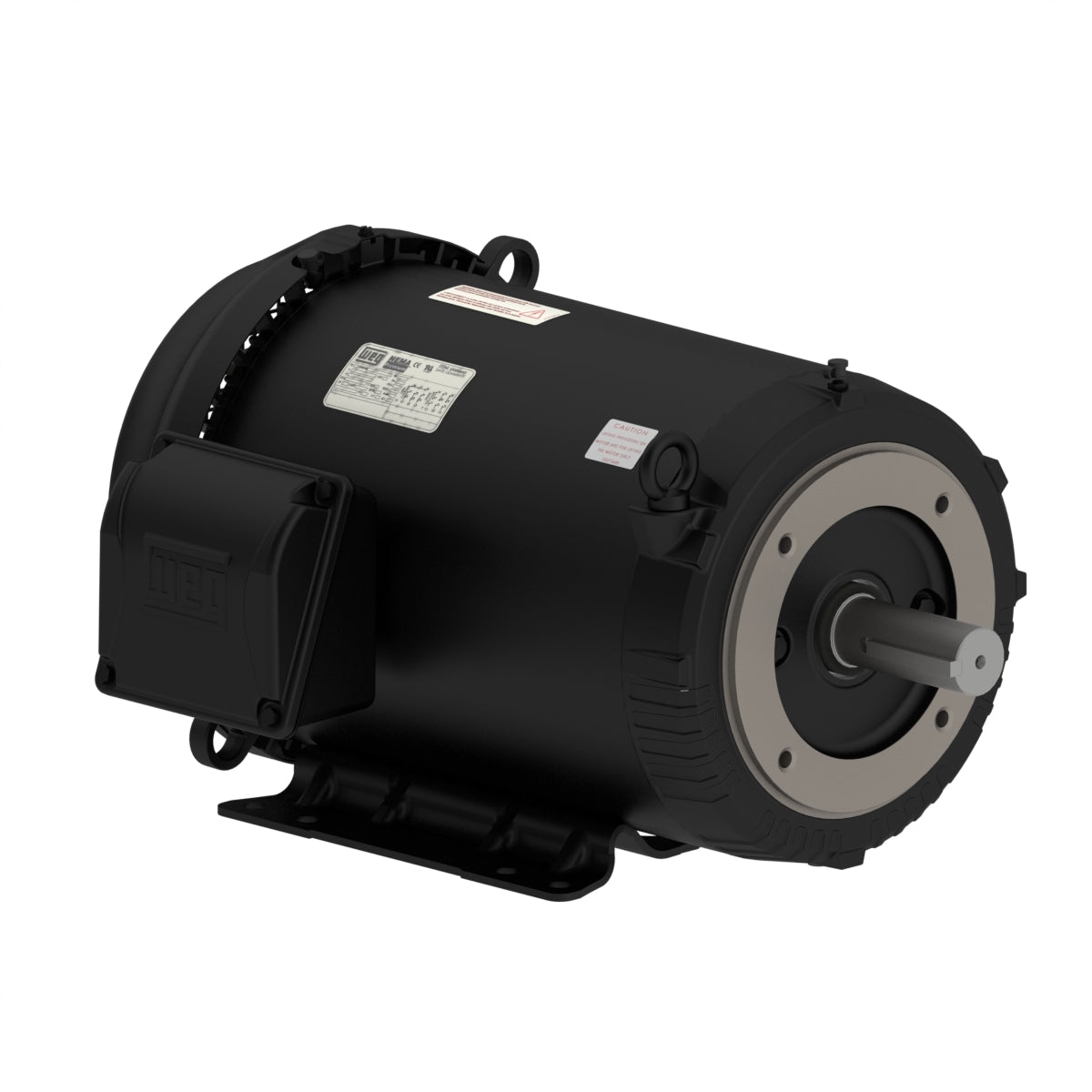

CT003504NPW21, Weg,3 Hp,1765 Rpm, 575V, Fr:182/4TC,TEFC,W01,Premium,
CT003504NPW21, Weg,3 Hp,1765 Rpm, 575V, Fr:182/4TC,TEFC,W01,Premium, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
CT003504NPW21, Weg,3 Hp,1765 Rpm, 575V, Fr:182/4TC,TEFC,W01,Premium,
Description
Description
CT003504NPW21,Weg, Replace Baldor, EM3611T-5, CEM3611T-5,CEM3611T-5G,EM3615T-5G,Spec 36A002S582G1,36Q570S266G1,36M524S582G1,36G271Q037G1, MaxMotion MPP-17, MPC-17W, MPP-17, MPC-22, MPC-22W, TECO WESTINGHOUSE, APH00345, RF00345,EC00345, Us Motor,NIDEC, S3P2G,MARATHON, GT1110A,182TTFCD6030,
Electric Motors
| Frame | 182/4TC |
|---|---|
| Output | 3 HP (2.2 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1765 rpm |
| Slip | 1.94 % |
| Rated voltage | 575 V |
| Rated current | 3.2 A |
| L. R. Amperes | 67.1/33.5 A |
| LRC | 8.8x(Code K) |
| No load current | 2.1 A |
| Rated torque | 8.93 ft.lb |
| Locked rotor torque | 220 % |
| Breakdown torque | 300 % |
| Locked rotor time | 32s (cold) 18s (hot) |
| Moment of inertia (J) | 0.4017 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.15 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
