E-Motor Nations | SKU :
EMN-018300

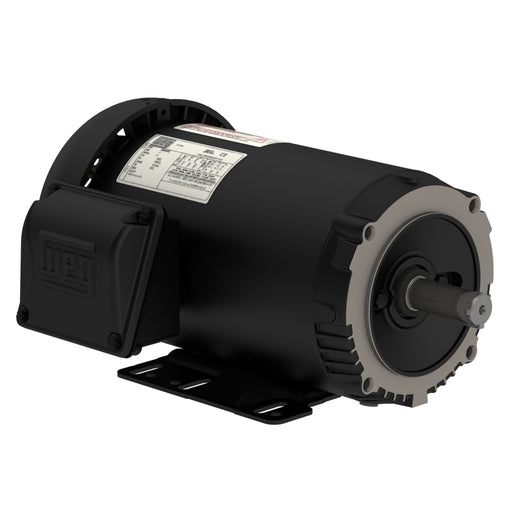

CT001404NPW01,WEG,1.5Hp,1750 Rpm,230-460 Volts,Fr:143/5TC,TEFC,W01,
Prix habituel
$480.00
Prix unitaire
/
Indisponible
CT001404NPW01,WEG,1.5Hp,1750 Rpm,230-460 Volts,Fr:143/5TC,TEFC,W01, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
CT001404NPW01,WEG,1.5Hp,1750 Rpm,230-460 Volts,Fr:143/5TC,TEFC,W01,
Prix habituel
$480.00
Prix unitaire
/
Indisponible
Description
Description
CT001404NPW01, WEG, W01 Series,
| Specification | Details |
|---|
| Frame | 143/5TC |
| Voltage | 230/460 V |
| Number of Poles | 4 |
| Class | MOTOR ROLLED STEEL |
| Detail | NEMA PREMIUM EFFICIENCY |
| Polarity | 04 |
| Ambient Temperature | -20°C to +40°C |
| Duty Cycle | Continuous (S1) |
| Service Factor | 1.15 (1.00 @ 208V) |
| Design | B |
| Locked Rotor Time | 37s (cold), 21s (hot) |
| Rated Torque | 4.50 ft.lb |
| Locked Rotor Current (LRC) | 8.2x (Code K) |
| Rated Current | 4.04/2.02 A |
| Rated Speed | 1750 rpm |
| Degree of Protection | IP55 |
| Standard | NEMA MG-1 |
| Impregnation Method | Dip and Bake Polyester |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Grounding Lugs | Single |
| Tropicalized Painting | Without |
| Bearing Cap | Yes, with Bearing Cap |
| Drip Cover | Without |
| Non-Drive End (NDE) Bearing | 6203 ZZ |
| Locked Rotor Torque | 270% |
| Noise Level | 52.0 dB(A) |
| Sealing | V'Ring |
| Flange | C |
| Output | 1.5 HP (1.1 kW) |
| Terminal Box Position | Left |
| Application | Rolled Steel |
| Power | 1.5 HP |
| Altitude | 1000 m.a.s.l. |
| Starting Method | Direct On Line |
| Temperature Rise | 80 K |
| Insulation Class | F |
| Moment of Inertia (J) | 0.1101 sq.ft.lb |
| Breakdown Torque | 300% |
| No Load Current | 2.17/1.08 A |
| Locked Rotor Amperes | 33.1/16.6 A |
| Slip | 2.78% |
| Mounting | F-1/B34R(D) |
| Frequency | 60 Hz |
| Frame Material | Rolled Steel |
| Main Terminal Box Hole | 1.118" |
| Drain | Rubber, automatic |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Fan Cover Material | Industrial polymer |
| Fan Material | Plastic |
| Balancing Method | 1/2 Key |
| Overload Protector (Phenolic) | Without overload protector |
| Grease Type | Mobil Polyrex EM |
| Rotation | Both (CW and CCW) |
| Bearing Type | 6205 ZZ |
| NDE Bearing Seal | Without Bearing Seal |
