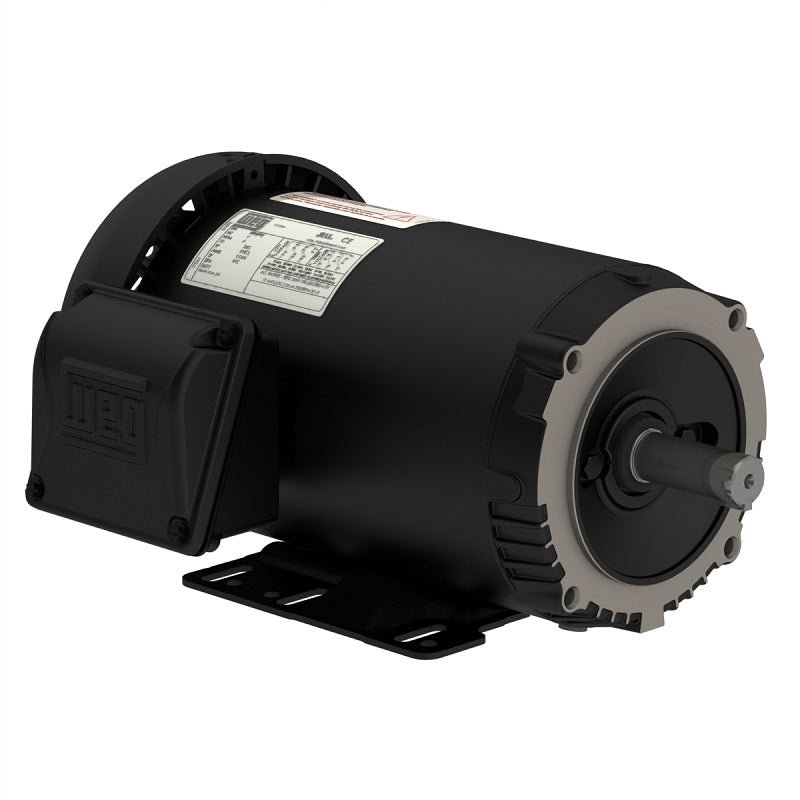

CT001402NPW01, Weg, 1.5 Hp, 3480 Rpm, 230/460V,Fr: 143/5TC, W01,Tefc,
CT001402NPW01, Weg, 1.5 Hp, 3480 Rpm, 230/460V,Fr: 143/5TC, W01,Tefc, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
CT001402NPW01, Weg, 1.5 Hp, 3480 Rpm, 230/460V,Fr: 143/5TC, W01,Tefc,
Description
Description
CT001402NPW01, Weg, REPLACE CT001402NPW22, Maxmotion, MQP-6, MQC-6,MQC-6W, NIDEC U32P1D, CD32P1E, Westinghouse RF1/52, ELP32P1D, BALDOR EM3550T, EM3583T, H32P1DC,
Electric Motors
| Frame | 143/5TC |
|---|---|
| Output | 1.5 HP (1.1 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3480 rpm |
| Slip | 3.33 % |
| Rated voltage | 208-230/460 V |
| Rated current | 4.20-3.92/1.96 A |
| L. R. Amperes | 37.4-34.9/17.4 A |
| LRC | 8.9x(Code L) |
| No load current | 1.43-1.66/0.830 A |
| Rated torque | 2.23 ft.lb |
| Locked rotor torque | 310 % |
| Breakdown torque | 370 % |
| Locked rotor time | 37s (cold) 21s (hot) |
| Moment of inertia (J) | 0.0470 sq.ft.lb |
|---|---|
| Design | B |
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 47.9 lb |
Description
Presenting a whole new electrical and mechanical design, the new platform of Rolled Steel motors is made to run cooler, last longer and to be easier to install and maintain. The Premium Efficiency motors meet or exceed all NEMA Premium requirements for energy efficiency. These TEFC motors are designed for operating in environments of dirt, dust, and moisture, on indoor and outdoor applications.
Feature
- Motors are compliant with DOE and NRCAN
- Three-phase, 2, 4 and 6 pole, 60Hz, 1.15 Service Factor
- Voltage: 230/460V, 575V
- Totally Enclosed Fan Cooled - TEFC (IP55) waterproof as per NEMA MG1 1.26.6 “Waterproof Machine”
- V’Ring sealing / Ball bearings
- Class “F” insulation for all frames. Temperature rise limited to Class “B” (80K)
- NEMA design “B”
- Continuous duty (S1)
- 104ºF (40ºC) ambient temperature
- Altitude: 3300 ft (1000m)
- Double Gasketed terminal box
- All frames have dual mounting
