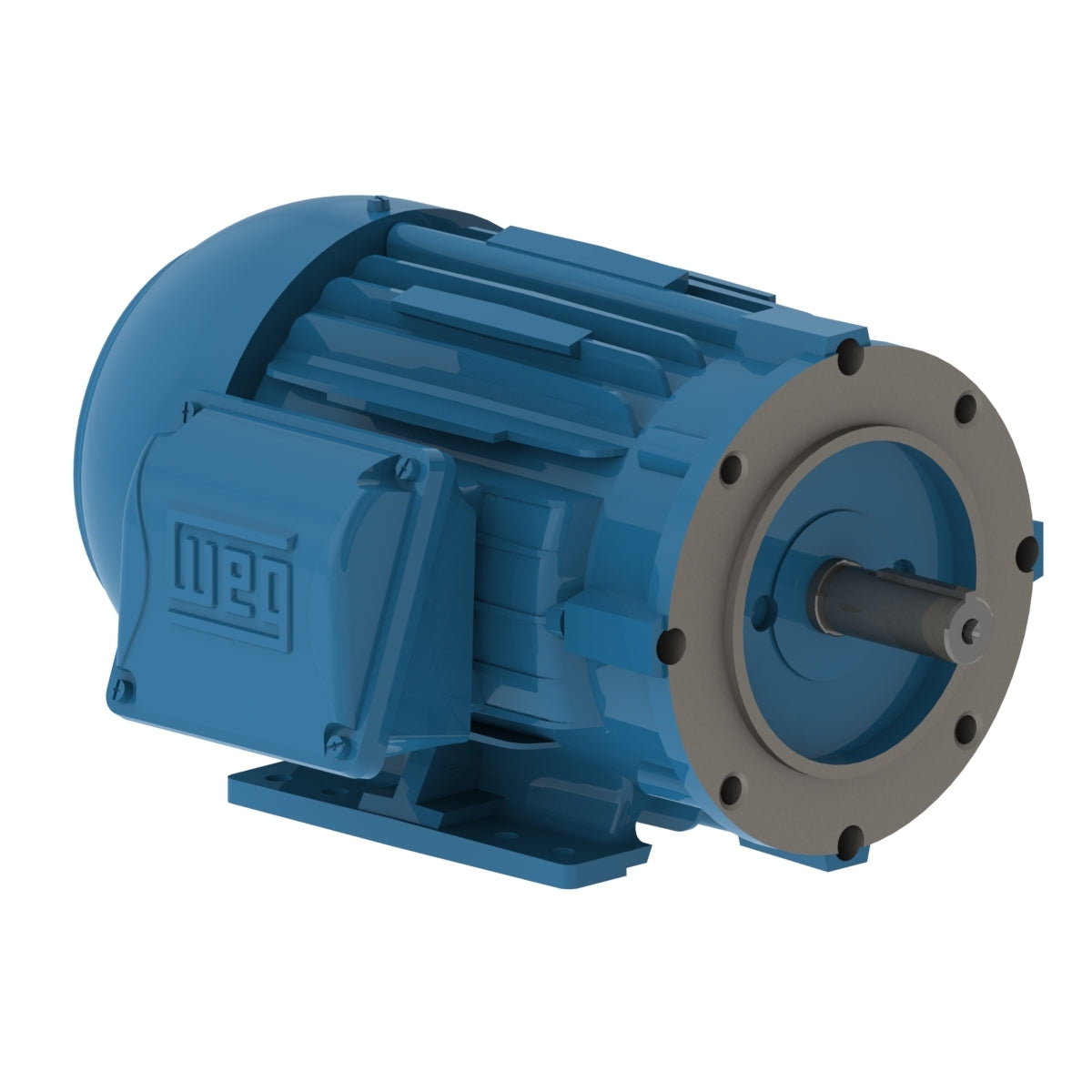

CT000402NPW01, Weg, 1 Hp, 3500 Rpm, 230/460V,Fr: 143/5TC, W01, Tefc,
CT000402NPW01, Weg, 1 Hp, 3500 Rpm, 230/460V,Fr: 143/5TC, W01, Tefc, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
CT000402NPW01, Weg, 1 Hp, 3500 Rpm, 230/460V,Fr: 143/5TC, W01, Tefc,
Description
Description
CT000402NPW01, Weg CT000502NPW22, Replace Westinghouse RF0012, PDH0012, APH0012,MaxMotion MQP-1, MQC-1W, MQC-1,
Electric Motors
| Frame | 143/5TC |
|---|---|
| Output | 1 HP (0.75 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated speed | 3500 rpm |
| Slip | 2.78 % |
| Rated voltage | 208-230/460 V |
| Rated current | 3.16-2.88/1.44 A |
| L. R. Amperes | 25.9-23.6/11.8 A |
| LRC | 8.2x(Code L) |
| No load current | 1.22-1.42/0.710 A |
| Rated torque | 1.48 ft.lb |
| Locked rotor torque | 320 % |
| Breakdown torque | 400 % |
| Locked rotor time | 39s (cold) 22s (hot) |
| Moment of inertia (J) | 0.0332 sq.ft.lb |
|---|---|
| Insulation Class | F |
| Service factor | 1.25 |
| Temperature rise | 80 K |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 - TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 68.0 dB(A) |
| Approx. weight³ | 43.1 lb |
Description
Presenting a whole new electrical and mechanical design, the new platform of Rolled Steel motors is made to run cooler, last longer and to be easier to install and maintain. The Premium Efficiency motors meet or exceed all NEMA Premium requirements for energy efficiency. These TEFC motors are designed for operating in environments of dirt, dust, and moisture, on indoor and outdoor applications.
Feature
- Motors are compliant with DOE and NRCAN
- Three-phase, 2, 4 and 6 pole, 60Hz, 1.15 Service Factor
- Voltage: 230/460V, 575V
- Totally Enclosed Fan Cooled - TEFC (IP55) waterproof as per NEMA MG1 1.26.6 “Waterproof Machine”
- V’Ring sealing / Ball bearings
- Class “F” insulation for all frames. Temperature rise limited to Class “B” (80K)
- NEMA design “B”
- Continuous duty (S1)
- 104ºF (40ºC) ambient temperature
- Altitude: 3300 ft (1000m)
- Double Gasketed terminal box
- All frames have dual mounting
