WEG  |  SKU : EMN-023620

CP030402NPW40, 30Hp, 3545 RPM, 200-208/400V, 3Ph, 60Hz, ODP, Frame 284TSC, NEMA PREM, W40

$3,930.56
Frais de livraison calculés lors du paiement.
shipping

Estimation des frais de livraison

Description

CP030402NPW40, 30Hp, 3545 RPM, 200-208/400V, 3Ph, 60Hz, ODP, Frame 284TSC, NEMA PREM, W40

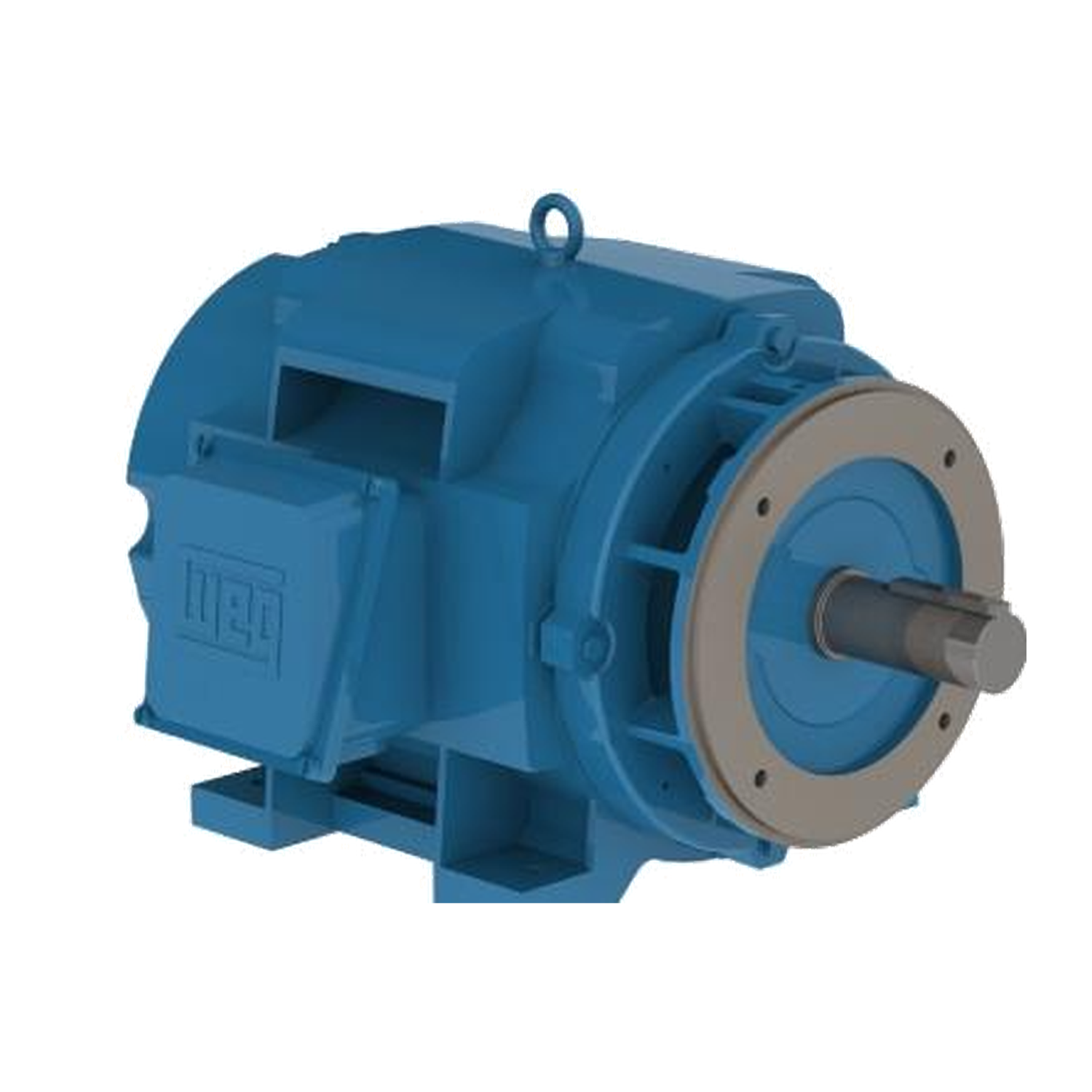

Image is provided for reference purposes only. Actual product may vary

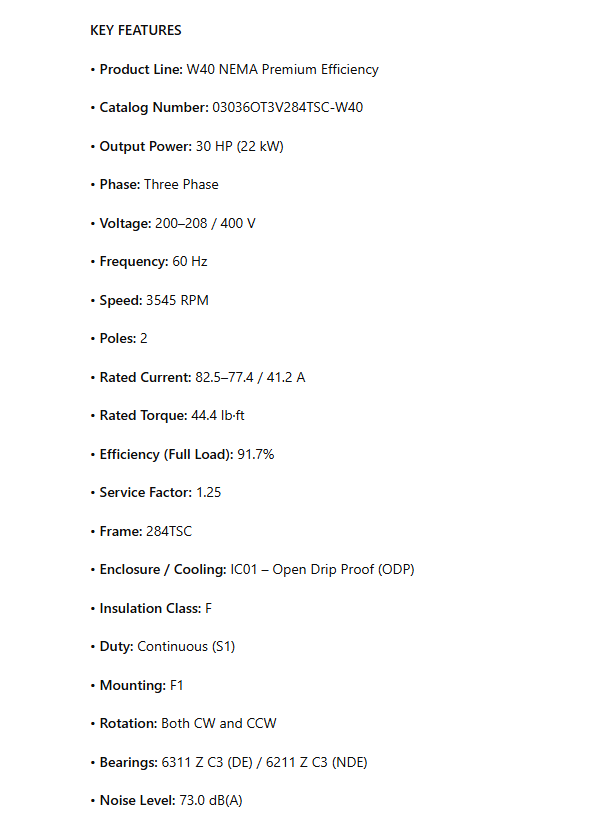

KEY FEATURES

• Product Line: W40 NEMA Premium Efficiency

• Catalog Number: 03036OT3V284TSC-W40

• Output Power: 30 HP (22 kW)

• Phase: Three Phase

• Voltage: 200–208 / 400 V

• Frequency: 60 Hz

• Speed: 3545 RPM

• Poles: 2

• Rated Current: 82.5–77.4 / 41.2 A

• Rated Torque: 44.4 lb·ft

• Efficiency (Full Load): 91.7%

• Service Factor: 1.25

• Frame: 284TSC

• Enclosure / Cooling: IC01 – Open Drip Proof (ODP)

• Insulation Class: F

• Duty: Continuous (S1)

• Mounting: F1

• Rotation: Both CW and CCW

• Bearings: 6311 Z C3 (DE) / 6211 Z C3 (NDE)

• Noise Level: 73.0 dB(A)
