CFW320A02P6S1NB20, 0.75Hp (0.55 kW), 2.6 A, 110‑127 V, 1‑Phase Input / 230 V 3‑Phase Output, IP20, Frame A

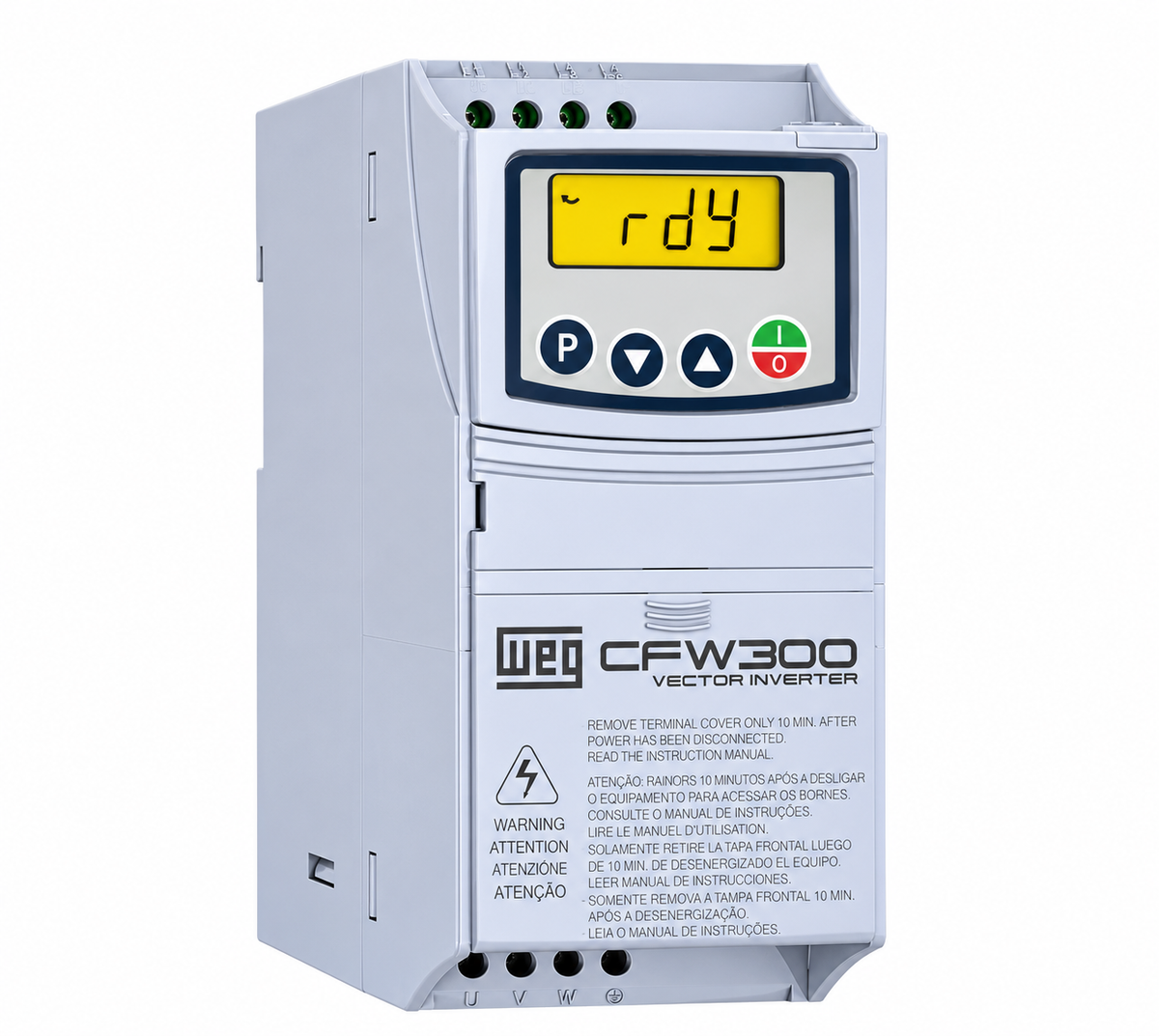

This compact single‑phase input variable frequency drive is designed for controlling three‑phase induction motors, offering both scalar (V/F) and vector (VVW) control modes in an IP20 enclosure with flexible mounting options.

KEY FEATURES

• Model: CFW320A02P6S1NB20

• Product Type: AC DRIVES

• Horsepower: 0.75 Hp (0.55 kW)

• Voltage: 110‑127 V @ 60 Hz – Single‑Phase Input / 230 V Output – 3‑Phase

• Current: 2.6 A (HD)

• Enclosure: IP20 (Enclosed)

• Frame: A

• Control Modes: Scalar (V/F) and Voltage Vector WEG (VVW)

• Mounting: 35 mm DIN rail, panel or wall

• Carrier Frequency Range: 2.5–15 kHz

• Output Frequency Range: 0.1–400 Hz

• Ambient Rating: 0–50 °C

• IP Rating: IP20

• Built‑in Interface: HMI with SoftPLC functionality

• Expansion Slots: Two independent slots for communication and I/O modules

• Inputs/Outputs: 4 digital inputs, 1 analog input, 1 relay output
