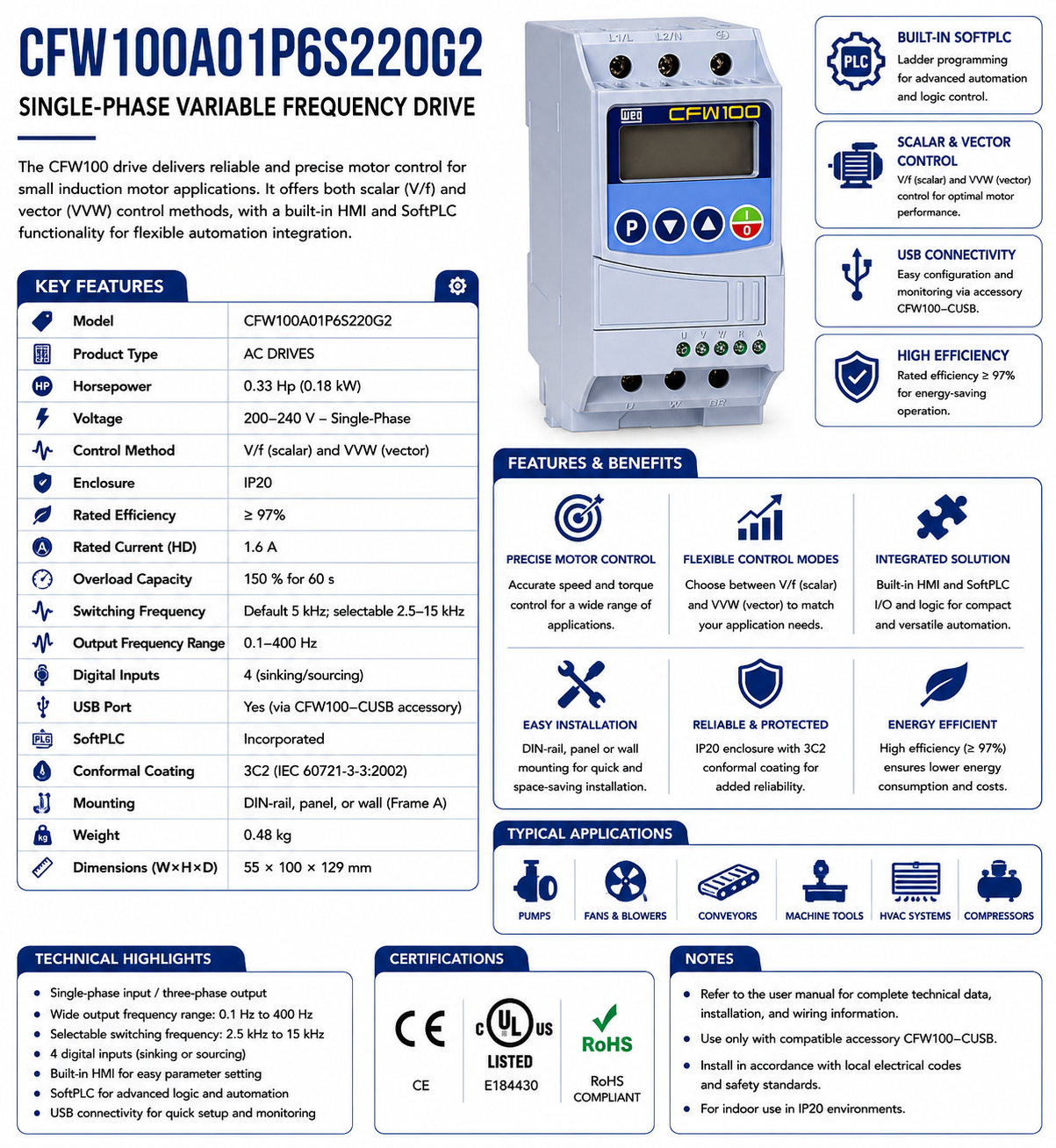

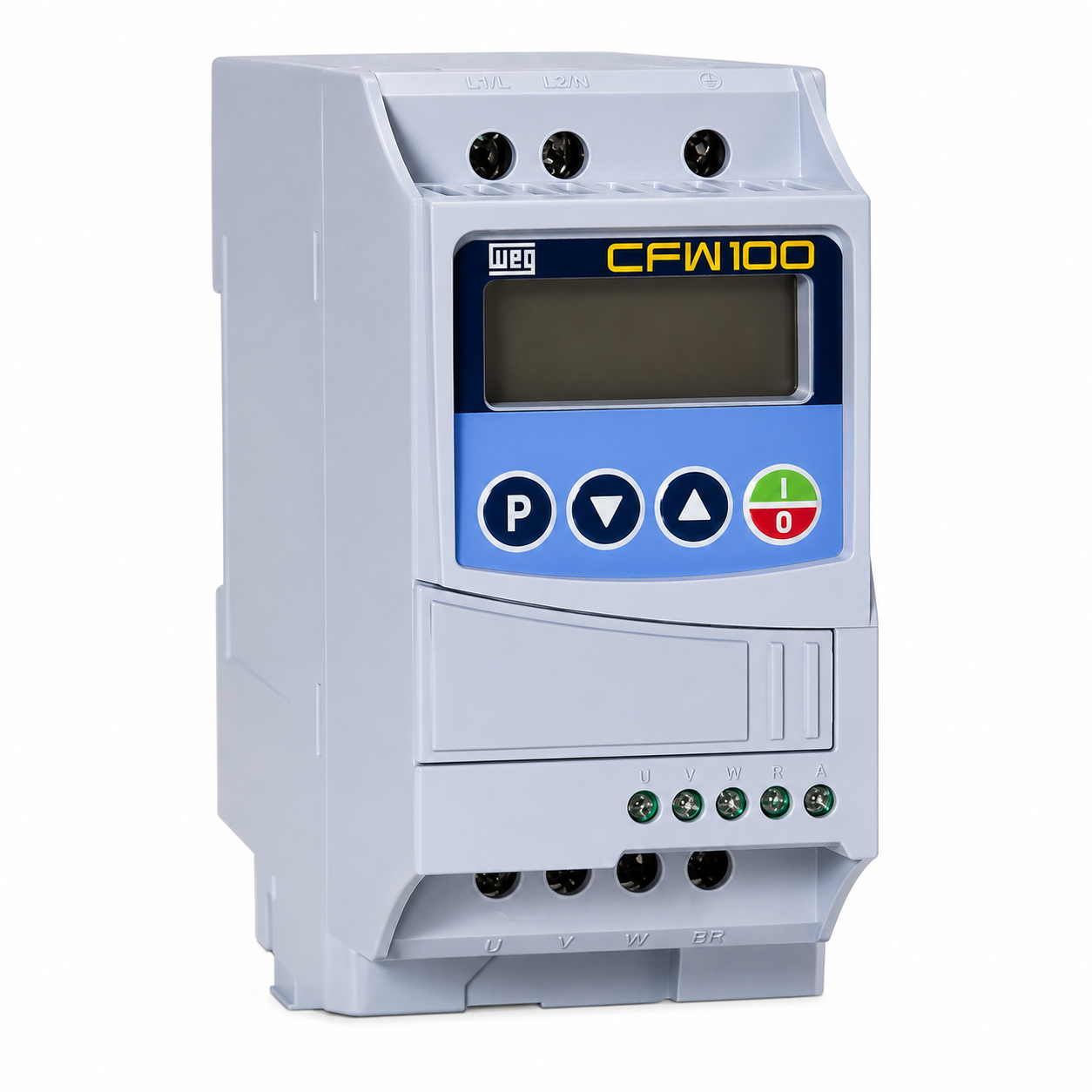

CFW100A01P6S220G2, 0.33 Hp, 0.18 kW, 200‑240 V, 1 Ph, IP20, Frame A, Variable Frequency Drive

This compact single‑phase variable frequency drive is designed for small induction motor applications, offering both scalar (V/f) and vector (VVW) control methods, with built‑in HMI and SoftPLC functionality for flexible automation integration.

KEY FEATURES

• Model: CFW100A01P6S220G2

• Product Type: AC DRIVES

• Horsepower: 0.33 Hp (0.18 kW)

• Voltage: 200‑240 V – Single‑Phase

• Control Method: V/f (scalar) and VVW (vector)

• Enclosure: IP20

• Rated Efficiency: ≥ 97%

• Rated Current (HD): 1.6 A

• Overload Capacity: 150 % for 60 s

• Switching Frequency: Default 5 kHz; selectable 2.5–15 kHz

• Output Frequency Range: 0.1–400 Hz

• Digital Inputs: 4 (sinking/sourcing)

• USB Port: Yes (via CFW100‑CUSB accessory)

• SoftPLC: Incorporated

• Conformal Coating: 3C2 (IEC 60721‑3‑3:2002)

• Mounting: DIN‑rail, panel, or wall (Frame A)

• Weight: 0.48 kg

• Dimensions (W×H×D): 55 × 100 × 129 mm
