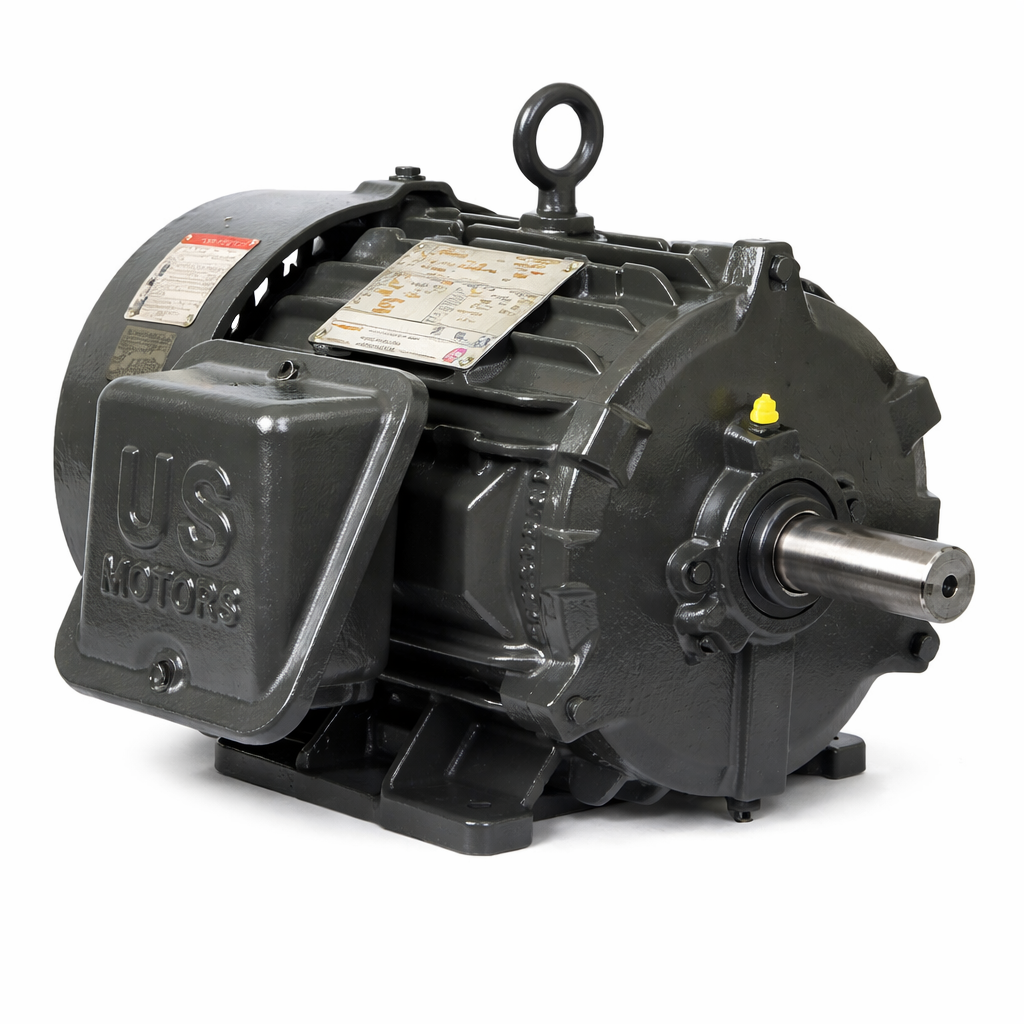

CD100P2F, General Purpose AC Motor, 100Hp, 1785 RPM, 460V, 3Ph, 60-50Hz, TEFC, Frame 405T, IP55

CD100P2F, General Purpose AC Motor, 100Hp, 1785 RPM, 460V, 3Ph, 60-50Hz, TEFC, Frame 405T, IP55

Replace MQC-77W, 405TTFCD6036CB, MQP-77, MQP-77C, JF97

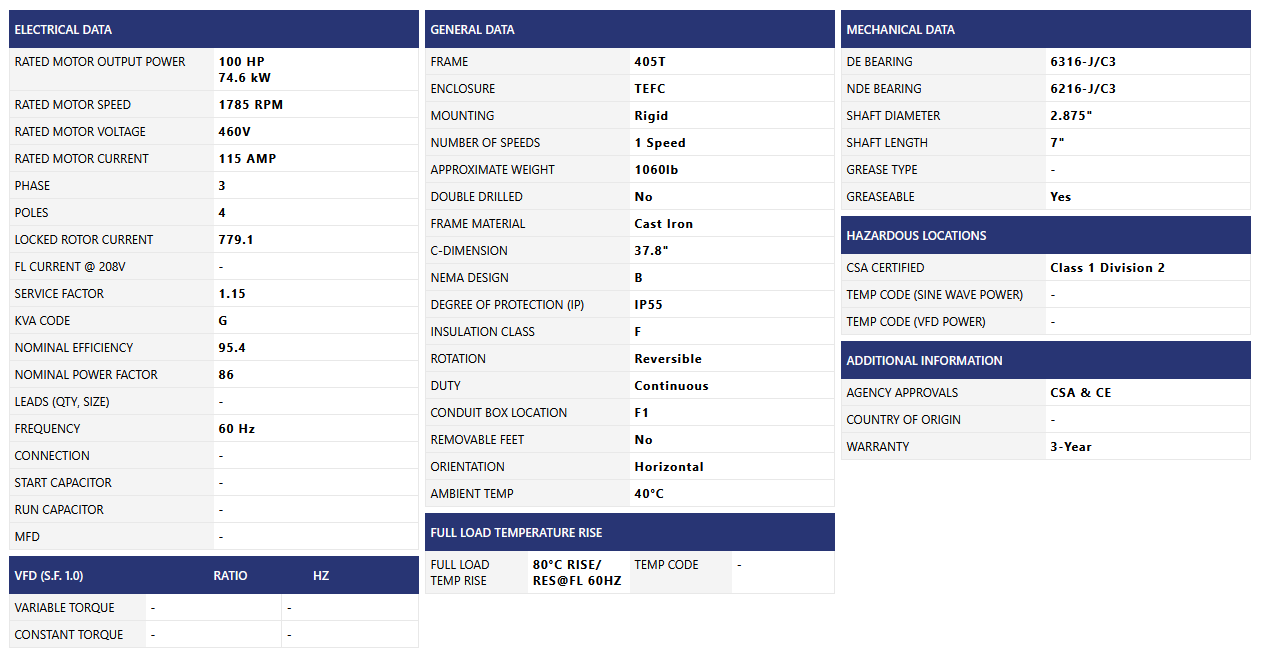

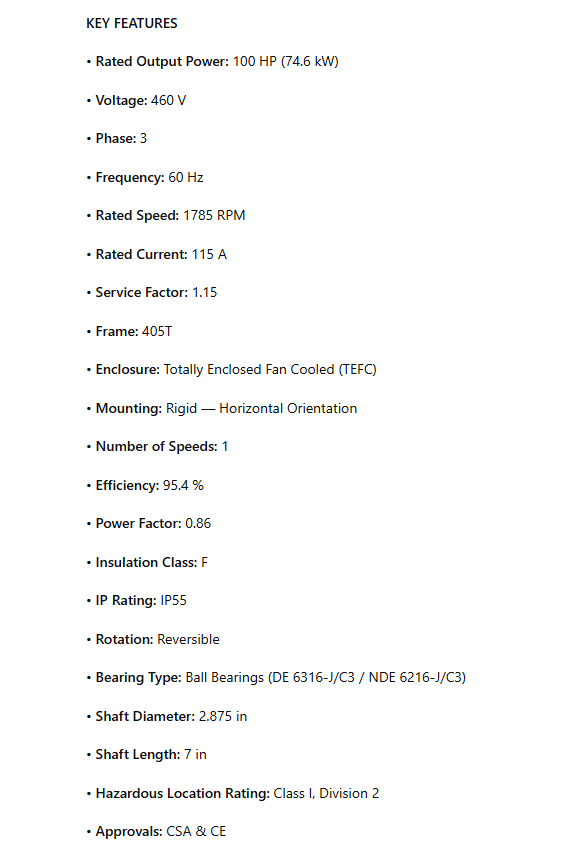

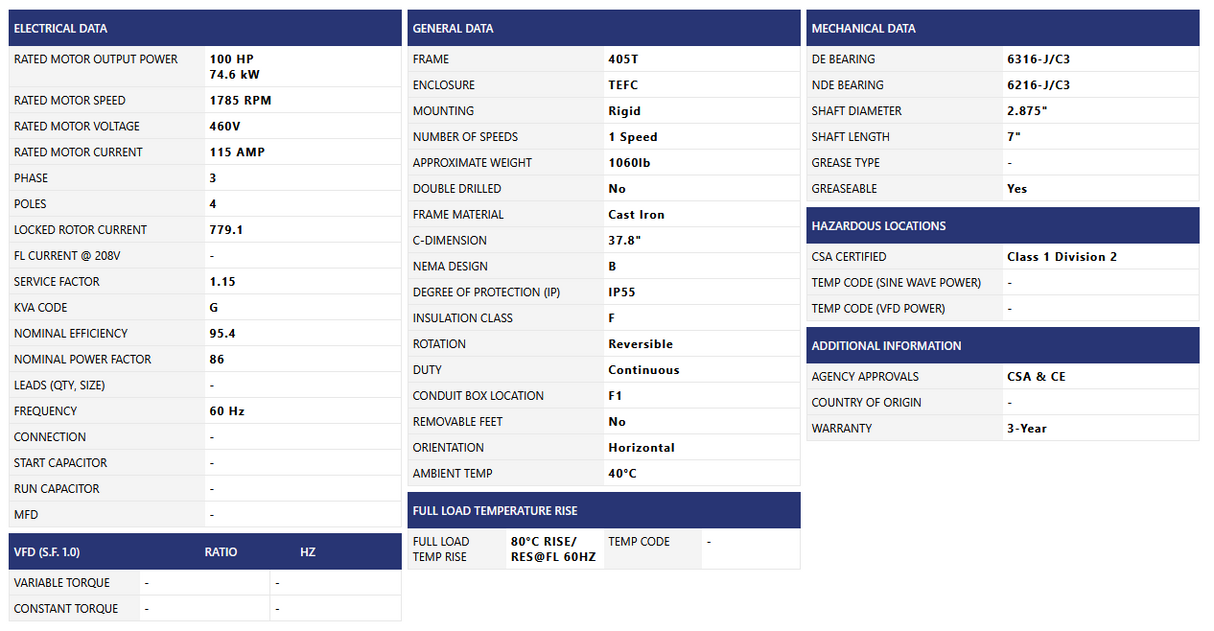

KEY FEATURES

• Rated Output Power: 100 HP (74.6 kW)

• Voltage: 460 V

• Phase: 3

• Frequency: 60 Hz

• Rated Speed: 1785 RPM

• Rated Current: 115 A

• Service Factor: 1.15

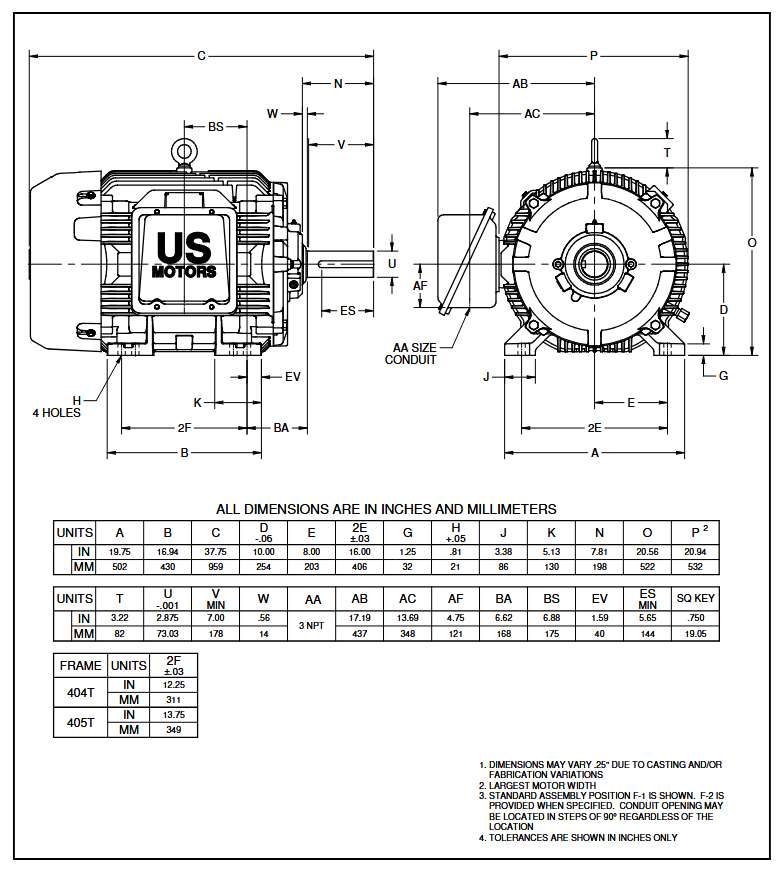

• Frame: 405T

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Mounting: Rigid — Horizontal Orientation

• Number of Speeds: 1

• Efficiency: 95.4 %

• Power Factor: 0.86

• Insulation Class: F

• IP Rating: IP55

• Rotation: Reversible

• Bearing Type: Ball Bearings (DE 6316-J/C3 / NDE 6216-J/C3)

• Shaft Diameter: 2.875 in

• Shaft Length: 7 in

• Hazardous Location Rating: Class I, Division 2

• Approvals: CSA & CE
