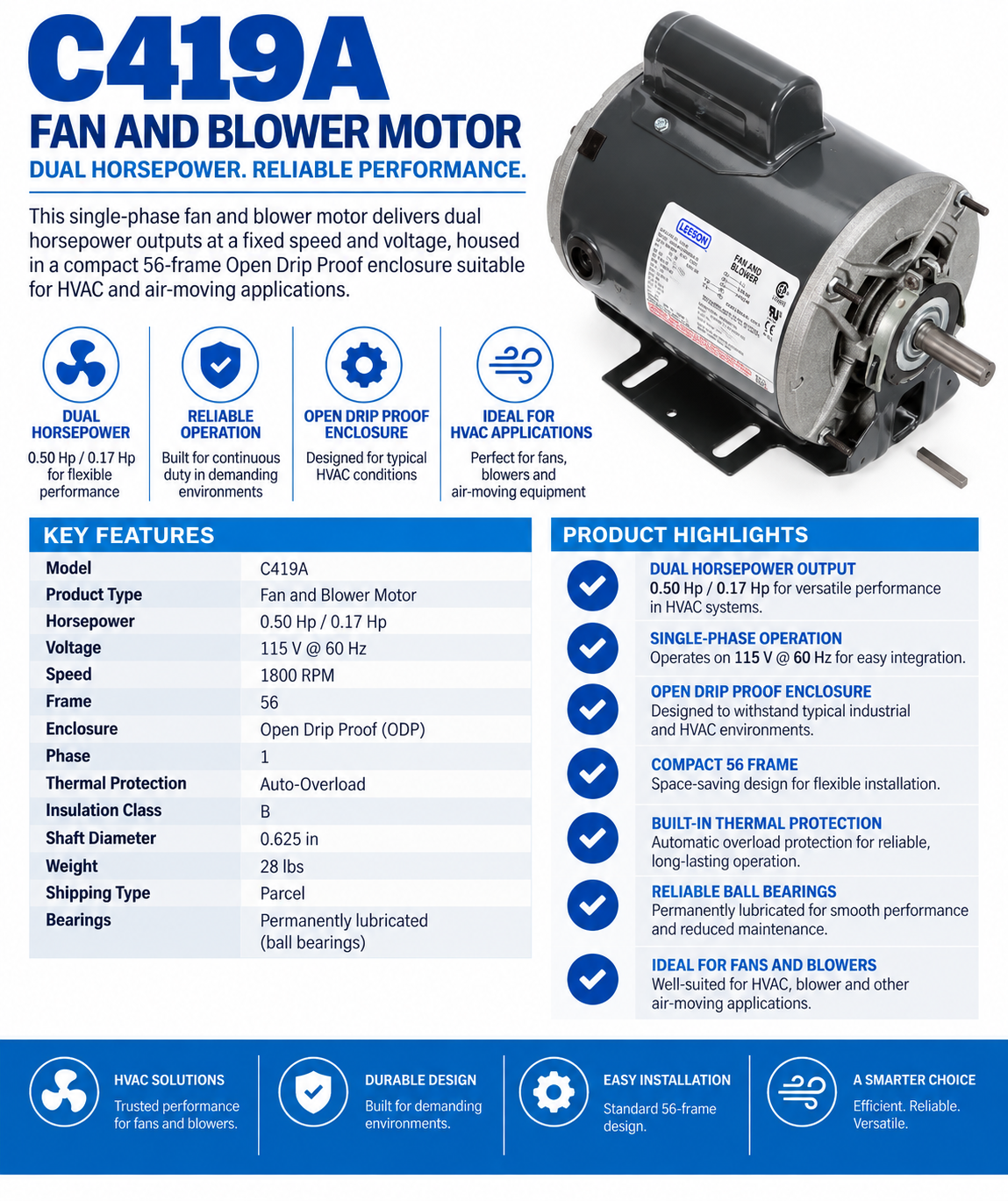

C419A, 0.50 Hp / 0.17 Hp, 1800 RPM, 115 V, 1 Ph, 60 Hz, Open Drip Proof, Frame 56, 056C64DRS40002A1

This single-phase fan and blower motor delivers dual horsepower outputs at a fixed speed and voltage, housed in a compact 56-frame Open Drip Proof enclosure suitable for HVAC and air-moving applications.

KEY FEATURES

• Model: C419A

• Product Type: Fan and Blower Motor

• Horsepower: 0.50 Hp / 0.17 Hp

• Voltage: 115 V @ 60 Hz

• Speed: 1800 RPM

• Frame: 56

• Rotation: Selective Counterclockwise

• Enclosure: Open Drip Proof (ODP)

• Phase: 1

• Thermal Protection: Auto‑Overload

• Insulation Class: B

• Shaft Diameter: 0.625 in

• Weight: 28 lbs

• Shipping Type: Parcel

• Bearings: Permanently lubricated (implied by standard ODP fan motor design)

This motor’s dual horsepower capability and standard 56-frame ODP design make it well-suited for compact HVAC and blower installations where space and reliability are key.
