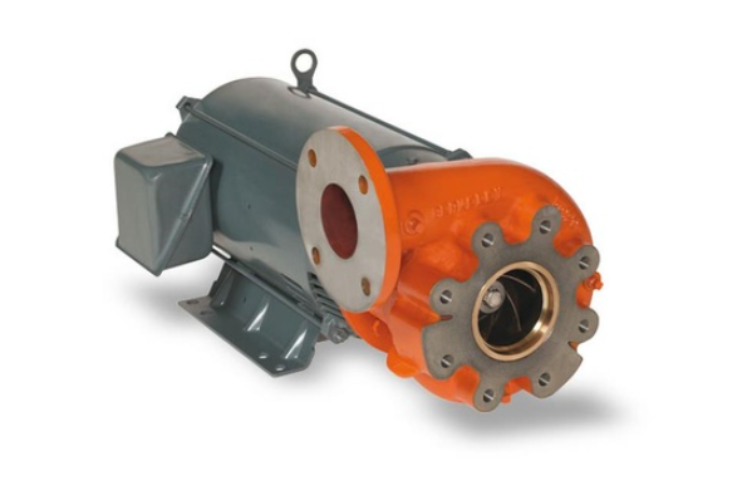

B71949S-575T, Centrifugal Commercial Pump, 15Hp, 1750 RPM, 600V, 3 Phases , 60Hz, 600 GPM

B71949S-575T, Centrifugal Commercial Pump, 15Hp, 1750 RPM, 600V, 3 Phases , 60Hz, 600 GPM

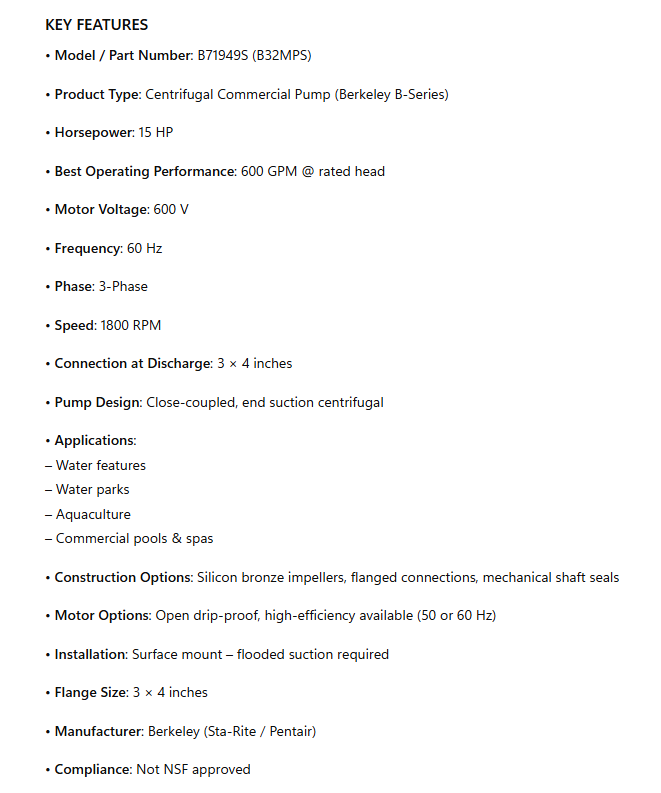

KEY FEATURES

• Model / Part Number: B71949S (B32MPS)

• Product Type: Centrifugal Commercial Pump (Berkeley B-Series)

• Horsepower: 15 HP

• Best Operating Performance: 600 GPM @ rated head

• Motor Voltage: 600 V

• Frequency: 60 Hz

• Phase: 3-Phase

• Speed: 1800 RPM

• Connection at Discharge: 3 × 4 inches

• Pump Design: Close-coupled, end suction centrifugal

• Applications:
– Water features
– Water parks
– Aquaculture
– Commercial pools & spas

• Construction Options: Silicon bronze impellers, flanged connections, mechanical shaft seals

• Motor Options: Open drip-proof, high-efficiency available (50 or 60 Hz)

• Installation: Surface mount – flooded suction required

• Flange Size: 3 × 4 inches

• Compliance: Not NSF approved
