E-Motor Nations | SKU :
EMN-017821
B387, Marathon, 056S17D7202, 1/3-1/6Hp, 1800 Rpm, Frame:56, 115 Volts, DP
Prix habituel
$359.00
Prix unitaire
/
Indisponible
B387, Marathon, 056S17D7202, 1/3-1/6Hp, 1800 Rpm, Frame:56, 115 Volts, DP est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
B387, Marathon, 056S17D7202, 1/3-1/6Hp, 1800 Rpm, Frame:56, 115 Vol...
Prix habituel
$359.00
Prix unitaire
/
Indisponible
Description
Description

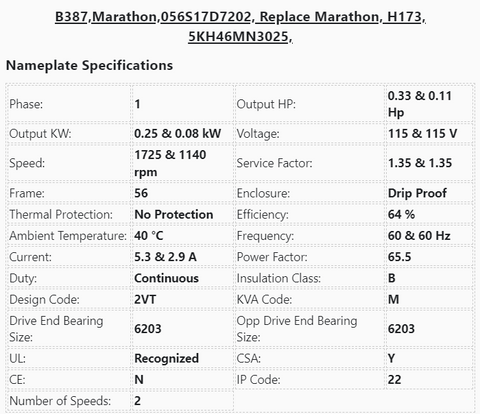

B387,Marathon,056S17D7202, Replace Marathon, H173, 5KH46MN3025,
Nameplate Specifications
| Phase: | 1 | Output HP: | 0.33 & 0.11 Hp |
| Output KW: | 0.25 & 0.08 kW | Voltage: | 115 & 115 V |
| Speed: | 1725 & 1140 rpm | Service Factor: | 1.35 & 1.35 |
| Frame: | 56 | Enclosure: | Drip Proof |
| Thermal Protection: | No Protection | Efficiency: | 64 % |
| Ambient Temperature: | 40 °C | Frequency: | 60 & 60 Hz |
| Current: | 5.3 & 2.9 A | Power Factor: | 65.5 |
| Duty: | Continuous | Insulation Class: | B |
| Design Code: | 2VT | KVA Code: | M |
| Drive End Bearing Size: | 6203 | Opp Drive End Bearing Size: | 6203 |
| UL: | Recognized | CSA: | Y |
| CE: | N | IP Code: | 22 |
| Number of Speeds: | 2 |

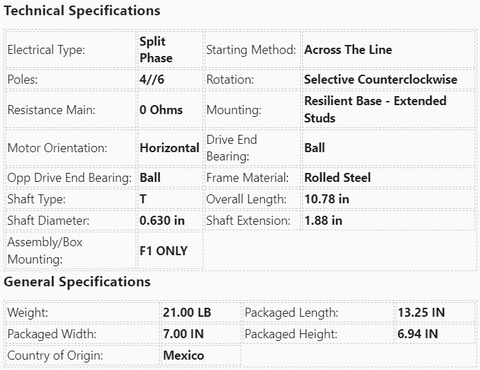

Technical Specifications
| Electrical Type: | Split Phase | Starting Method: | Across The Line |
| Poles: | 4//6 | Rotation: | Selective Counterclockwise |
| Resistance Main: | 0 Ohms | Mounting: | Resilient Base - Extended Studs |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | T | Overall Length: | 10.78 in |
| Shaft Diameter: | 0.630 in | Shaft Extension: | 1.88 in |
| Assembly/Box Mounting: | F1 ONLY |
General Specifications
| Weight: | 21.00 LB | Packaged Length: | 13.25 IN |
| Packaged Width: | 7.00 IN | Packaged Height: | 6.94 IN |
| Country of Origin: | Mexico |

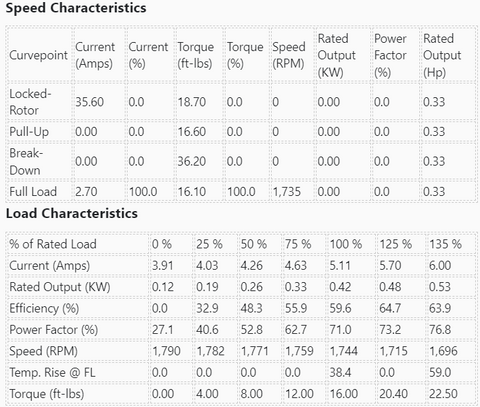

Speed Characteristics
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
| Locked-Rotor | 35.60 | 0.0 | 18.70 | 0.0 | 0 | 0.00 | 0.0 | 0.33 |
| Pull-Up | 0.00 | 0.0 | 16.60 | 0.0 | 0 | 0.00 | 0.0 | 0.33 |
| Break-Down | 0.00 | 0.0 | 36.20 | 0.0 | 0 | 0.00 | 0.0 | 0.33 |
| Full Load | 2.70 | 100.0 | 16.10 | 100.0 | 1,735 | 0.00 | 0.0 | 0.33 |
Load Characteristics
| % of Rated Load | 0 % | 25 % | 50 % | 75 % | 100 % | 125 % | 135 % |
| Current (Amps) | 3.91 | 4.03 | 4.26 | 4.63 | 5.11 | 5.70 | 6.00 |
| Rated Output (KW) | 0.12 | 0.19 | 0.26 | 0.33 | 0.42 | 0.48 | 0.53 |
| Efficiency (%) | 0.0 | 32.9 | 48.3 | 55.9 | 59.6 | 64.7 | 63.9 |
| Power Factor (%) | 27.1 | 40.6 | 52.8 | 62.7 | 71.0 | 73.2 | 76.8 |
| Speed (RPM) | 1,790 | 1,782 | 1,771 | 1,759 | 1,744 | 1,715 | 1,696 |
| Temp. Rise @ FL | 0.0 | 0.0 | 0.0 | 0.0 | 38.4 | 0.0 | 59.0 |
| Torque (ft-lbs) | 0.00 | 4.00 | 8.00 | 12.00 | 16.00 | 20.40 | 22.50 |
