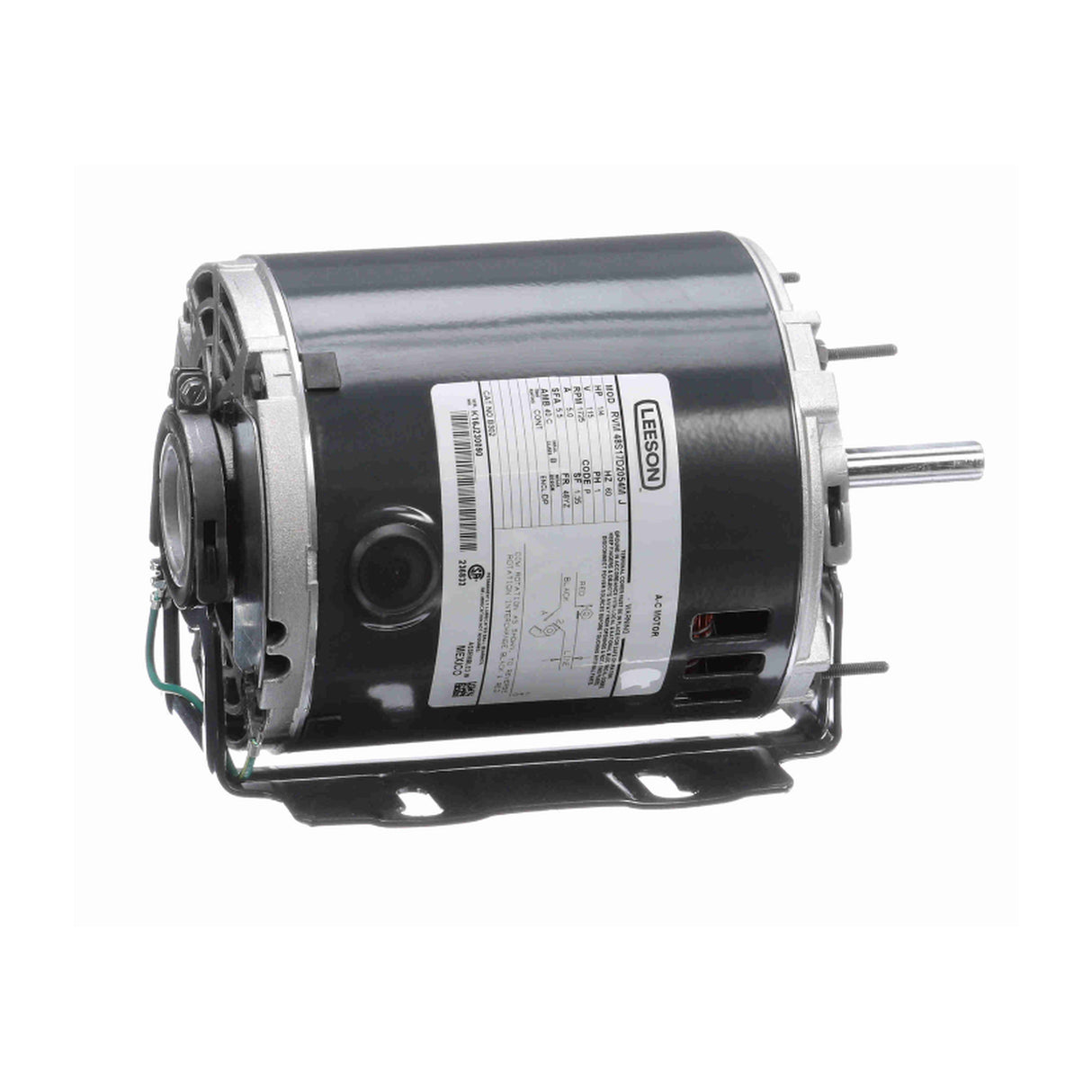

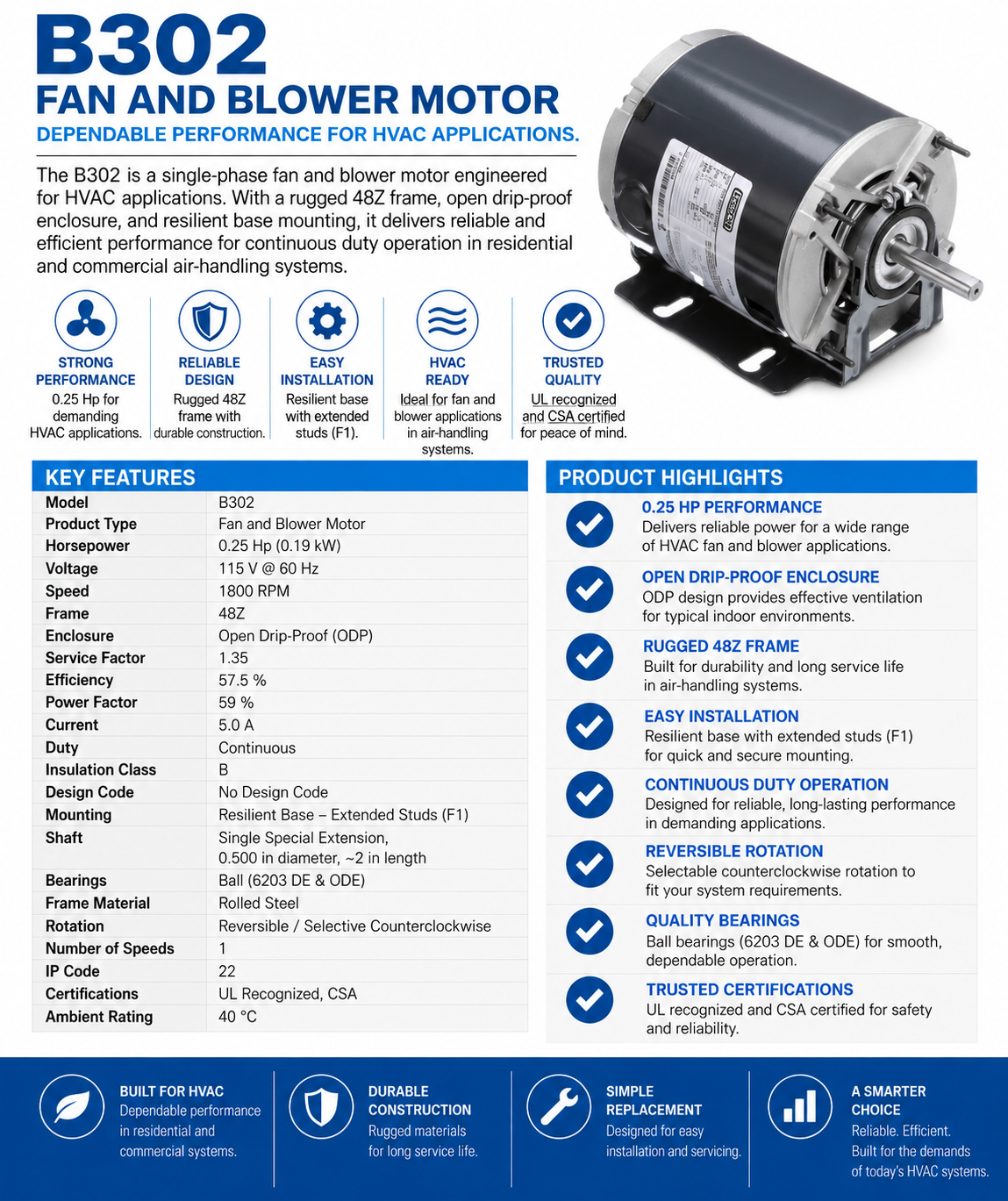

B302, 0.25Hp, 1800 RPM, 115 V, 1 Ph, 60 Hz, ODP (Drip‑Proof), Frame 48Z, 48S17D2054

This single‑phase fan and blower motor is engineered for HVAC applications, delivering 0.25 Hp at 1800 RPM with a resilient base and open drip‑proof enclosure for continuous duty operation.

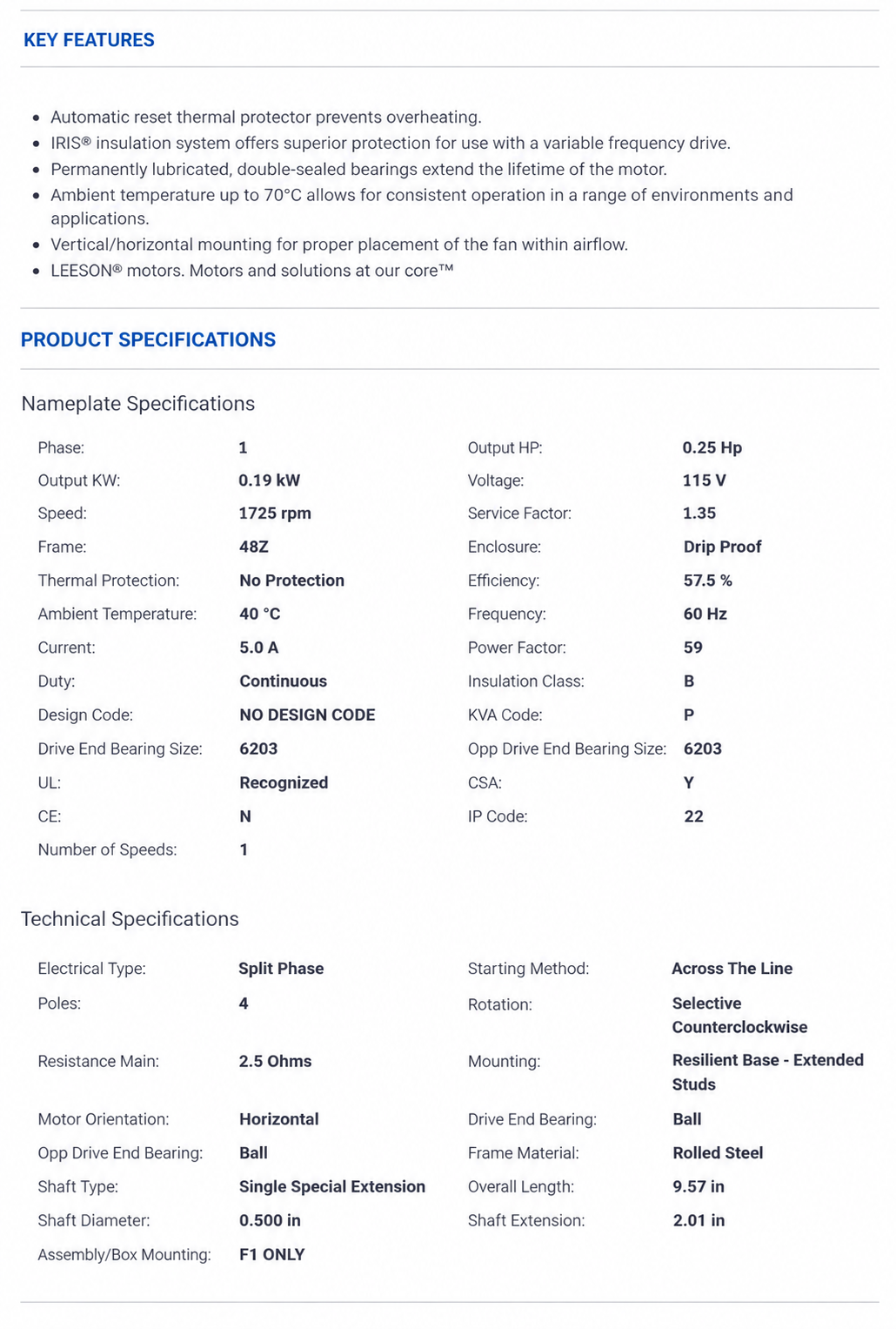

KEY FEATURES

• Model: B302

• Product Type: Fan and Blower Motor

• Horsepower: 0.25 Hp (0.19 kW)

• Voltage: 115 V @ 60 Hz

• Speed: 1800 RPM

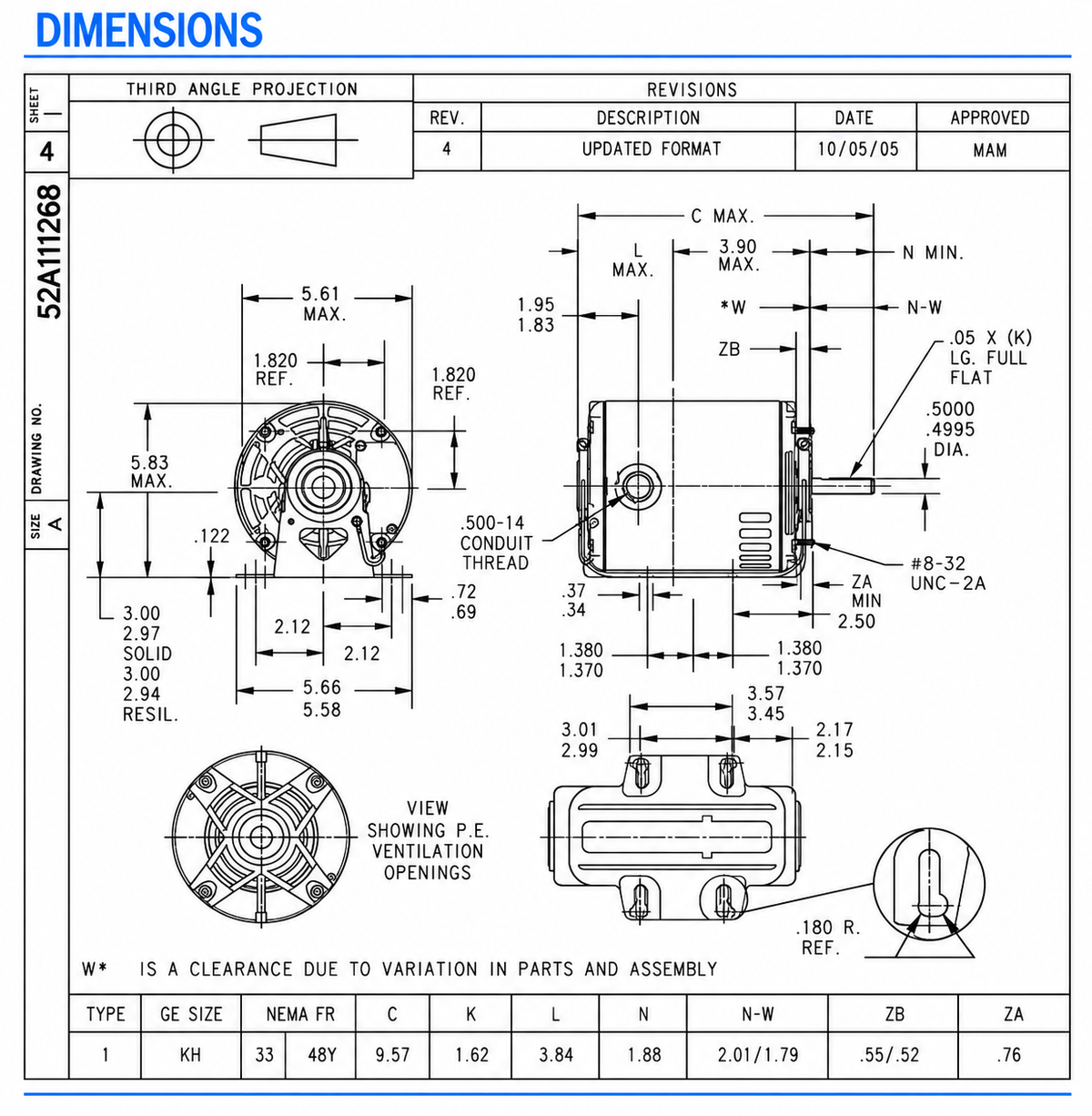

• Frame: 48Z

• Enclosure: Open Drip‑Proof (ODP)

• Service Factor: 1.35

• Efficiency: 57.5 %

• Power Factor: 59 %

• Current: 5.0 A

• Duty: Continuous

• Insulation Class: B

• Design Code: No Design Code

• Mounting: Resilient Base – Extended Studs (F1)

• Shaft: Single Special Extension, 0.500 in diameter, ~2 in length

• Bearings: Ball (6203 DE & ODE)

• Frame Material: Rolled Steel

• Rotation: Reversible / Selective Counterclockwise

• Number of Speeds: 1

• IP Code: 22

• Certifications: UL Recognized, CSA

• Ambient Rating: 40 °C
