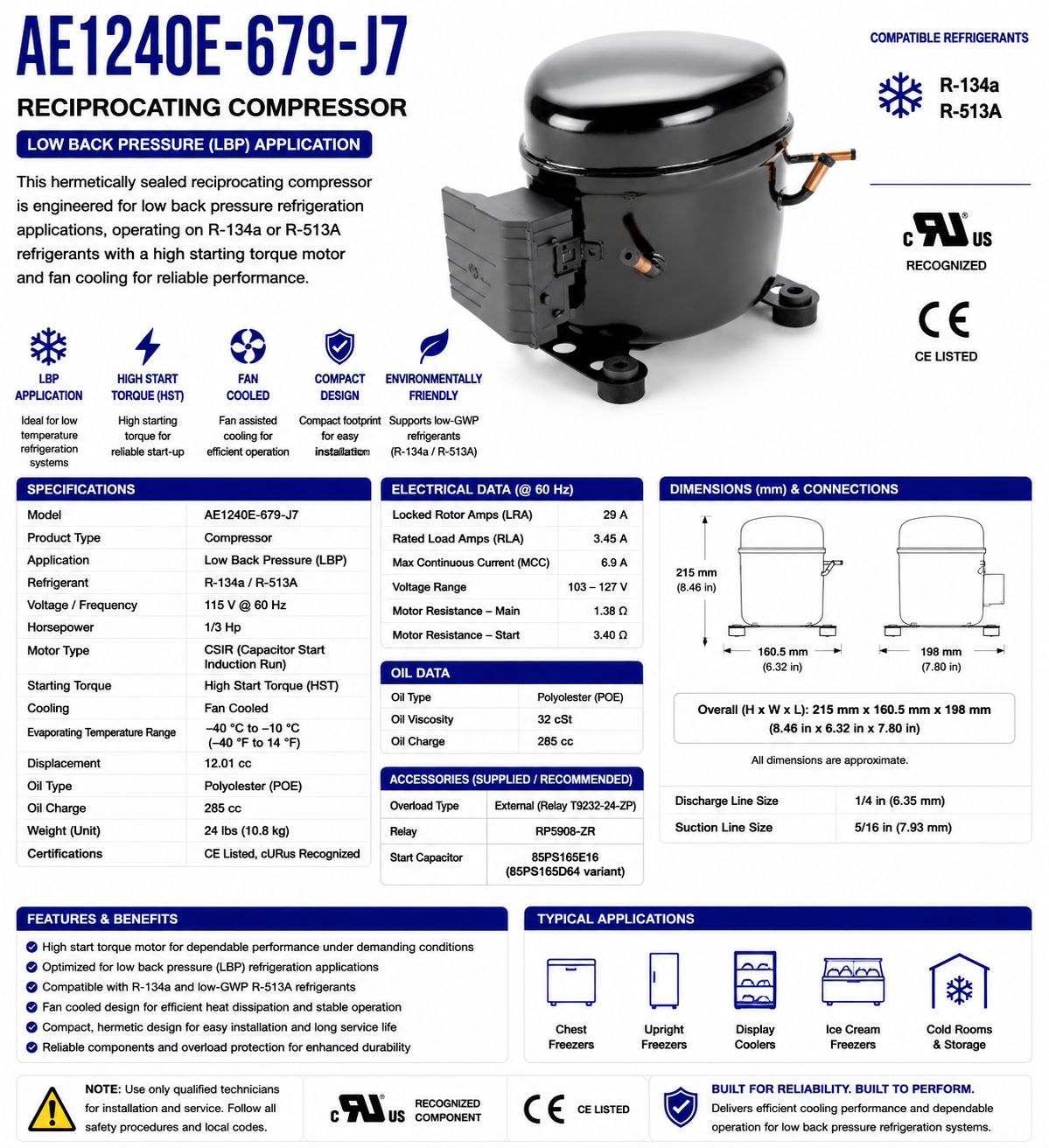

AE1240E‑679‑J7, 1/3 Hp, Reciprocating Compressor, 115 V , 1 Ph,  60 Hz, LBP, AE2413Y‑AA1B

This hermetically sealed reciprocating compressor is engineered for low back pressure refrigeration applications, operating on R‑134a or R‑513A refrigerants with a high starting torque motor and fan cooling.

KEY FEATURES

• Model: AE1240E‑679‑J7

• Product Type: Compressor

• Application: Low Back Pressure (LBP)

• Refrigerant: R‑134a / R‑513A

• Voltage/Frequency: 115 V @ 60 Hz

• Horsepower: 1/3 Hp

• Motor Type: CSIR (Capacitor Start Induction Run)

• Starting Torque: High Start Torque (HST)

• Cooling: Fan cooled

• Evaporating Temperature Range: –40 °C to –10 °C (–40 °F to 14 °F)

• Displacement: 12.01 cc

• Oil Type: Polyolester (POE)

• Oil Charge: 285 cc

• Locked Rotor Amps (LRA): 29 A

• Rated Load Amps (RLA): 3.45 A

• Max Continuous Current (MCC): 6.9 A

• Motor Resistance – Main: 1.38 Ω

• Motor Resistance – Start: 3.4 Ω

• Overload Type: External (relay T9232‑24‑ZP)

• Relay: RP5908‑ZR

• Start Capacitor: 85PS165E16 (or 85PS165D64 variant)

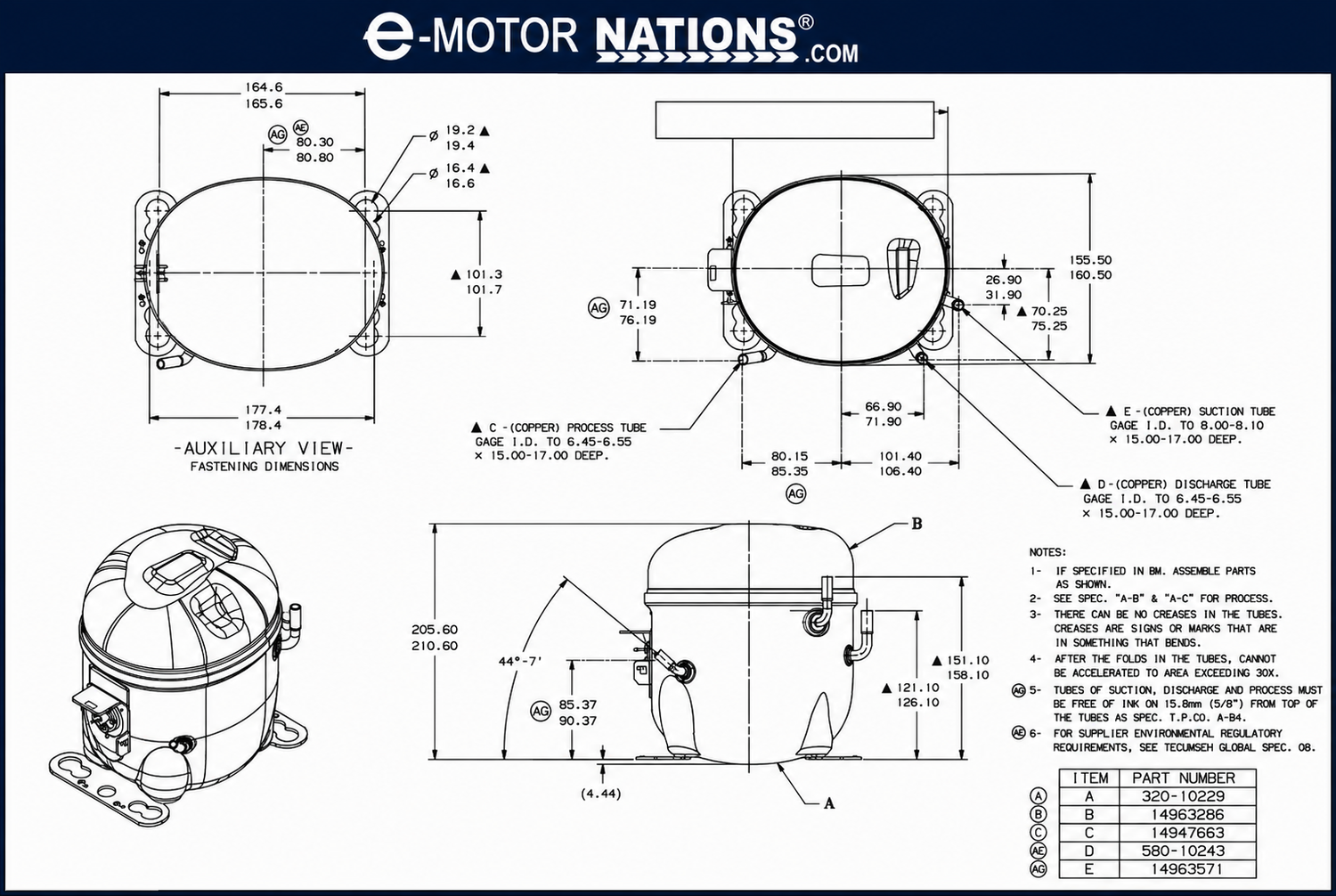

• Dimensions (unit): Height 215 mm, Width 160.5 mm, Length 198 mm

• Discharge Line Size: 1/4 in (6.35 mm)

• Suction Line Size: 5/16 in (7.93 mm)

• Weight (unit): 24 lbs (10.8 kg)

• Certifications: CE Listed, cURus Recognized
