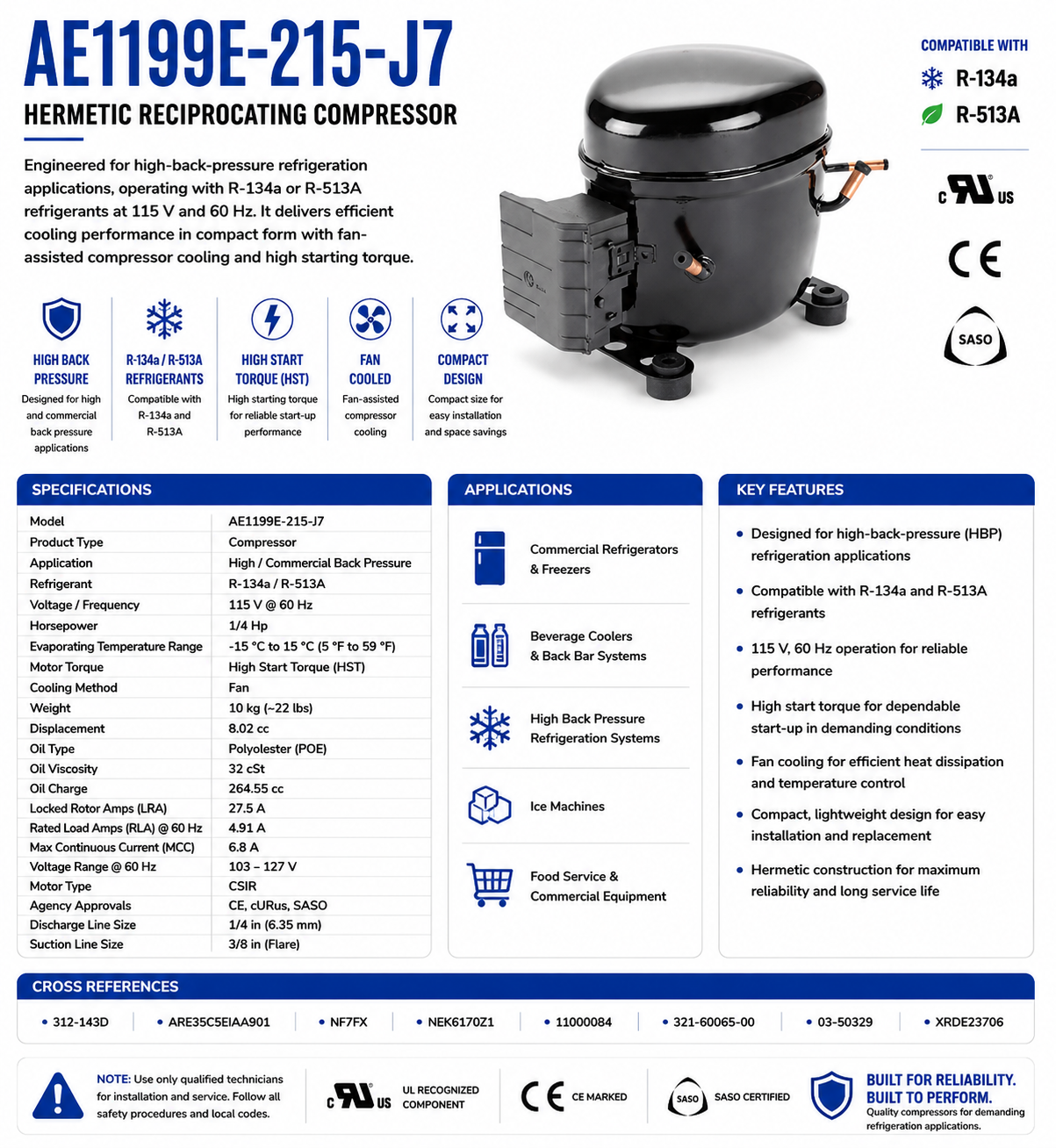

AE1199E‑215‑J7, Reciprocating Compressor, 1/4 Hp, 115 V, 60 Hz, AE4430Y-AA1A

This hermetic reciprocating compressor is engineered for high‑back‑pressure refrigeration applications, operating with R‑134a or R‑513A refrigerants at 115 V and 60 Hz. It delivers efficient cooling performance in compact form with fan‑assisted compressor cooling and high starting torque.

KEY FEATURES

• Model: AE1199E‑215‑J7

• Product Type: Compressor

• Application: High/Commercial Back Pressure

• Refrigerant: R‑134a / R‑513A

• Voltage/Frequency: 115 V @ 60 Hz

• Horsepower: 1/4 Hp

• Evaporating Temperature Range: ‑15 °C to 15 °C (5 °F to 59 °F)

• Motor Torque: High Start Torque (HST)

• Cooling Method: Fan

• Weight: 10 kg (~22 lbs)

• Displacement: 8.02 cc

• Oil Type: Polyolester (POE)

• Oil Viscosity: 32 cSt

• Oil Charge: 264.55 cc

• Locked Rotor Amps (LRA): 27.5 A

• Rated Load Amps (RLA) @ 60 Hz: 4.91 A

• Max Continuous Current (MCC): 6.8 A

• Voltage Range @ 60 Hz: 103–127 V

• Motor Type: CSIR

• Agency Approvals: CE, cURus, SASO

• Discharge Line Size: 1/4 in (6.35 mm)

• Suction Line Size: 3/8 in (Flare)

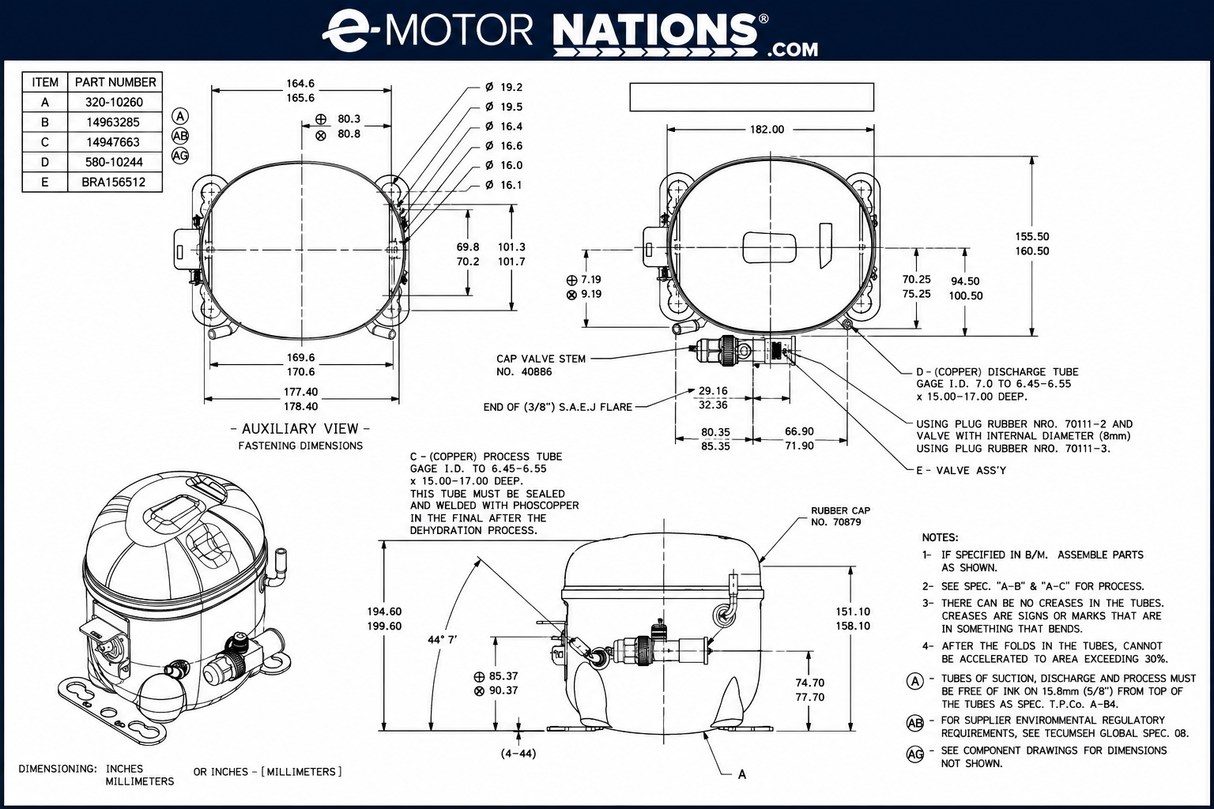

• Dimensions (H × W × L): 204 mm × 160.5 mm × 192.9 mm
