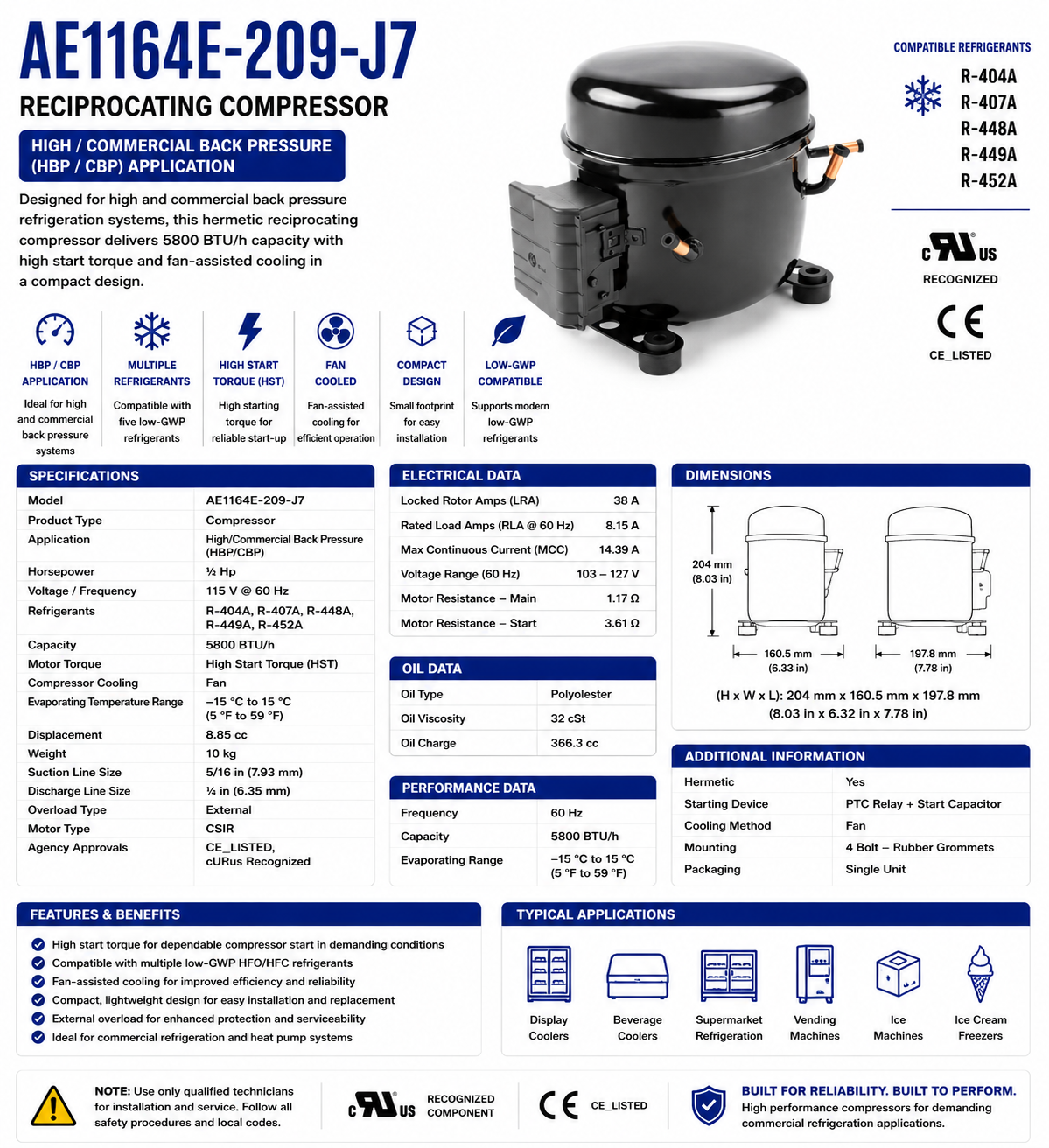

AE1164E‑209‑J7, Reciprocating Compressor, ½ Hp, 115 V @ 60 Hz, High Start Torque, AE4450Z‑AA1A

This hermetic reciprocating compressor is engineered for high and commercial back pressure refrigeration applications, offering 5800 BTU/h capacity and compatibility with multiple low‑GWP refrigerants. It features a high‑start‑torque motor and fan‑assisted cooling in a compact design.

KEY FEATURES

• Model: AE1164E‑209‑J7

• Product Type: Compressor

• Application: High/Commercial Back Pressure (HBP/CBP)

• Horsepower: ½ Hp

• Voltage: 115 V @ 60 Hz

• Refrigerants: R‑404A, R‑407A, R‑448A, R‑449A, R‑452A

• Capacity: 5800 BTU/h

• Motor Torque: High Start Torque (HST)

• Compressor Cooling: Fan

• Evaporating Temperature Range: –15 °C to 15 °C (5 °F to 59 °F)

• Weight: 10 kg

• Displacement: 8.85 cc

• Oil Type: Polyolester

• Oil Viscosity: 32 cSt

• Oil Charge: 366.3 cc

• Locked Rotor Amps (LRA): 38 A

• Rated Load Amps (RLA @ 60 Hz): 8.15 A

• Voltage Range (60 Hz): 103–127 V

• Max Continuous Current (MCC): 14.39 A

• Motor Resistance – Main: 1.17 Ω

• Motor Resistance – Start: 3.61 Ω

• Motor Type: CSIR

• Suction Line Size: 5/16 in (7.93 mm)

• Discharge Line Size: ¼ in (6.35 mm)

• Overload Type: External

• Agency Approvals: CE_LISTED, cURus Recognized

This compressor supports a broad range of low‑GWP refrigerants and delivers robust starting torque, making it well‑suited for demanding refrigeration systems.
