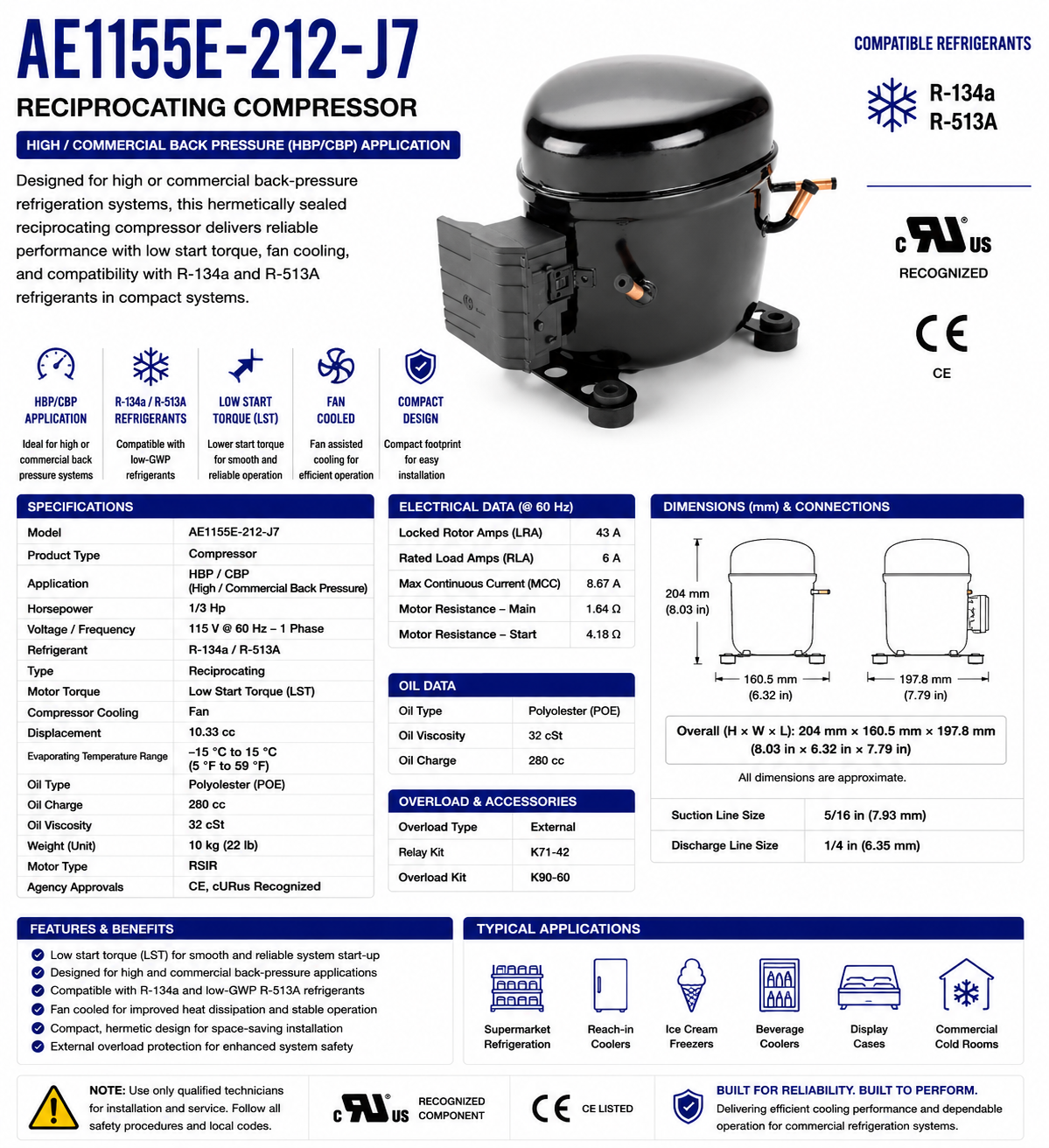

AE1155E‑212‑J7, Reciprocating Compressor, 1/3 Hp, 115 V, 1 Ph, 60 Hz, AE3440Y‑AA1A

This reciprocating refrigeration compressor is designed for high or commercial back‑pressure applications, offering compatibility with R‑134a and R‑513A refrigerants and low starting torque for reliable performance in compact systems.

KEY FEATURES

• Model: AE1155E‑212‑J7

• Product Type: Compressor

• Horsepower: 1/3 Hp

• Voltage: 115 V @ 60 Hz – 1 Phase

• Refrigerant: R‑134a / R‑513A

• Application: HBP/CBP (High/Commercial Back Pressure)

• Type: Reciprocating

• Motor Torque: Low Start Torque (LST)

• Compressor Cooling: Fan

• Displacement: 10.33 cc

• Evaporating Temperature Range: –15 °C to 15 °C (5 °F to 59 °F)

• Oil Type: Polyolester (POE)

• Oil Charge: 280 cc

• Viscosity: 32 cSt

• Locked Rotor Amps (LRA): 43 A

• Rated Load Amps (RLA): 6 A

• Max Continuous Current (MCC): 8.67 A

• Motor Type: RSIR

• Motor Resistance – Main: 1.64 Ω

• Motor Resistance – Start: 4.18 Ω

• Weight: 10 kg

• Dimensions (H×W×L): 204 mm × 160.5 mm × 197.8 mm

• Suction Line Size: 5/16 in (7.93 mm)

• Discharge Line Size: 1/4 in (6.35 mm)

• Overload Type: External (relay kit K71‑42, overload kit K90‑60)

• Agency Approvals: CE, cURus Recognized
