1 5
E-Motor Nations  |  SKU : EMN-019344

9959, (KBVF-23D) Hybrid AC Drive 1/2Hp 2.4A 115/230V 1PH Input 230V 3PH output IP20 Chassis

$361.48
shipping

Estimation des frais de livraison

Description

9959, (KBVF-23D) Hybrid AC Drive 1/2Hp 2.4A 115/230V 1PH Input 230V 3PH output IP20 Chassis

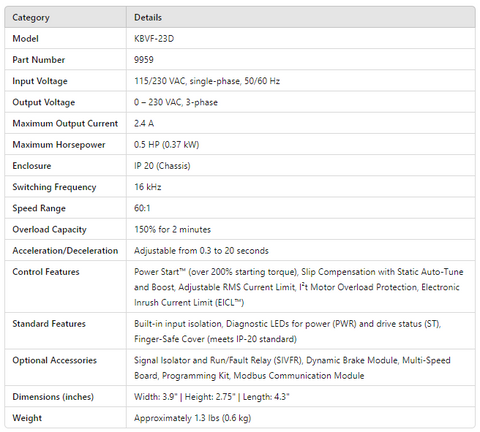

Category Details
Model KBVF-23D
Part Number 9959
Input Voltage 115/230 VAC, single-phase, 50/60 Hz
Output Voltage 0 – 230 VAC, 3-phase
Maximum Output Current 2.4 A
Maximum Horsepower 0.5 HP (0.37 kW)
Enclosure IP 20 (Chassis)
Switching Frequency 16 kHz
Speed Range 60:1
Overload Capacity 150% for 2 minutes
Acceleration/Deceleration Adjustable from 0.3 to 20 seconds
Control Features
Power Start™ (over 200% starting torque), Slip Compensation with Static Auto-Tune and Boost, Adjustable RMS Current Limit, I²t Motor Overload Protection, Electronic Inrush Current Limit (EICL™)
Standard Features
Built-in input isolation, Diagnostic LEDs for power (PWR) and drive status (ST), Finger-Safe Cover (meets IP-20 standard)
Optional Accessories
Signal Isolator and Run/Fault Relay (SIVFR), Dynamic Brake Module, Multi-Speed Board, Programming Kit, Modbus Communication Module
Dimensions (inches) Width: 3.9" | Height: 2.75" | Length: 4.3"
Weight Approximately 1.3 lbs (0.6 kg)
