9940, (KBCC-255) SCR DC Drive 5Hp 26A 208/230VAC 1PH Input 180VDC Output Non-Reversing Chassis

E-Motor Nations

$734.06

9940, (KBCC-255) SCR DC Drive 5Hp 26A 208/230VAC 1PH Input 180VDC Output Non-Reversing Chassis

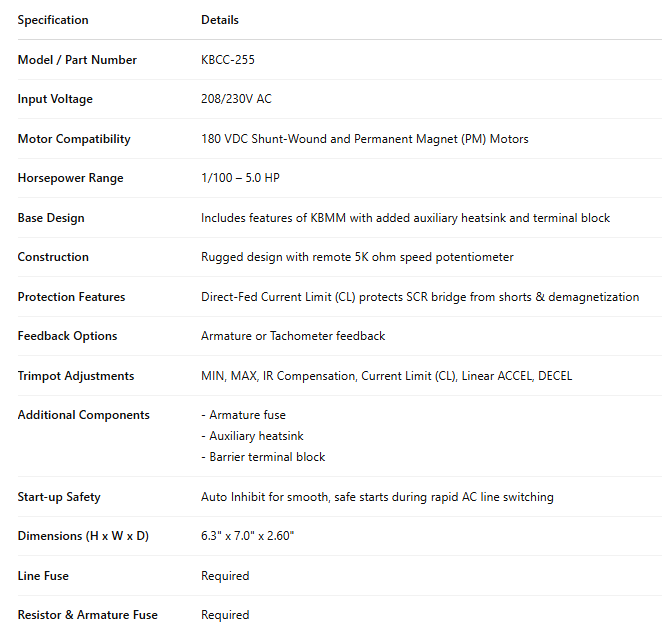

Specification	Details
Model / Part Number	KBCC-255
Input Voltage	208/230V AC
Motor Compatibility	180 VDC Shunt-Wound and Permanent Magnet (PM) Motors
Horsepower Range	1/100 – 5.0 HP
Base Design	Includes features of KBMM with added auxiliary heatsink and terminal block
Construction	Rugged design with remote 5K ohm speed potentiometer
Protection Features	Direct-Fed Current Limit (CL) protects SCR bridge from shorts & demagnetization
Feedback Options	Armature or Tachometer feedback
Trimpot Adjustments	MIN, MAX, IR Compensation, Current Limit (CL), Linear ACCEL, DECEL
Additional Components	- Armature fuse - Auxiliary heatsink - Barrier terminal block
Start-up Safety	Auto Inhibit for smooth, safe starts during rapid AC line switching

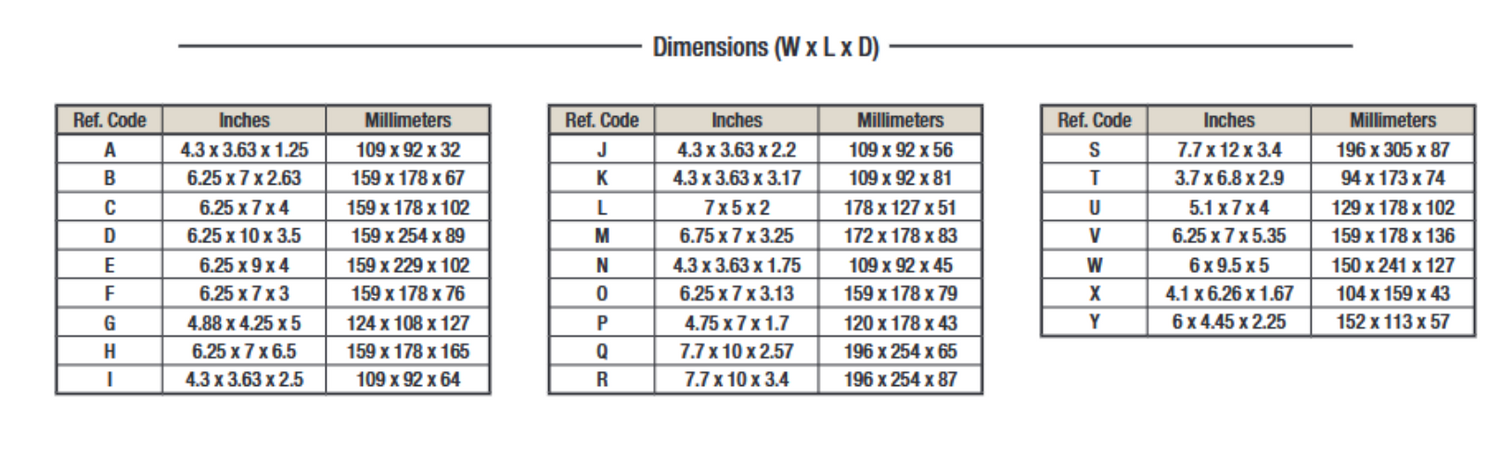

Dimensions (H x W x D)	6.3" x 7.0" x 2.60"
Line Fuse	Required
Resistor & Armature Fuse	Required

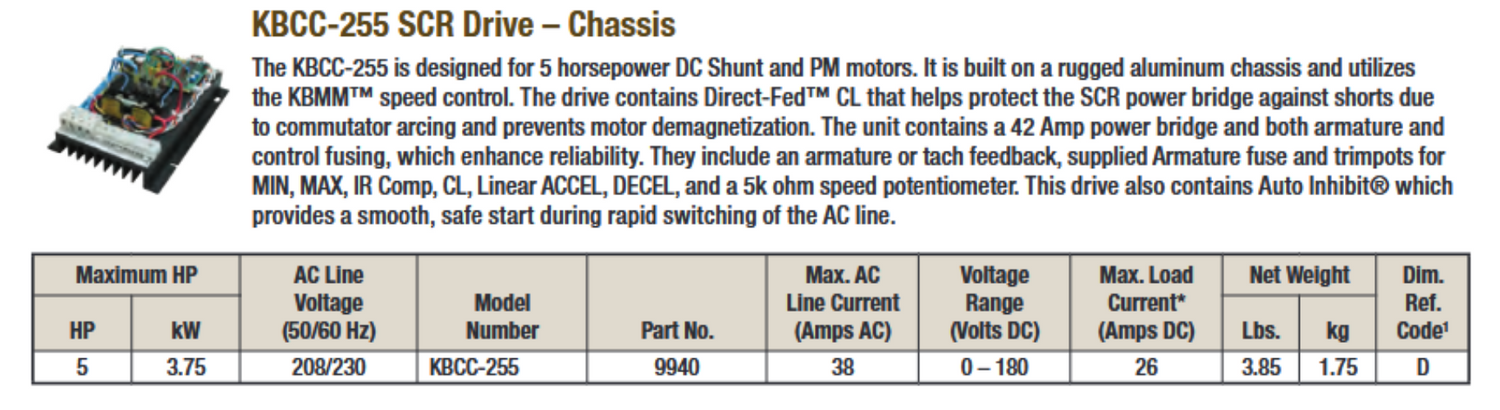

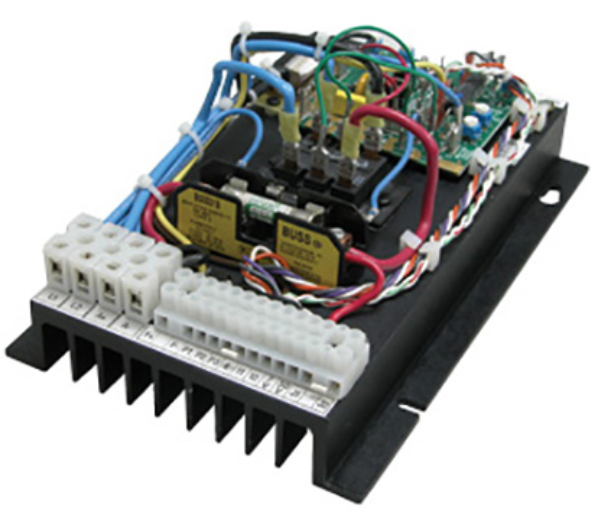

KBCC-255 SCR Drive – Chassis

The KBCC-255 is designed for 5 horsepower DC Shunt and PM motors. It is built on a rugged aluminum chassis and utilizes
the KBMM™ speed control. The drive contains Direct-Fed™ CL that helps protect the SCR power bridge against shorts due
to commutator arcing and prevents motor demagnetization. The unit contains a 42 Amp power bridge and both armature and
control fusing, which enhance reliability. They include an armature or tach feedback, supplied Armature fuse and trimpots for
MIN, MAX, IR Comp, CL, Linear ACCEL, DECEL, and a 5k ohm speed potentiometer. This drive also contains Auto Inhibit® which
provides a smooth, safe start during rapid switching of the AC line.
