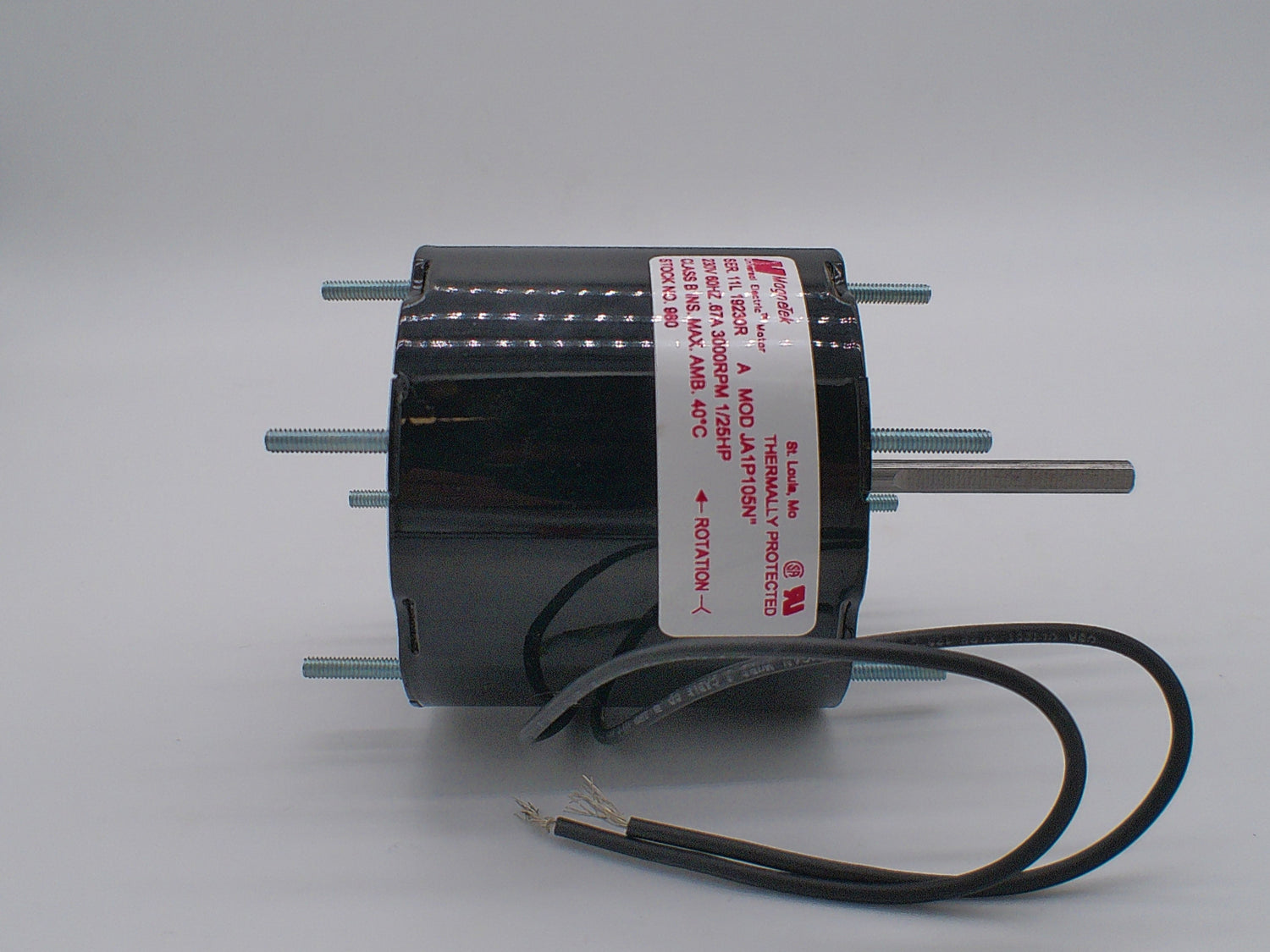

JA1P105N, Magnetek, 1/25Hp, 3000 Rpm, 230 Volts, Frame:3.3, OAO,

JA1P105N, Magnetek

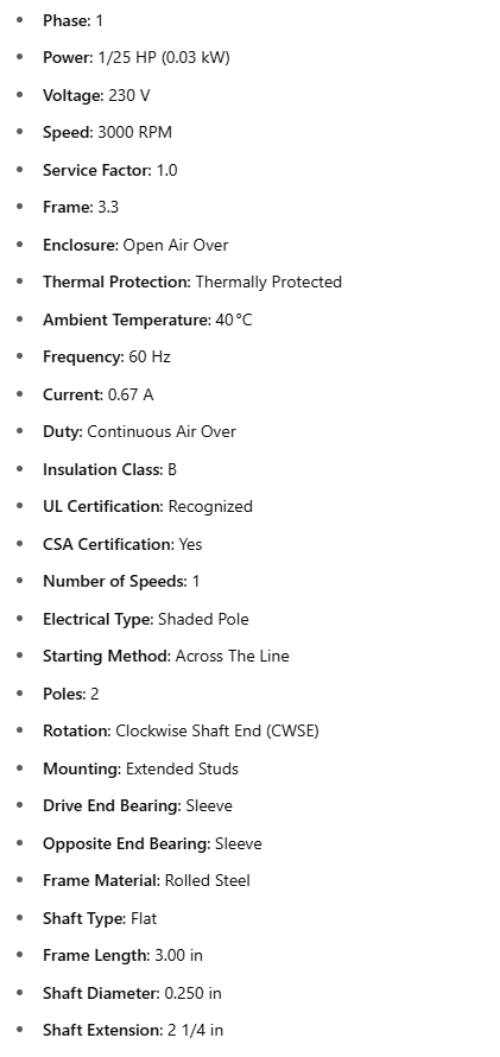

• Phase: 1

• Power: 1/25 HP (0.03 kW)

• Voltage: 230 V

• Speed: 3000 RPM

• Service Factor: 1.0

• Frame: 3.3

• Enclosure: Open Air Over

• Thermal Protection: Thermally Protected

• Ambient Temperature: 40 °C

• Frequency: 60 Hz

• Current: 0.67 A

• Duty: Continuous Air Over

• Insulation Class: B

• UL Certification: Recognized

• CSA Certification: Yes

• Number of Speeds: 1

• Electrical Type: Shaded Pole

• Starting Method: Across The Line

• Poles: 2

• Rotation: Clockwise Shaft End (CWSE)

• Mounting: Extended Studs

• Drive End Bearing: Sleeve

• Opposite End Bearing: Sleeve

• Frame Material: Rolled Steel

• Shaft Type: Flat

• Frame Length: 3.00 in

• Shaft Diameter: 0.250 in

• Shaft Extension: 2 1/4 in
