E-Motor Nations  |  SKU : EMN-019377

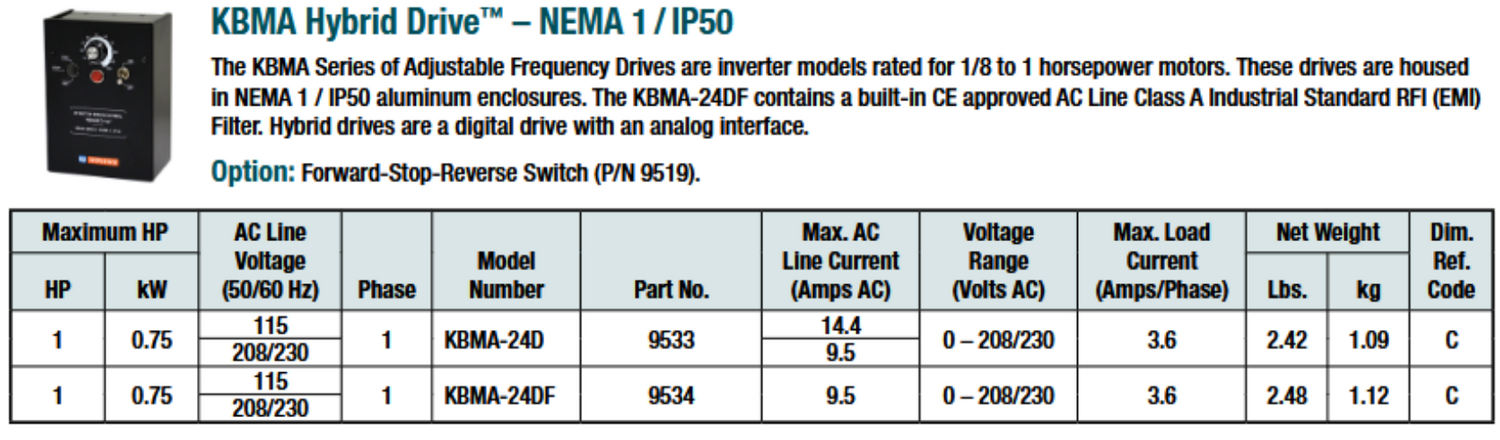

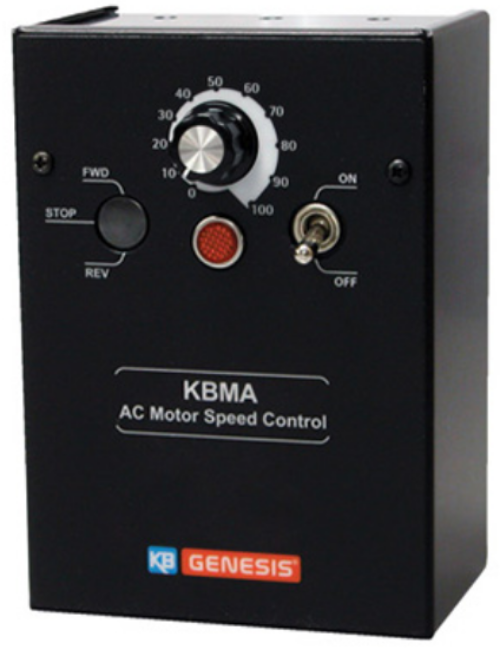

9640, (KBMA-24D w FSR) Hybrid AC Drive 1Hp 3.6A 115/230V 1PH Input 230V 3PH Output NEMA 1 IP50 With FSR Switch

$512.66
shipping

Estimation des frais de livraison

Description

9640, (KBMA-24D w FSR) Hybrid AC Drive 1Hp 3.6A 115/230V 1PH Input 230V 3PH Output NEMA 1 IP50 With FSR Switch

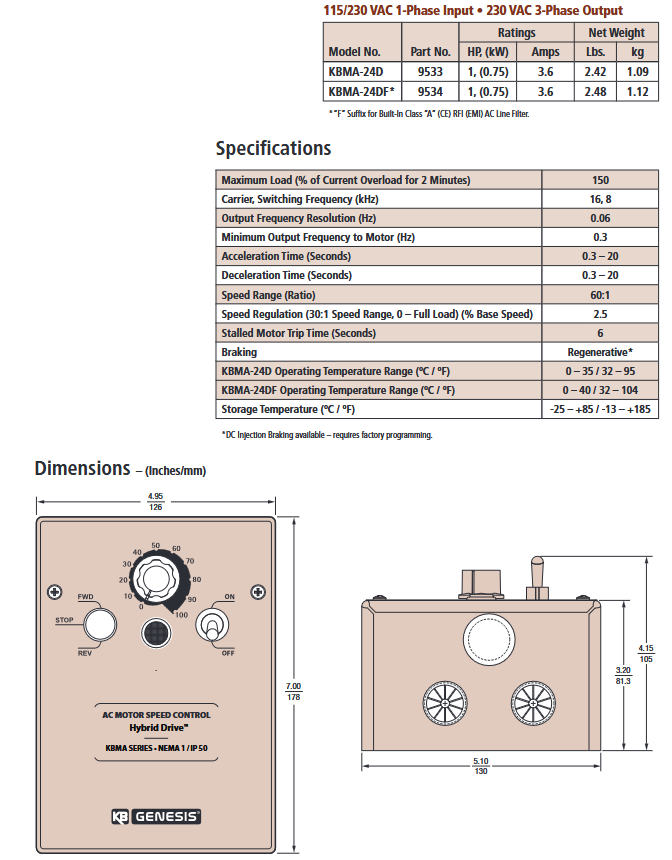

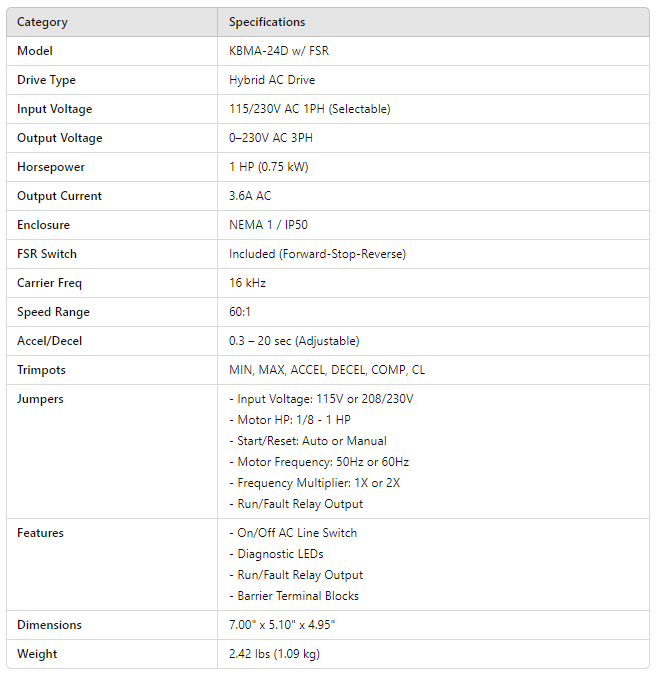

Category Specifications
Model KBMA-24D w/ FSR
Drive Type Hybrid AC Drive
Input Voltage 115/230V AC 1PH (Selectable)
Output Voltage 0–230V AC 3PH
Horsepower 1 HP (0.75 kW)
Output Current 3.6A AC
Enclosure NEMA 1 / IP50
FSR Switch Included (Forward-Stop-Reverse)
Carrier Freq 16 kHz
Speed Range 60:1
Accel/Decel 0.3 – 20 sec (Adjustable)
Trimpots MIN, MAX, ACCEL, DECEL, COMP, CL
Jumpers - Input Voltage: 115V or 208/230V
- Motor HP: 1/8 - 1 HP
- Start/Reset: Auto or Manual
- Motor Frequency: 50Hz or 60Hz
- Frequency Multiplier: 1X or 2X
- Run/Fault Relay Output
Features - On/Off AC Line Switch
- Diagnostic LEDs
- Run/Fault Relay Output
- Barrier Terminal Blocks
Dimensions 7.00" x 5.10" x 4.95"
Weight 2.42 lbs (1.09 kg)
