E-Motor Nations  |  SKU : EMN-019644

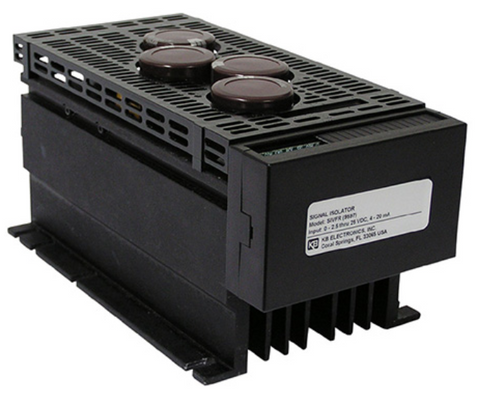

9590, (KBVF-45/SIVFR) Hybrid AC Drive 3Hp 4.6A 460V 3PH Input 460V 3PH Ouput IP20 Chassis W/ SIVFR Signal Input Isolation Run/Fault Output Relay

$736.20
shipping

Estimation des frais de livraison

Description

9590, (KBVF-45/SIVFR) Hybrid AC Drive 3Hp 4.6A 460V 3PH Input 460V 3PH Ouput IP20 Chassis W/ SIVFR Signal Input Isolation Run/Fault Output Relay

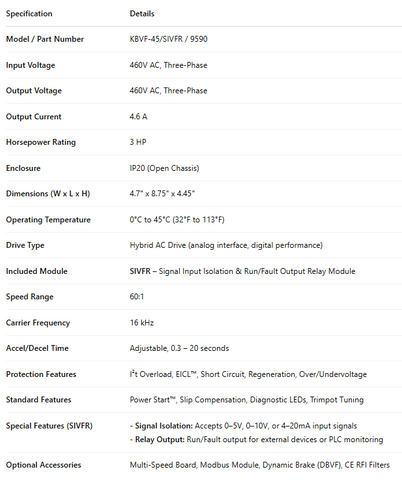

Specification Details
Model / Part Number KBVF-45/SIVFR / 9590
Input Voltage 460V AC, Three-Phase
Output Voltage 460V AC, Three-Phase
Output Current 4.6 A
Horsepower Rating 3 HP
Enclosure IP20 (Open Chassis)
Dimensions (W x L x H) 4.7" x 8.75" x 4.45"
Operating Temperature 0°C to 45°C (32°F to 113°F)
Drive Type Hybrid AC Drive (analog interface, digital performance)
Included Module SIVFR – Signal Input Isolation & Run/Fault Output Relay Module
Speed Range 60:1
Carrier Frequency 16 kHz
Accel/Decel Time Adjustable, 0.3 – 20 seconds
Protection Features I²t Overload, EICL™, Short Circuit, Regeneration, Over/Undervoltage
Standard Features Power Start™, Slip Compensation, Diagnostic LEDs, Trimpot Tuning
Special Features (SIVFR) - Signal Isolation: Accepts 0–5V, 0–10V, or 4–20mA input signals
- Relay Output: Run/Fault output for external devices or PLC monitoring
Optional Accessories Multi-Speed Board, Modbus Module, Dynamic Brake (DBVF), CE RFI Filters

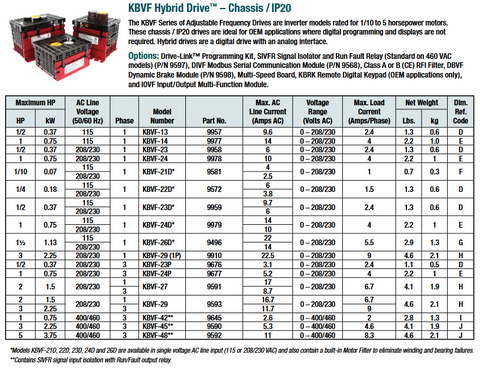

KBVF Hybrid Drive™ – Chassis / IP20

The KBVF Series of Adjustable Frequency Drives are inverter models rated for 1/10 to 5 horsepower motors.
These chassis / IP20 drives are ideal for OEM applications where digital programming and displays are not
required. Hybrid drives are a digital drive with an analog interface.

Options:
Drive-Link™ Programming Kit, SIVFR Signal Isolator and Run Fault Relay (Standard on 460 VAC
models) (P/N 9597), DIVF Modbus Serial Communication Module (P/N 9568), Class A or B (CE) RFI Filter, DBVF
Dynamic Brake Module (P/N 9598), Multi-Speed Board, KBRK Remote Digital Keypad (OEM applications only),
and IOVF Input/Output Multi-Function Module.
