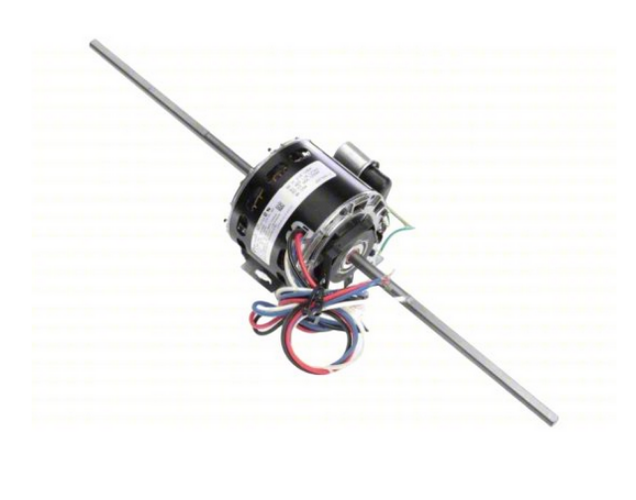

953A, OEM Replacement Motor, 1/15,1/45,1/60Hp, 1 Ph, 60 Hz, 115 V, 1100 RPM, 3 Speed, 42 Frame, OPEN
953A, OEM Replacement Motor, 1/15,1/45,1/60Hp, 1 Ph, 60 Hz, 115 V, 1100 RPM, 3 Speed, 42 Frame, OPEN est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
953A, OEM Replacement Motor, 1/15,1/45,1/60Hp, 1 Ph, 60 Hz, 115 V, ...
Description
Description
953A, OEM Replacement Motor, 1/15,1/45,1/60Hp, 1 Ph, 60 Hz, 115 V, 1100 RPM, 3 Speed, 42 Frame, OPEN
Replace US Motors 1090, K048TBD3640013B, K48HXTBD-3640

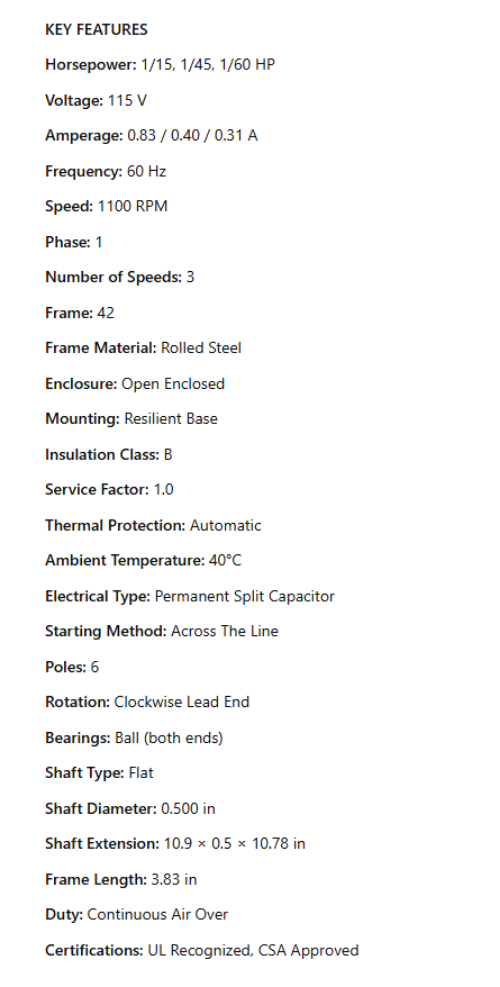

KEY FEATURES
Horsepower: 1/15, 1/45, 1/60 HP
Voltage: 115 V
Amperage: 0.83 / 0.40 / 0.31 A
Frequency: 60 Hz
Speed: 1100 RPM
Phase: 1
Number of Speeds: 3
Frame: 42
Frame Material: Rolled Steel
Enclosure: Open Enclosed
Mounting: Resilient Base
Insulation Class: B
Service Factor: 1.0
Thermal Protection: Automatic
Ambient Temperature: 40°C
Electrical Type: Permanent Split Capacitor
Starting Method: Across The Line
Poles: 6
Rotation: Clockwise Lead End
Bearings: Ball (both ends)
Shaft Type: Flat
Shaft Diameter: 0.500 in
Shaft Extension: 10.9 × 0.5 × 10.78 in
Frame Length: 3.83 in
Duty: Continuous Air Over
Certifications: UL Recognized, CSA Approved
