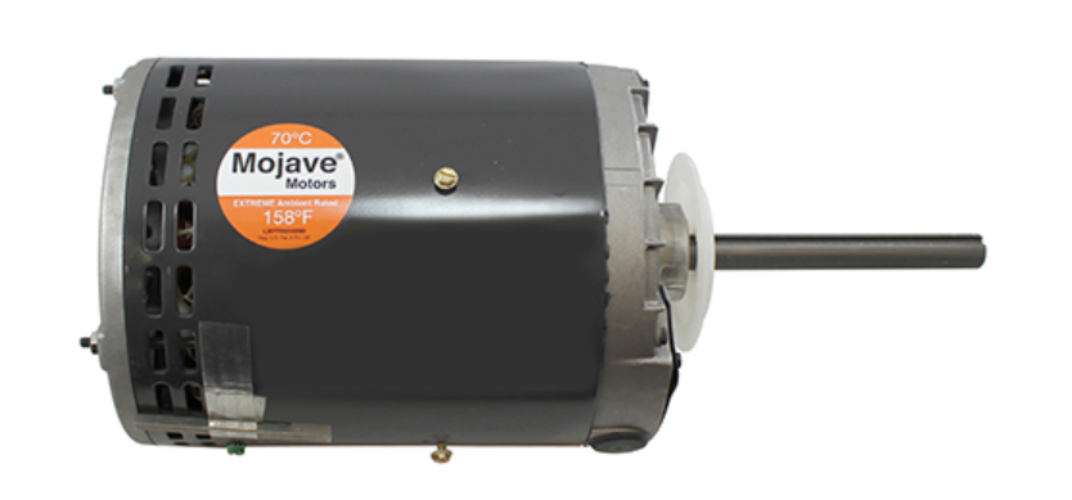

8987H, 2HP, 1140 RPM, 208-230/460V, 3 Phases, 60Hz, Frame 56Z, OAO, P063ABZ1159015B

8987H, 2HP, 1140 RPM, 208-230/460V, 3 Phases, 60Hz, Frame 56Z, OAO, P063ABZ1159015B

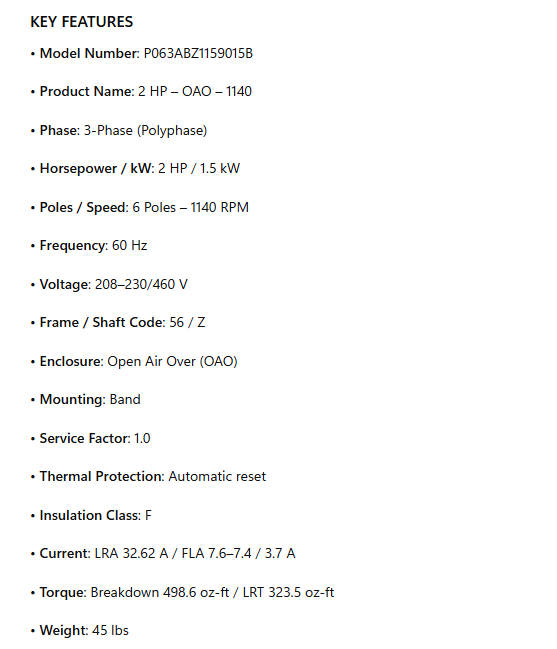

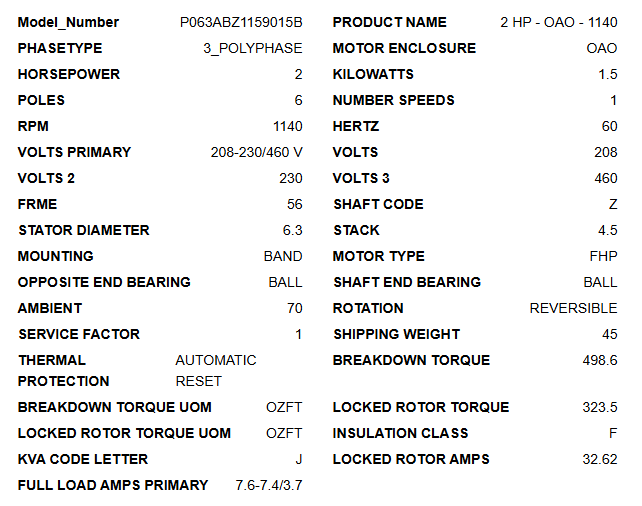

KEY FEATURES

• Model Number: P063ABZ1159015B

• Product Name: 2 HP – OAO – 1140

• Phase: 3-Phase (Polyphase)

• Horsepower / kW: 2 HP / 1.5 kW

• Poles / Speed: 6 Poles – 1140 RPM

• Frequency: 60 Hz

• Voltage: 208–230/460 V

• Frame / Shaft Code: 56 / Z

• Enclosure: Open Air Over (OAO)

• Mounting: Band

• Rotation: Reversible

• Service Factor: 1.0

• Ambient Temp: 70 °C

• Insulation Class: F

• Thermal Protection: Automatic reset

• Bearings: Ball (DE & ODE)

• Torque: Breakdown 498.6 oz-ft / LRT 323.5 oz-ft

• Current: LRA 32.62 A / FLA 7.6–7.4 / 3.7 A

• KVA Code: J

• Weight: 45 lbs

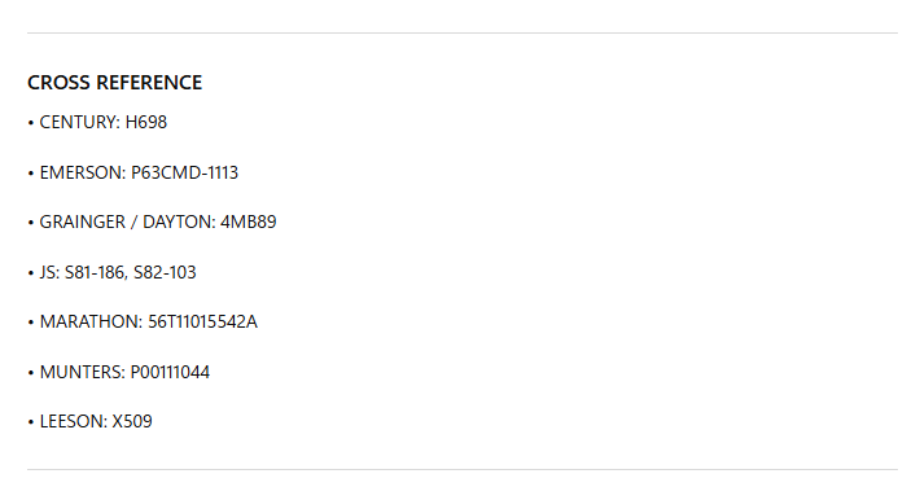

CROSS REFERENCE

• CENTURY: H698

• EMERSON: P63CMD-1113

• GRAINGER / DAYTON: 4MB89

• JS: S81-186, S82-103

• MARATHON: 56T11015542A

• MUNTERS: P00111044

• LEESON: X509
