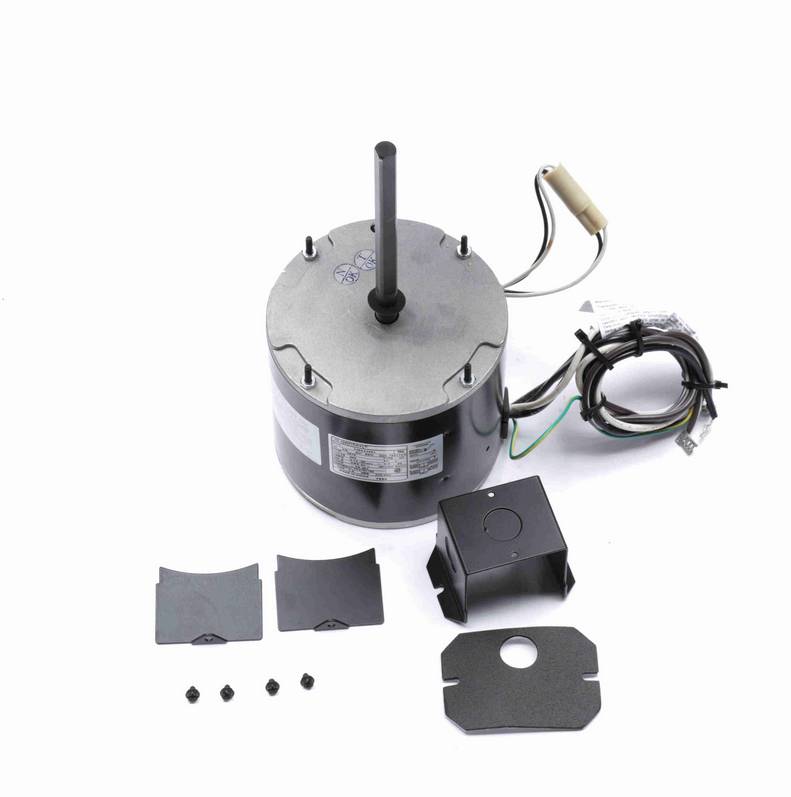

788A, Condenser Fan Motor, 1/4Hp, 1 Ph, 60 Hz, 460 V, 1075 RPM, 1 Speed, 48Y Frame, TEAO

788A, Condenser Fan Motor, 1/4Hp, 1 Ph, 60 Hz, 460 V, 1075 RPM, 1 Speed, 48Y Frame, TEAO

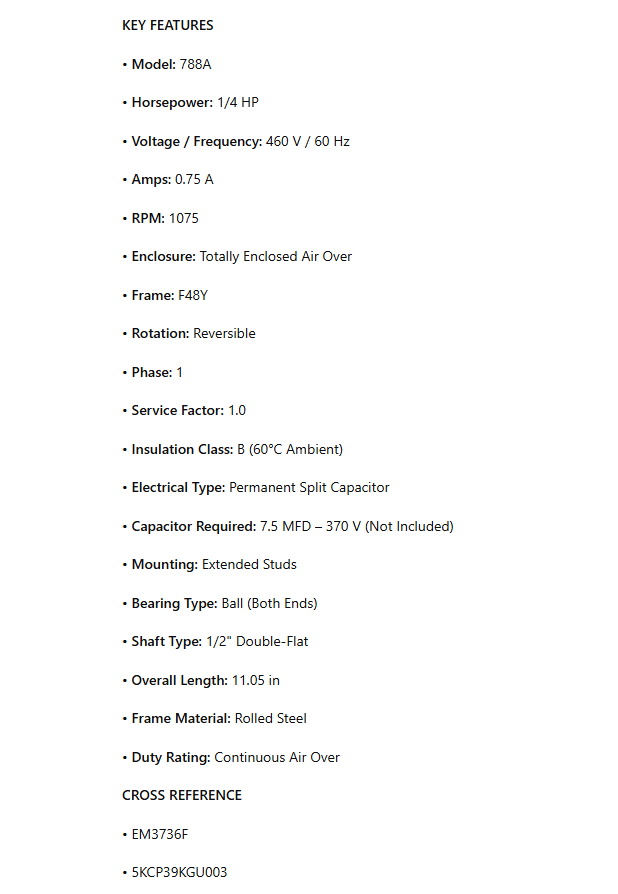

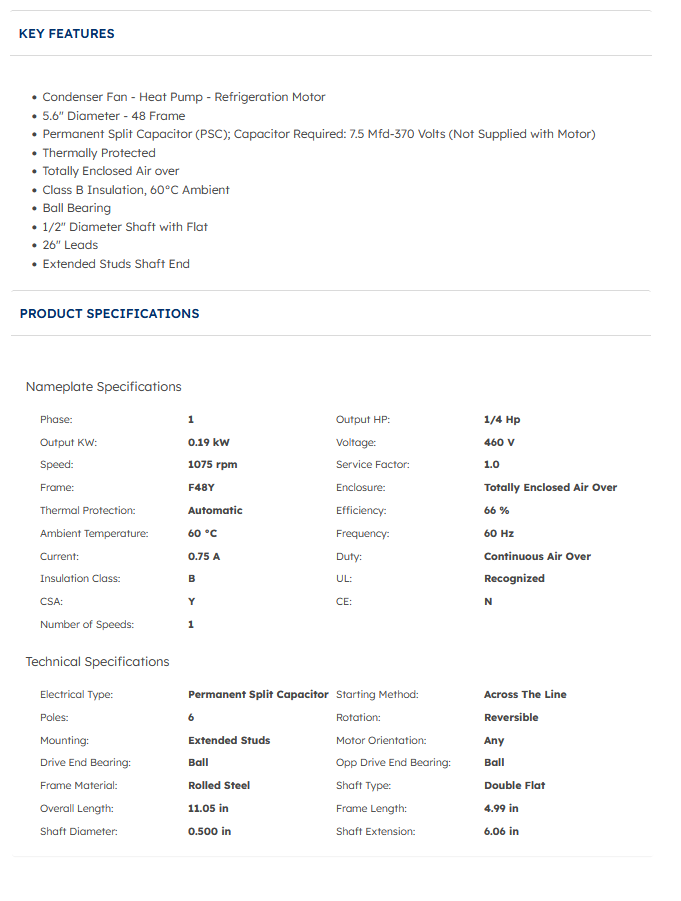

KEY FEATURES

• Model: 788A

• Horsepower: 1/4 HP

• Voltage / Frequency: 460 V / 60 Hz

• Amps: 0.75 A

• RPM: 1075

• Enclosure: Totally Enclosed Air Over

• Frame: F48Y

• Rotation: Reversible

• Phase: 1

• Service Factor: 1.0

• Insulation Class: B (60°C Ambient)

• Electrical Type: Permanent Split Capacitor

• Capacitor Required: 7.5 MFD – 370 V (Not Included)

• Mounting: Extended Studs

• Bearing Type: Ball (Both Ends)

• Shaft Type: 1/2" Double-Flat

• Overall Length: 11.05 in

• Frame Material: Rolled Steel

• Duty Rating: Continuous Air Over

CROSS REFERENCE

• 5KCP39KGU003

• EM3736F
