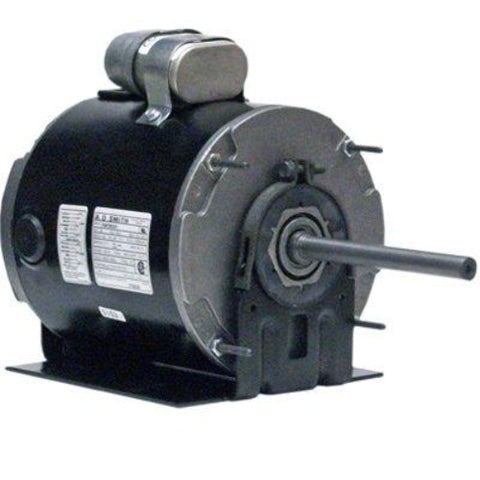

768A, century, 768, 1/3 hp,1725 rpm, 115/230v,FR:48 ,tenv, exhaust fan

CENTURY

$385.00

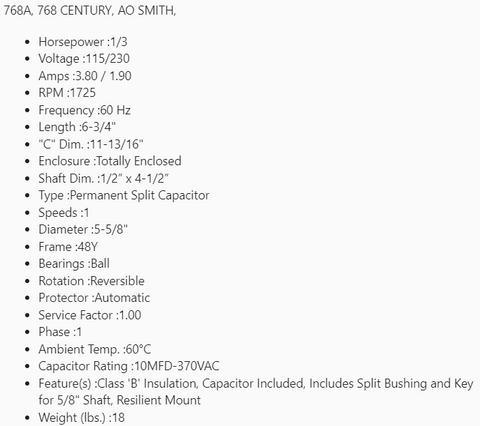

768A, 768 CENTURY, AO SMITH,

Horsepower :1/3
Voltage :115/230
Amps :3.80 / 1.90
RPM :1725
Frequency :60 Hz
Length :6-3/4"
"C" Dim. :11-13/16"
Enclosure :Totally Enclosed
Shaft Dim. :1/2” x 4-1/2”
Type :Permanent Split Capacitor
Speeds :1
Diameter :5-5/8"
Frame :48Y
Bearings :Ball
Rotation :Reversible
Protector :Automatic
Service Factor :1.00
Phase :1
Ambient Temp. :60°C
Capacitor Rating :10MFD-370VAC
Feature(s) :Class 'B' Insulation, Capacitor Included, Includes Split Bushing and Key for 5/8" Shaft, Resilient Mount
Weight (lbs.) :18
