6314-2RSH-C3, Rubber Sealed Deep Groove Ball Bearing 70x150x35mm
6314-2RSH-C3, Rubber Sealed Deep Groove Ball Bearing 70x150x35mm est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
6314-2RSH-C3, Rubber Sealed Deep Groove Ball Bearing 70x150x35mm
Description
Description
6314-2RSH-C3, Rubber Sealed Deep Groove Ball Bearing 70x150x35mm
Replacement by NTN

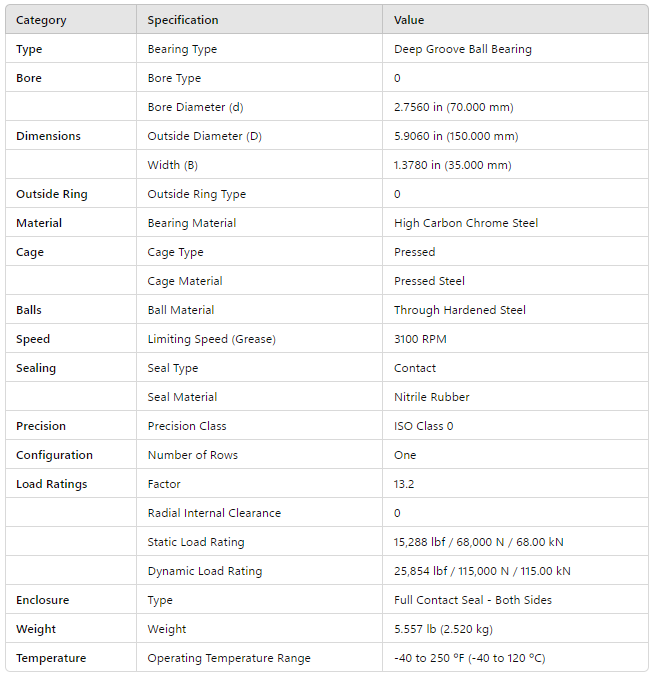

| Category | Specification | Value |
| Type | Bearing Type | Deep Groove Ball Bearing |
|
Bore
|
Bore Type | 0 |
| Bore Diameter (d) | 2.7560 in (70.000 mm) | |
|
Dimensions
|
Outside Diameter (D) | 5.9060 in (150.000 mm) |
| Width (B) | 1.3780 in (35.000 mm) | |
| Outside Ring | Outside Ring Type | 0 |
| Material | Bearing Material | High Carbon Chrome Steel |
|
Cage
|
Cage Type | Pressed |
| Cage Material | Pressed Steel | |
| Balls | Ball Material | Through Hardened Steel |
| Speed | Limiting Speed (Grease) | 3100 RPM |
|
Sealing
|
Seal Type | Contact |
| Seal Material | Nitrile Rubber | |
| Precision | Precision Class | ISO Class 0 |
| Configuration | Number of Rows | One |
|
Load Ratings
|
Factor | 13.2 |
| Radial Internal Clearance | 0 | |
| Static Load Rating | 15,288 lbf / 68,000 N / 68.00 kN | |
| Dynamic Load Rating | 25,854 lbf / 115,000 N / 115.00 kN | |
| Enclosure | Type | Full Contact Seal - Both Sides |
| Weight | Weight | 5.557 lb (2.520 kg) |
| Temperature | Operating Temperature Range | -40 to 250 ºF (-40 to 120 ºC) |
