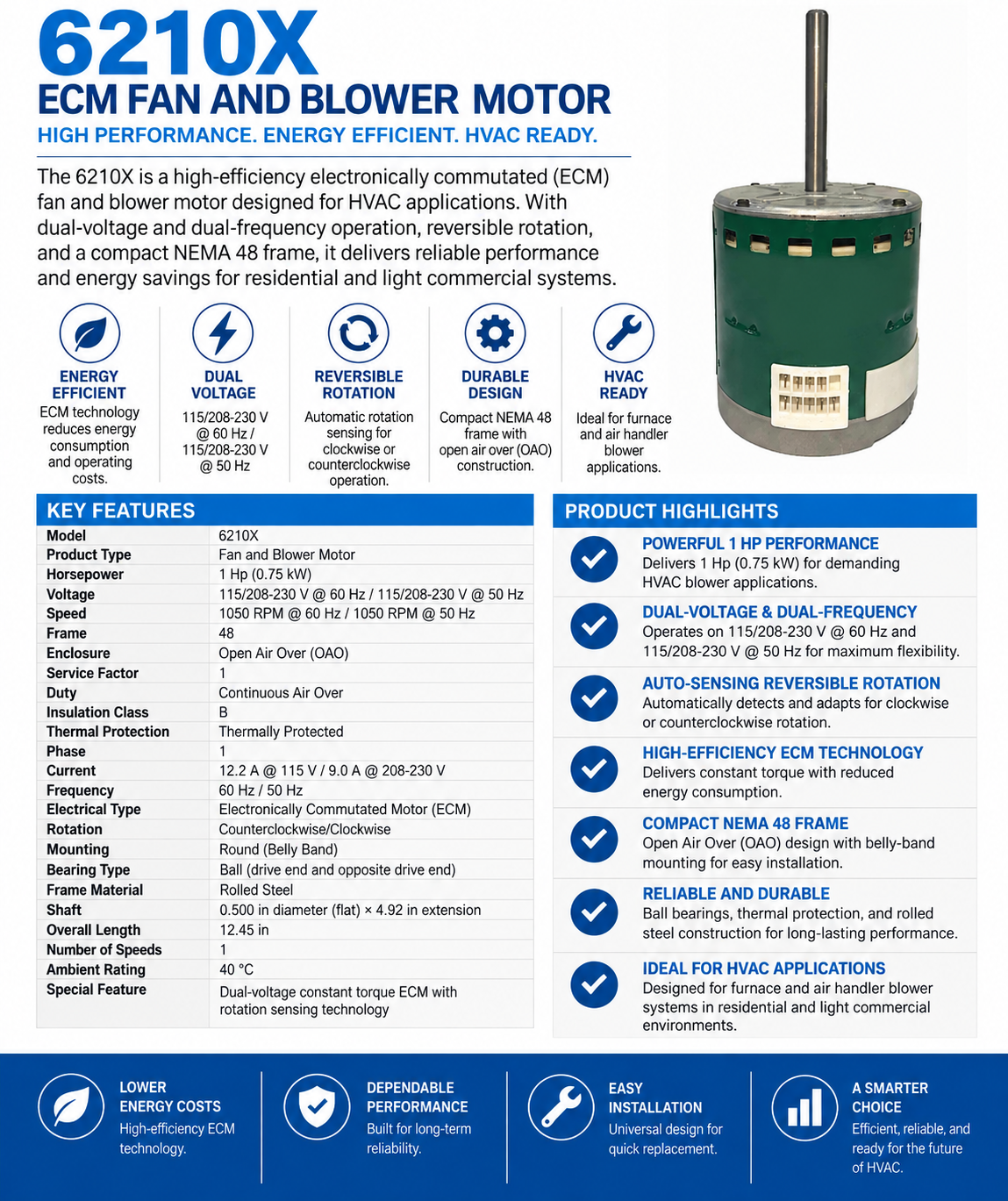

6210X, 1Hp, 1050 RPM, 115/208‑230 V, 1 Ph, 60/50 Hz, Open Air Over (OAO), Frame 48, 5SEA39MLP8021G

This electronically commutated fan and blower motor delivers 1 Hp (0.75 kW) in a compact 48‑frame design, offering dual‑voltage and dual‑frequency operation with reversible rotation and continuous air‑over duty.

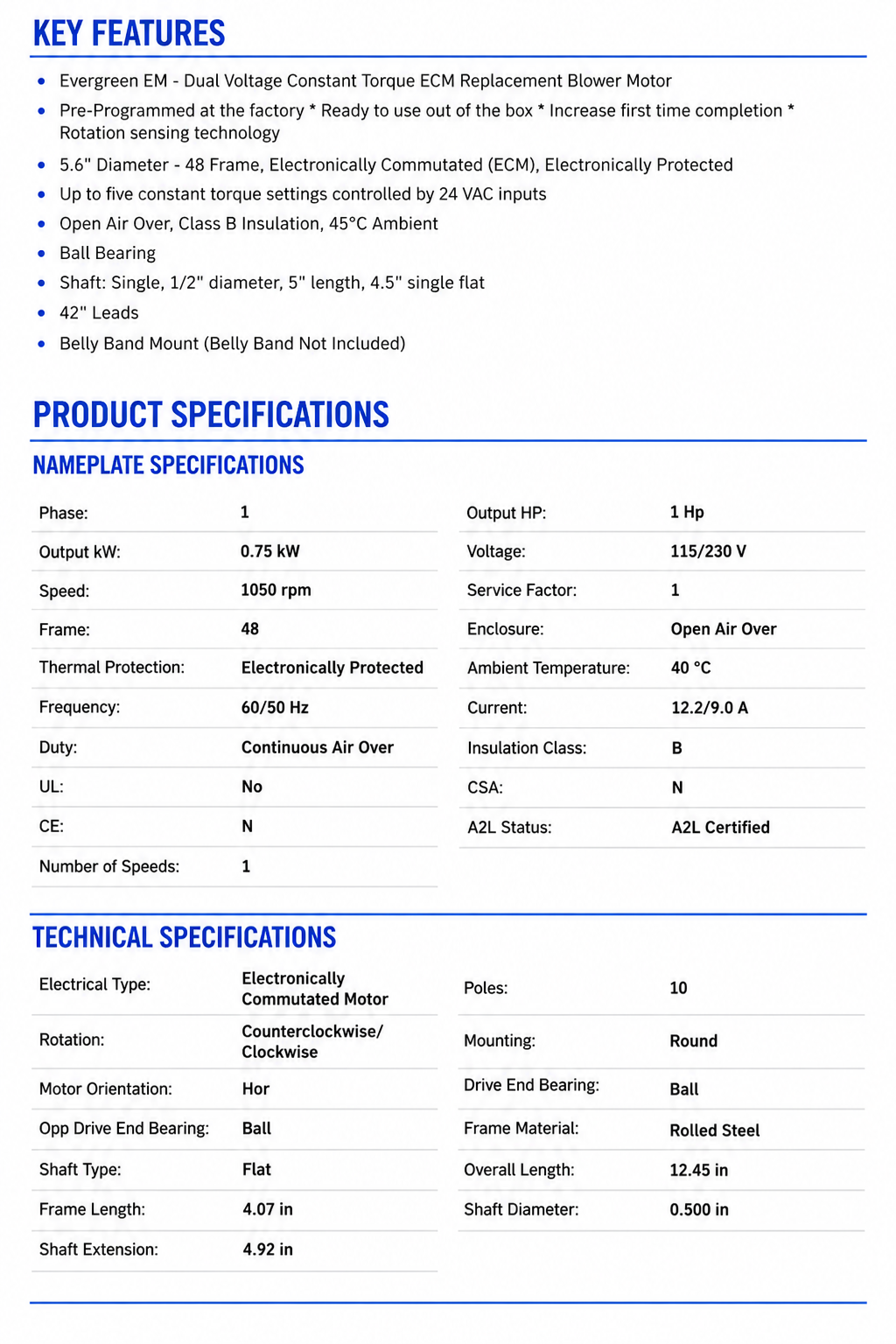

KEY FEATURES

• Model: 6210X

• Product Type: Fan and Blower Motor

• Horsepower: 1 Hp (0.75 kW)

• Voltage: 115/208‑230 V @ 60 Hz / 115/208‑230 V @ 50 Hz

• Speed: 1050 RPM @ 60 Hz / 1050 RPM @ 50 Hz

• Frame: 48

• Enclosure: Open Air Over (OAO)

• Service Factor: 1

• Duty: Continuous Air Over

• Insulation Class: B

• Thermal Protection: Thermally Protected

• Phase: 1

• Current: 12.2 A @ 115 V / 9.0 A @ 208‑230 V

• Frequency: 60 Hz / 50 Hz

• Electrical Type: Electronically Commutated Motor (ECM)

• Rotation: Counterclockwise/Clockwise

• Mounting: Round (Belly Band)

• Bearing Type: Ball

• Frame Material: Rolled Steel

• Shaft: Flat, 0.500 in diameter, 4.92 in extension

• Overall Length: 12.45 in

• Number of Speeds: 1

• Ambient Rating: 40 °C

• Special Feature: Dual‑voltage constant torque ECM with rotation sensing technology

This motor combines dual‑voltage flexibility and reversible rotation in a compact, electronically controlled design suited for HVAC blower applications.
