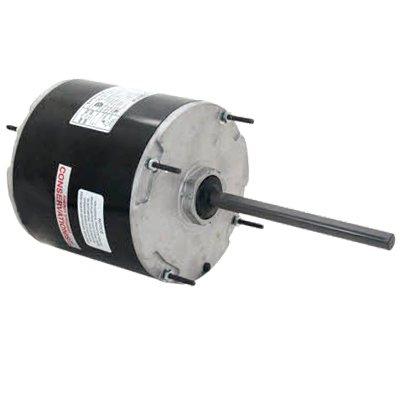

5FE1036S, 1/3 HP, 1100 RPM, 575 VOLTS, 1PH, TENV, CENTURY, FRAME 48, BALL BEARING

CENTURY

$322.03

5FE1036S, CENTURY, AO SMITH

Horsepower :1/3
Voltage :575
Amps :0.75-0.80
RPM :1100
Frequency :60 Hz
Length :5-3/8"
"C" Dim. :11-7/8"
Enclosure :Totally Enclosed, Air Over
Shaft Dim. :1/2” x 6-1/2”
Type :Permanent Split Capacitor
Speeds :1
Diameter :5-5/8"
Frame :48
Bearings :Ball
Rotation :Reversible
Protector :Automatic
Service Factor :1.00
Phase :1
Ambient Temp. :60°C
Capacitor Rating :7.5MFD-370V
Feature(s) :Class 'B' Insulation, Thru-Bolts, 47" Leads
Weight (lbs.) :17
