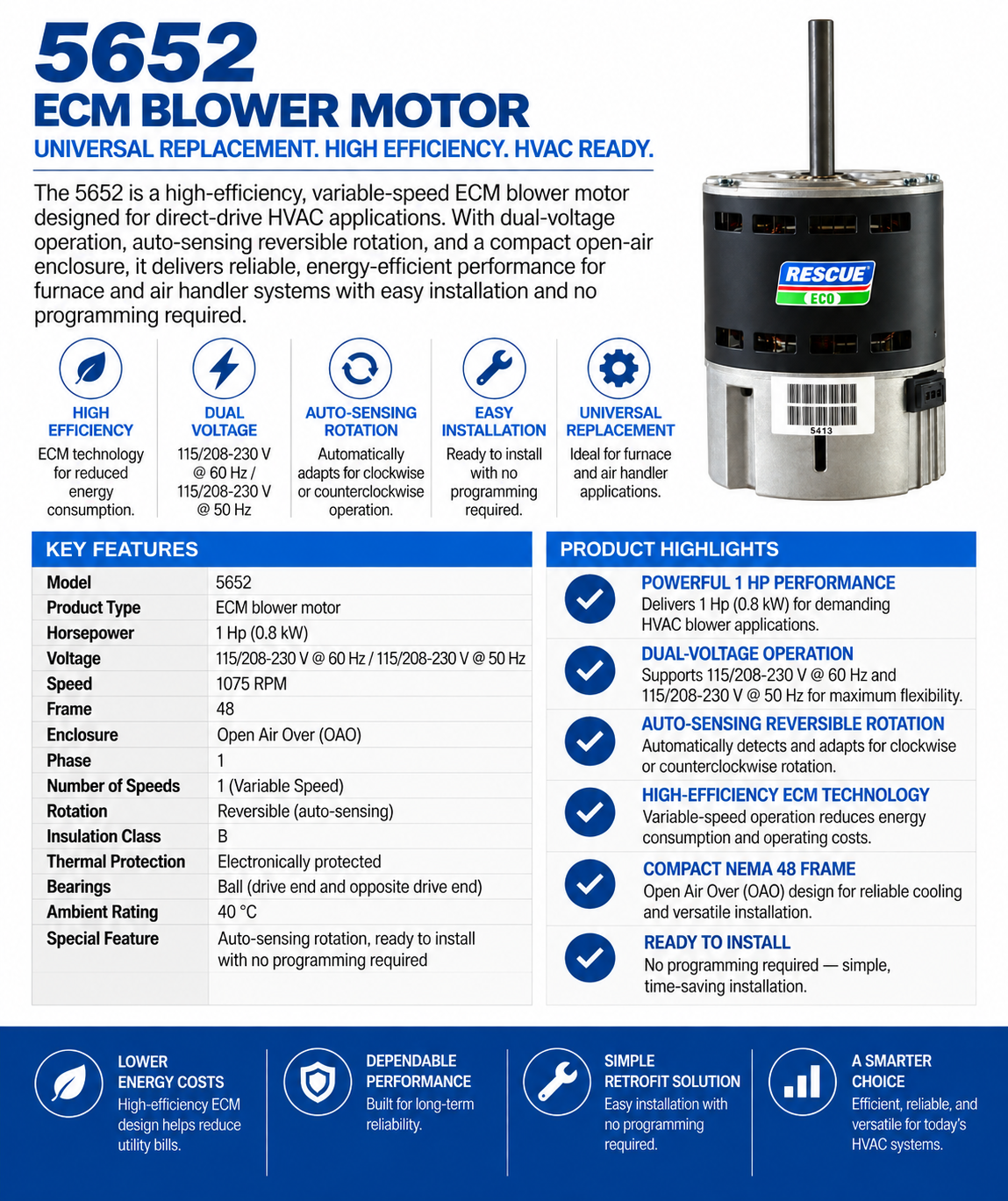

5652, 1Hp, 1075RPM, 115/208‑230V, 1Ph, 60/50Hz, Open Air Over (OAO), Frame 48, M055TZE0092015B

This variable‑speed ECM blower motor is designed for direct‑drive HVAC applications, offering dual‑voltage and auto‑sensing reversible rotation in a compact open‑air enclosure.

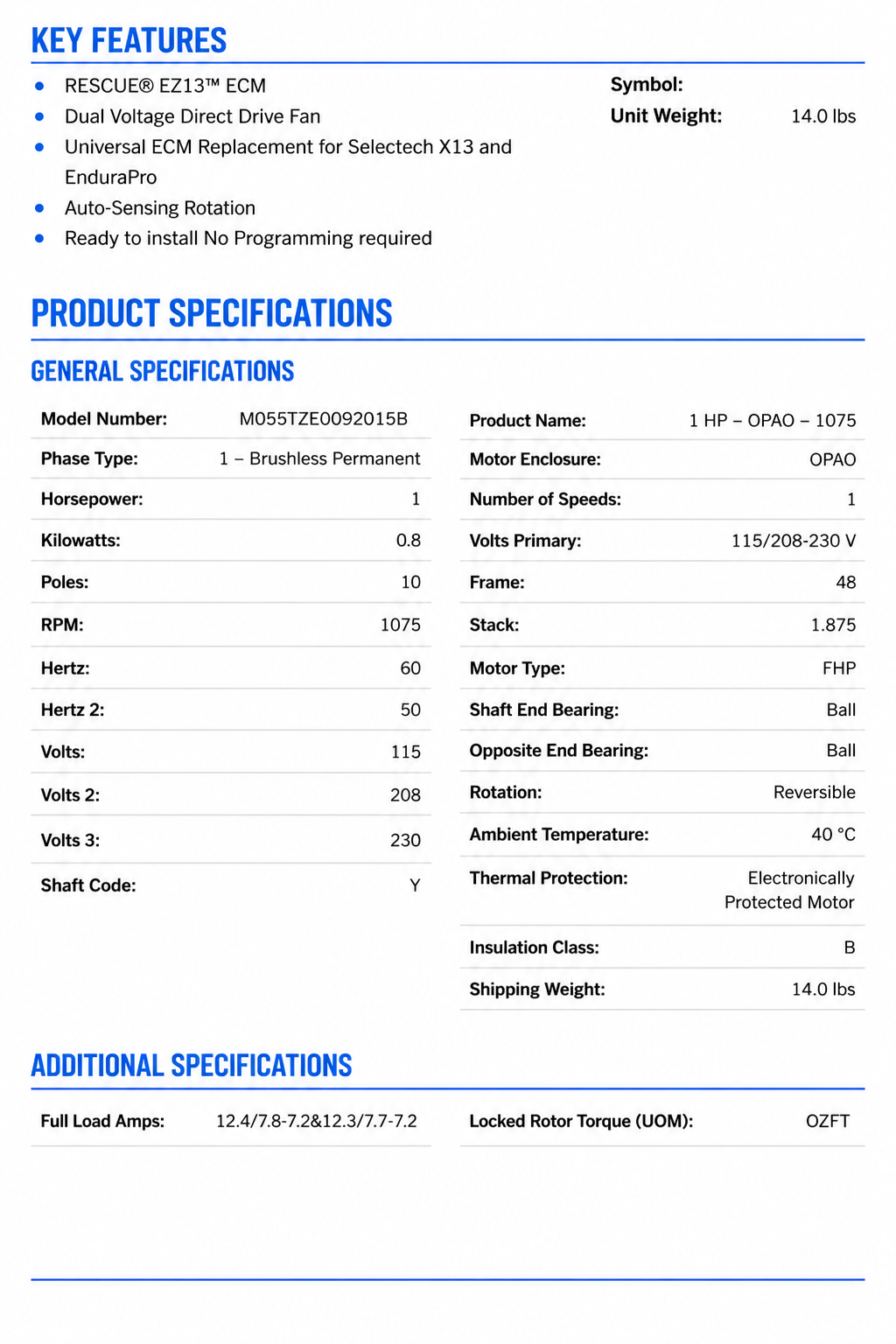

KEY FEATURES

• Model: 5652

• Product Type: ECM blower motor

• Horsepower: 1 Hp (0.8 kW)

• Voltage: 115/208‑230 V @ 60 Hz / 115/208‑230 V @ 50 Hz

• Speed: 1075 RPM

• Frame: 48

• Enclosure: Open Air Over (OAO)

• Phase: 1

• Insulation Class: B

• Thermal Protection: Electronically protected

• Bearings: Ball

• Rotation: Reversible (auto‑sensing)

• Ambient Rating: 40°C

• Number of Speeds: 1

• Special Feature: Auto‑sensing rotation, ready to install with no programming required

This motor’s dual‑voltage capability and auto‑sensing reversible rotation make it highly adaptable for HVAC blower replacements, while its ECM design ensures efficient and programmable operation.
