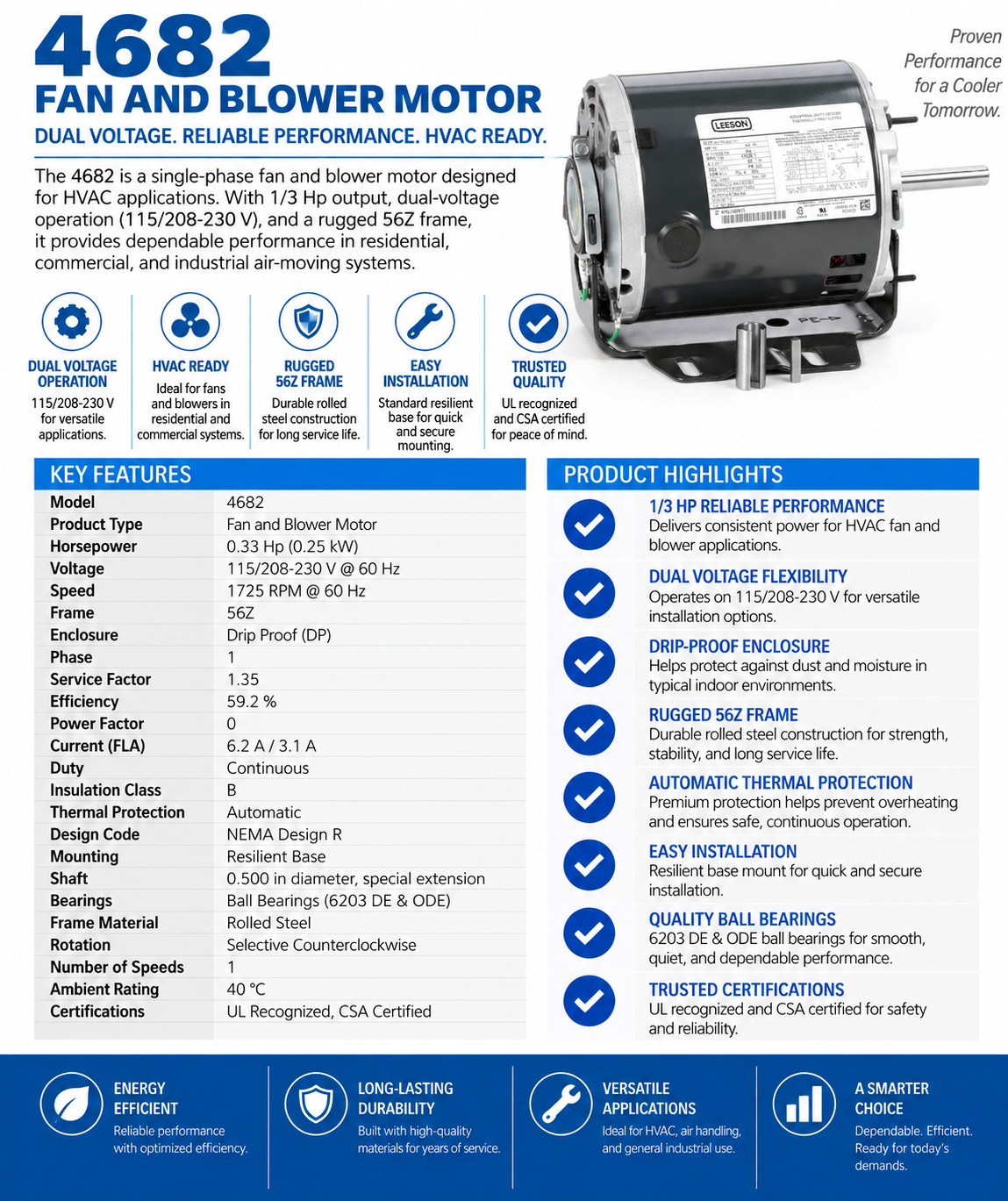

4682, 0.33 Hp, 1725 RPM, 115/208‑230 V, 1 Ph, 60 Hz, Drip Proof, Frame 56Z, 5KH35JN3132T

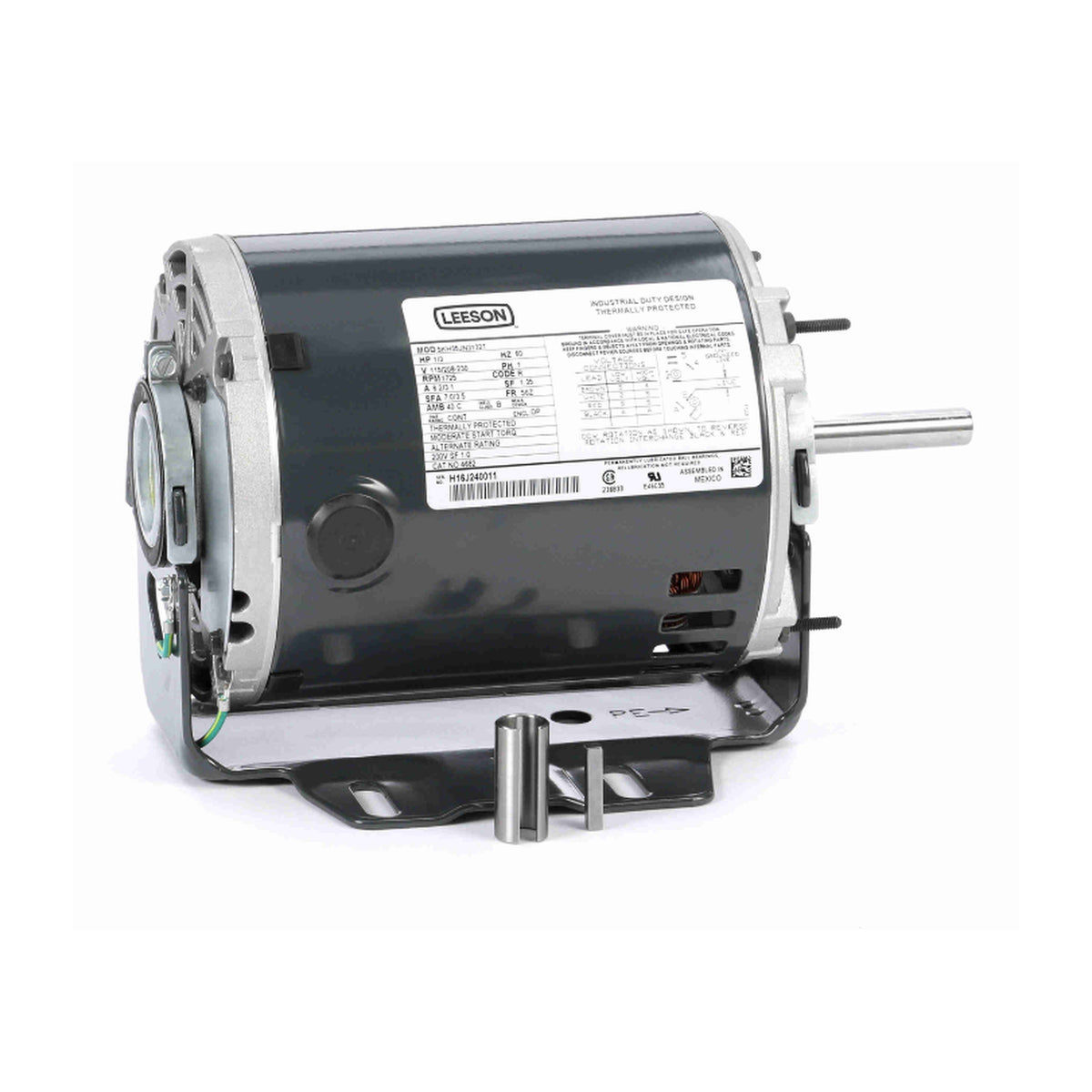

This single‑phase fan and blower motor delivers 1/3 Hp output at 1725 RPM and supports dual‑voltage operation, making it suitable for HVAC fan and blower applications in compact 56Z frame designs.

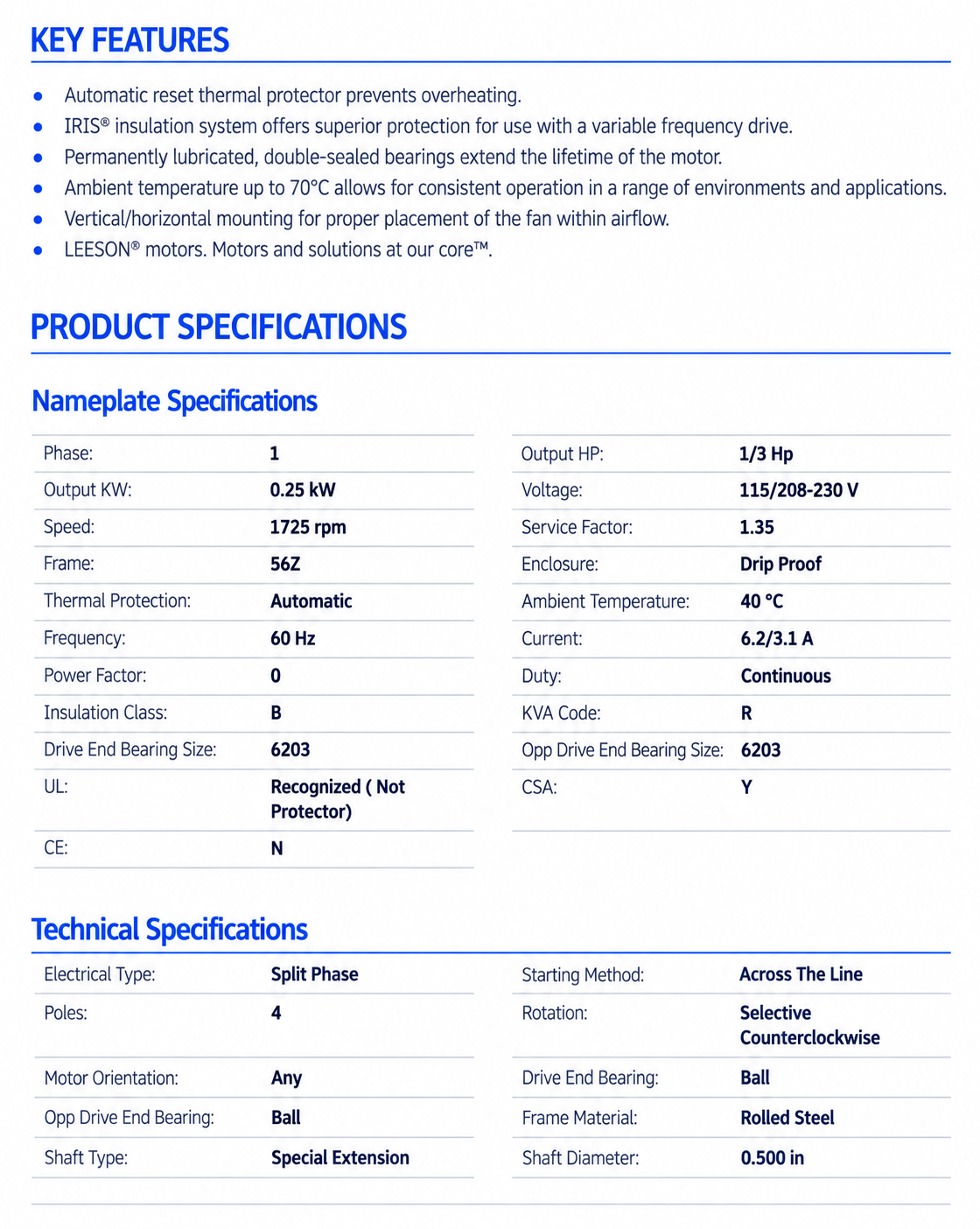

KEY FEATURES

• Model: 4682

• Product Type: Fan and Blower Motor

• Horsepower: 0.33 Hp (0.25 kW)

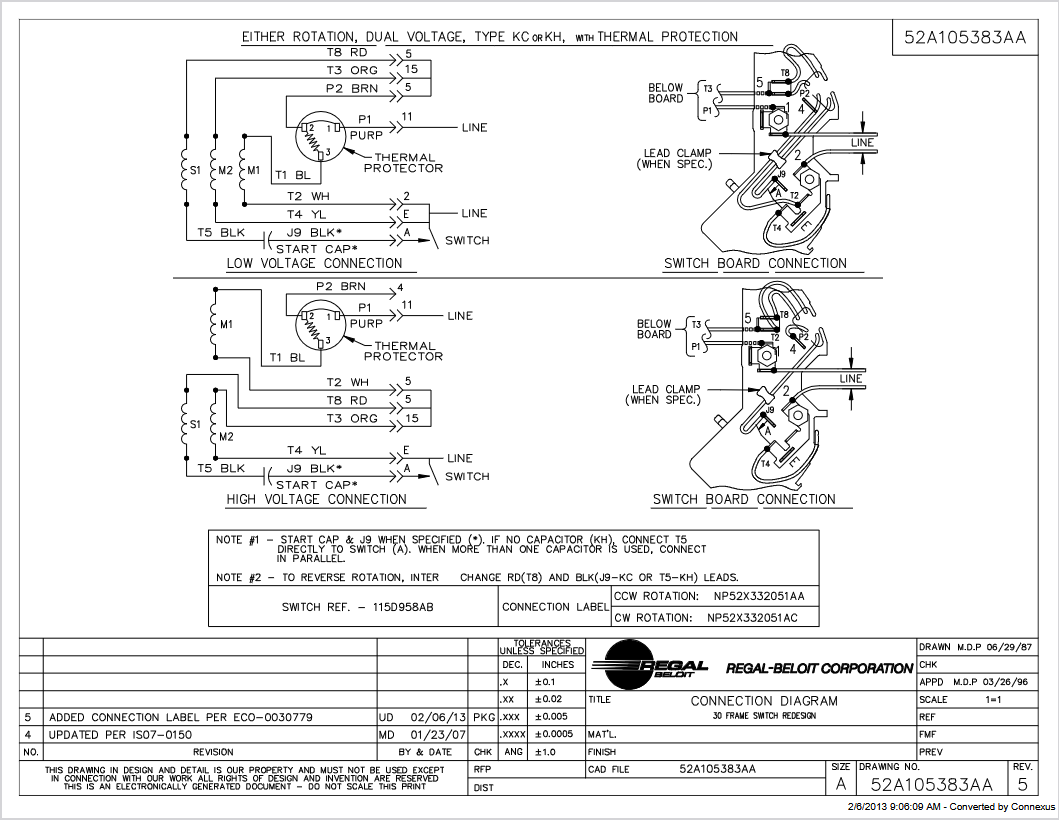

• Voltage: 115/208‑230 V @ 60 Hz

• Speed: 1725 RPM @ 60 Hz

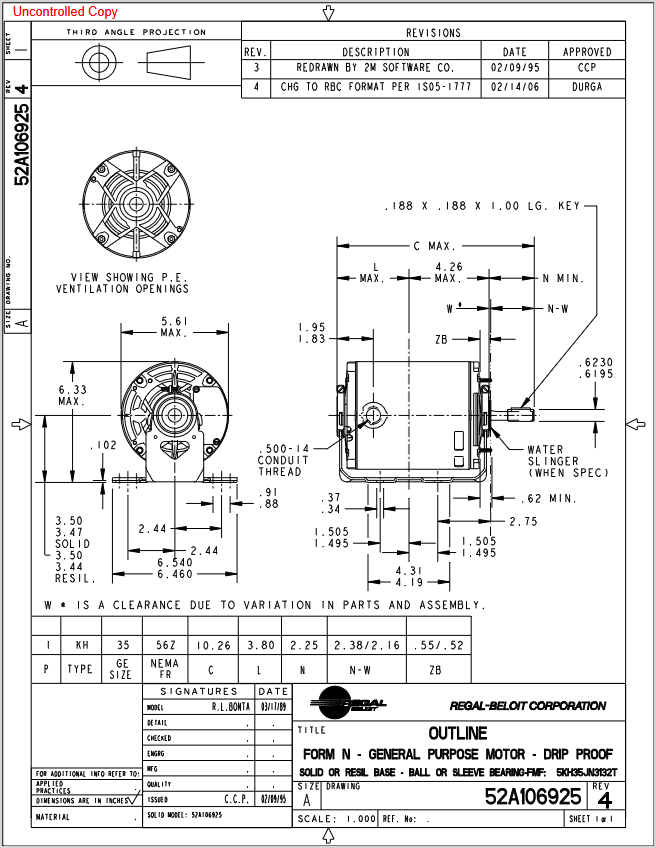

• Frame: 56Z

• Enclosure: Drip Proof (DP)

• Service Factor: 1.35

• Efficiency: 59.2 %

• Power Factor: 0

• Current: 6.2 A / 3.1 A

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Automatic

• Design Code: NEMA Design R

• Bearings: Ball Bearings (6203 DE & ODE)

• Frame Material: Rolled Steel

• Rotation: Selective Counterclockwise

• Ambient Rating: 40 °C

• Number of Speeds: 1

• Phase: 1

• Shaft: 0.500 in diameter, special extension

• Certifications: UL Recognized, CSA Certified

This compact, dual‑voltage motor is optimized for HVAC fan and blower systems, offering reliable automatic thermal protection and robust ball‑bearing construction for continuous operation.
