E-Motor Nations  |  SKU : EMN-018243

447,Emotornations,1/12Hp,1550 Rpm,115 Volts,D0447 Fasco,Open Air Over,

$284.87
shipping

Estimation des frais de livraison

Description

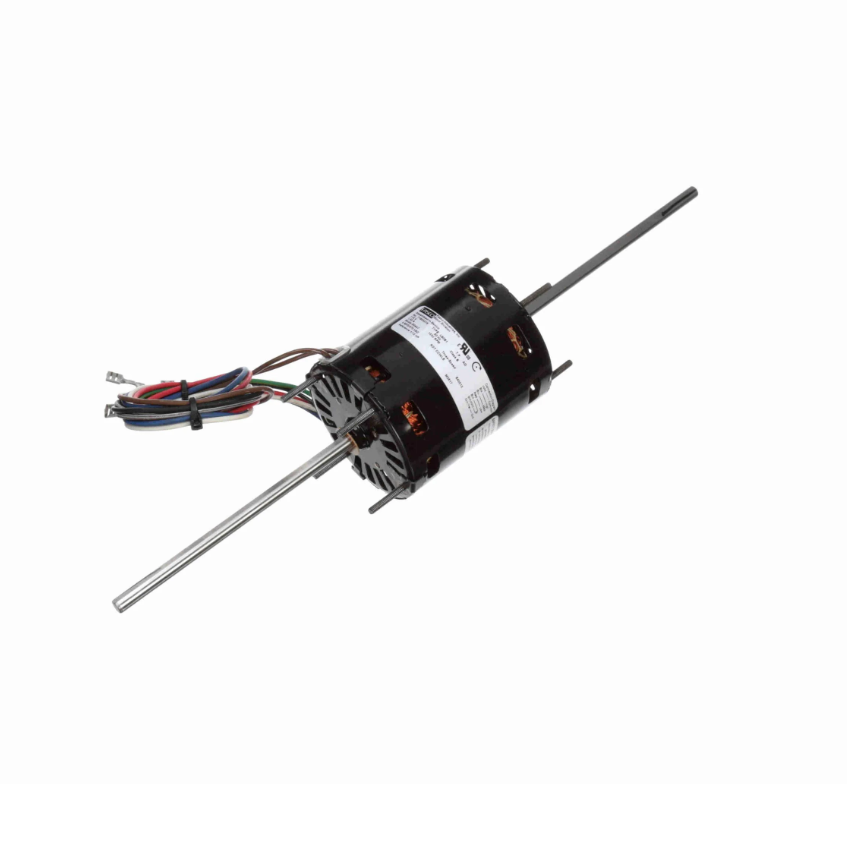

447, Ao Smith, Fasco D0447,

Nameplate Specifications

Phase: 1 Output HP: 1/12 Hp
Output KW: 0.06 kW Voltage: 115 V
Speed: 1550 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 1.32 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: N
CE: N Number of Speeds: 3

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Steel
Shaft Type: Flat Overall Length: 16.15 in
Frame Length: 4.00 in Shaft Diameter: 0.313 in
Shaft Extension: 6.07 in

General Specifications

UPC: Weight: 5.00 LB
Packaged Length: 17.00 IN Packaged Width: 4.50 IN
Packaged Height: 3.31 IN Country of Origin: Mexico
  • Room Air Conditioning and Double Blower Motor
  • 3.3" Diameter
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Double Shaft with Flat
  • 20" Leads with Terminals
  • Extended Studs Shaft End and Lead End
