US MOTORS | SKU :
EMN-018326

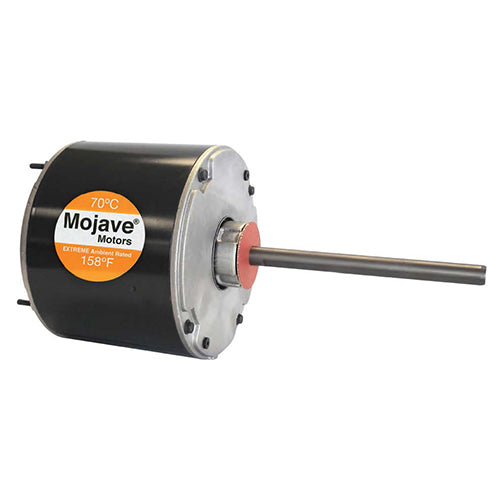

3737H, K055PYH1756014B, Us Motors, 1/3Hp, 1075 Rpm, 460 Volts, Fr:48, EM3737F,
Prix habituel
$358.80
Prix unitaire
/
Indisponible
Frais de livraison calculés lors du paiement.
3737H, K055PYH1756014B, Us Motors, 1/3Hp, 1075 Rpm, 460 Volts, Fr:48, EM3737F, est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
shipping
Estimation des frais de livraison
Veuillez corriger les erreurs suivantes :
3737H, K055PYH1756014B, Us Motors, 1/3Hp, 1075 Rpm, 460 Volts, Fr:...
Prix habituel
$358.80
Prix unitaire
/
Indisponible
Description
Description
3737H, K055PYH1756014B, Us Motors, replace 436A, Century, Ao Smith 436, Fasco, D912

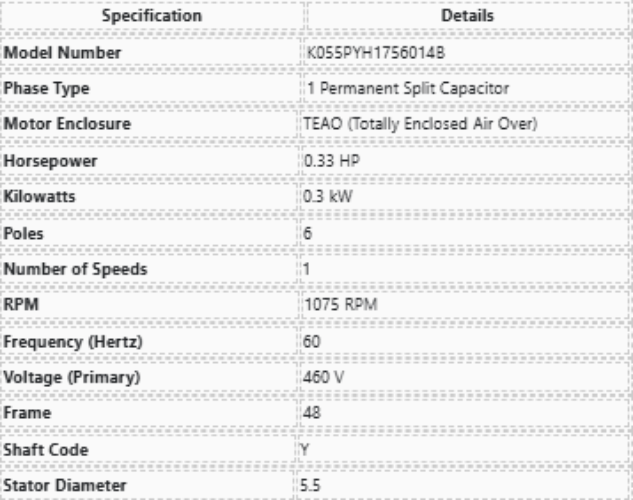

| Specification | Details |
|---|
| Model Number | K055PYH1756014B |
| Phase Type | 1 Permanent Split Capacitor |
| Motor Enclosure | TEAO (Totally Enclosed Air Over) |
| Horsepower | 0.33 HP |
| Kilowatts | 0.3 kW |
| Poles | 6 |
| Number of Speeds | 1 |
| RPM | 1075 RPM |
| Frequency (Hertz) | 60 |
| Voltage (Primary) | 460 V |
| Frame | 48 |
| Shaft Code | Y |
| Stator Diameter | 5.5 |

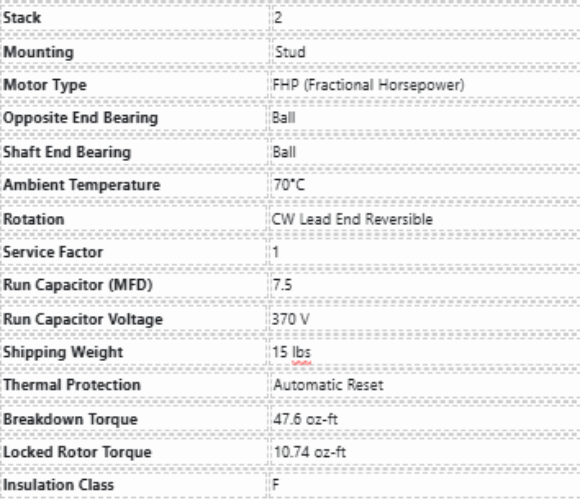

| Stack | 2 |
| Mounting | Stud |
| Motor Type | FHP (Fractional Horsepower) |
| Opposite End Bearing | Ball |
| Shaft End Bearing | Ball |
| Ambient Temperature | 70°C |
| Rotation | CW Lead End Reversible |
| Service Factor | 1 |
| Run Capacitor (MFD) | 7.5 |
| Run Capacitor Voltage | 370 V |
| Shipping Weight | 15 lbs |
| Thermal Protection | Automatic Reset |
| Breakdown Torque | 47.6 oz-ft |
| Locked Rotor Torque | 10.74 oz-ft |
| Insulation Class | F |
| Locked Rotor Amps | 2.88 A |
| Full Load Amps (Primary) | 1.0 A |
