3566, 3/4Hp, 1075 RPM, 208‑230 V, 1 Ph, 60 Hz, ODP, Frame 56Z, K0630WM3972864B

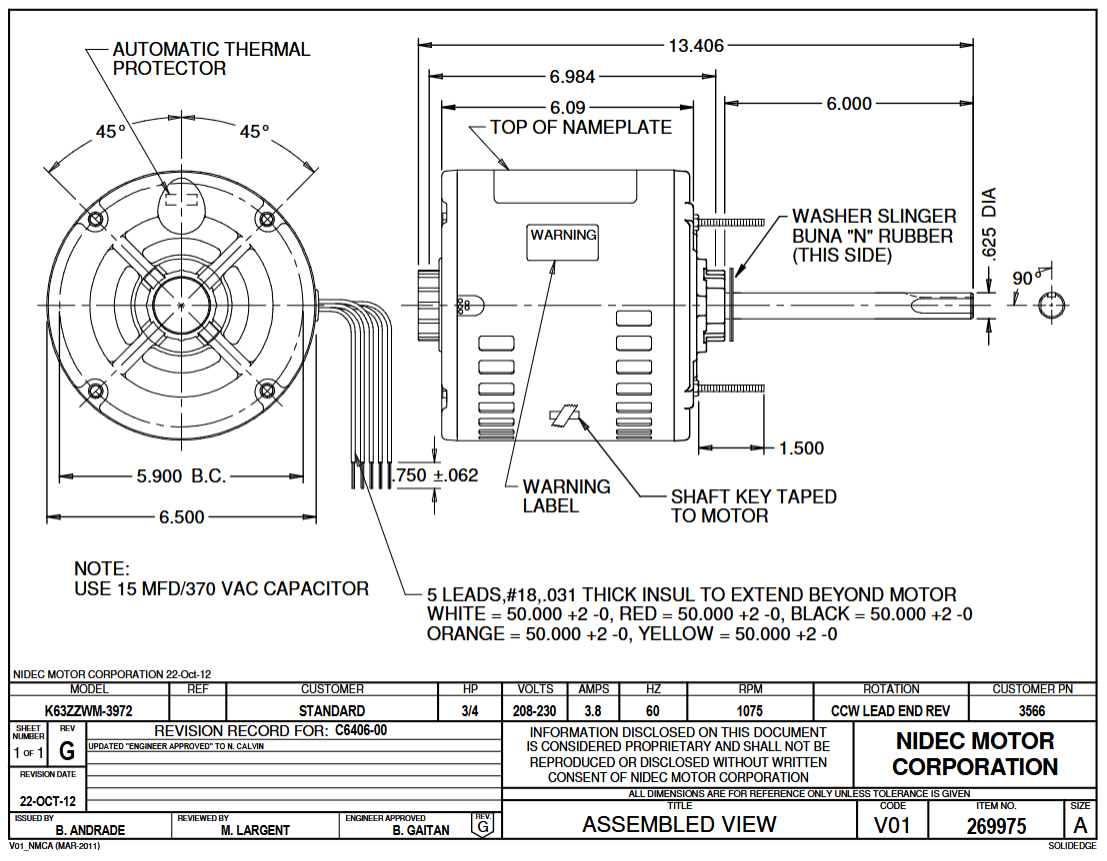

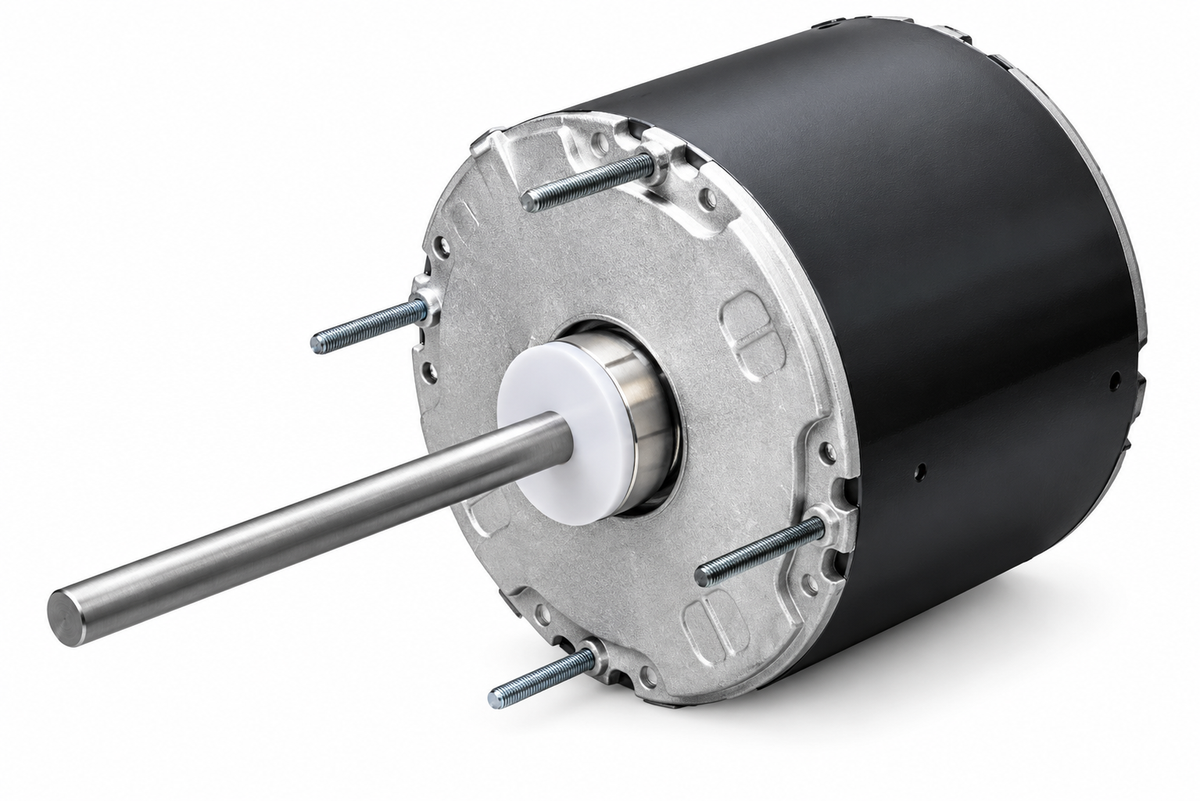

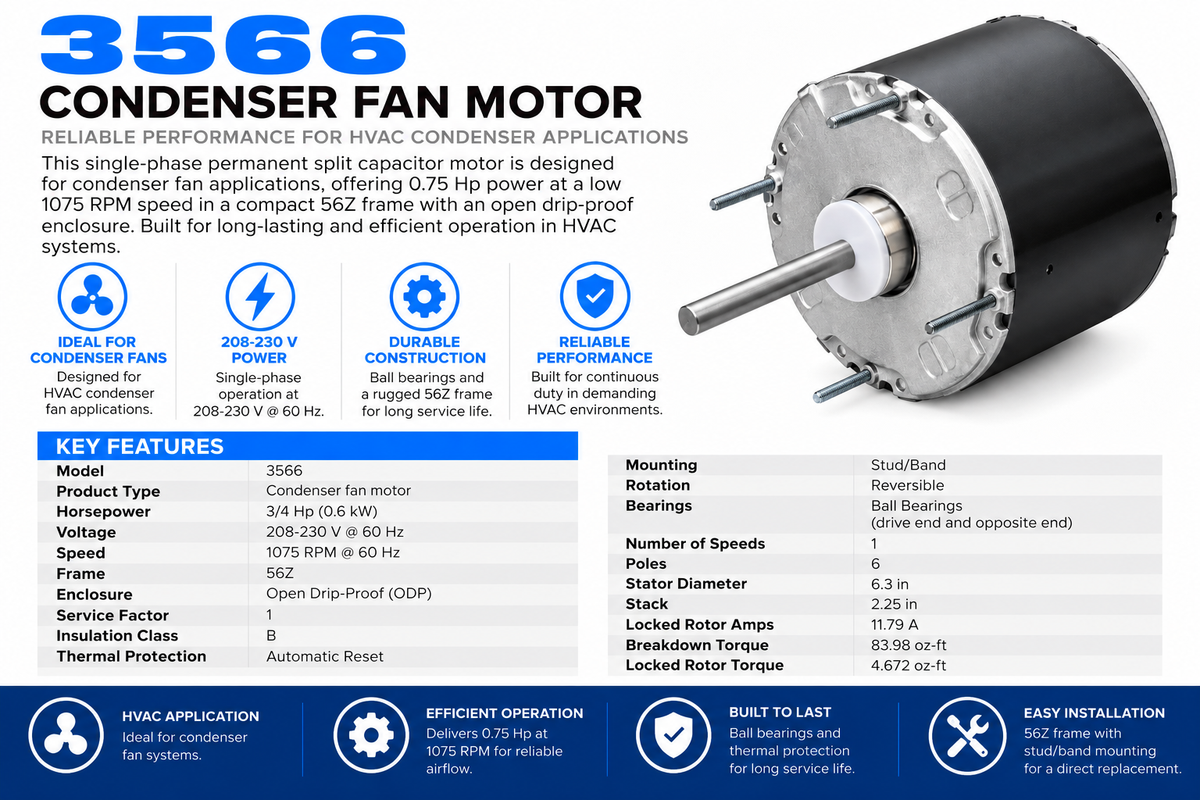

This single‑phase permanent split capacitor motor is designed for condenser fan applications, offering 0.75 Hp power at a low 1075 RPM speed in a compact 56Z frame with an open drip‑proof enclosure.

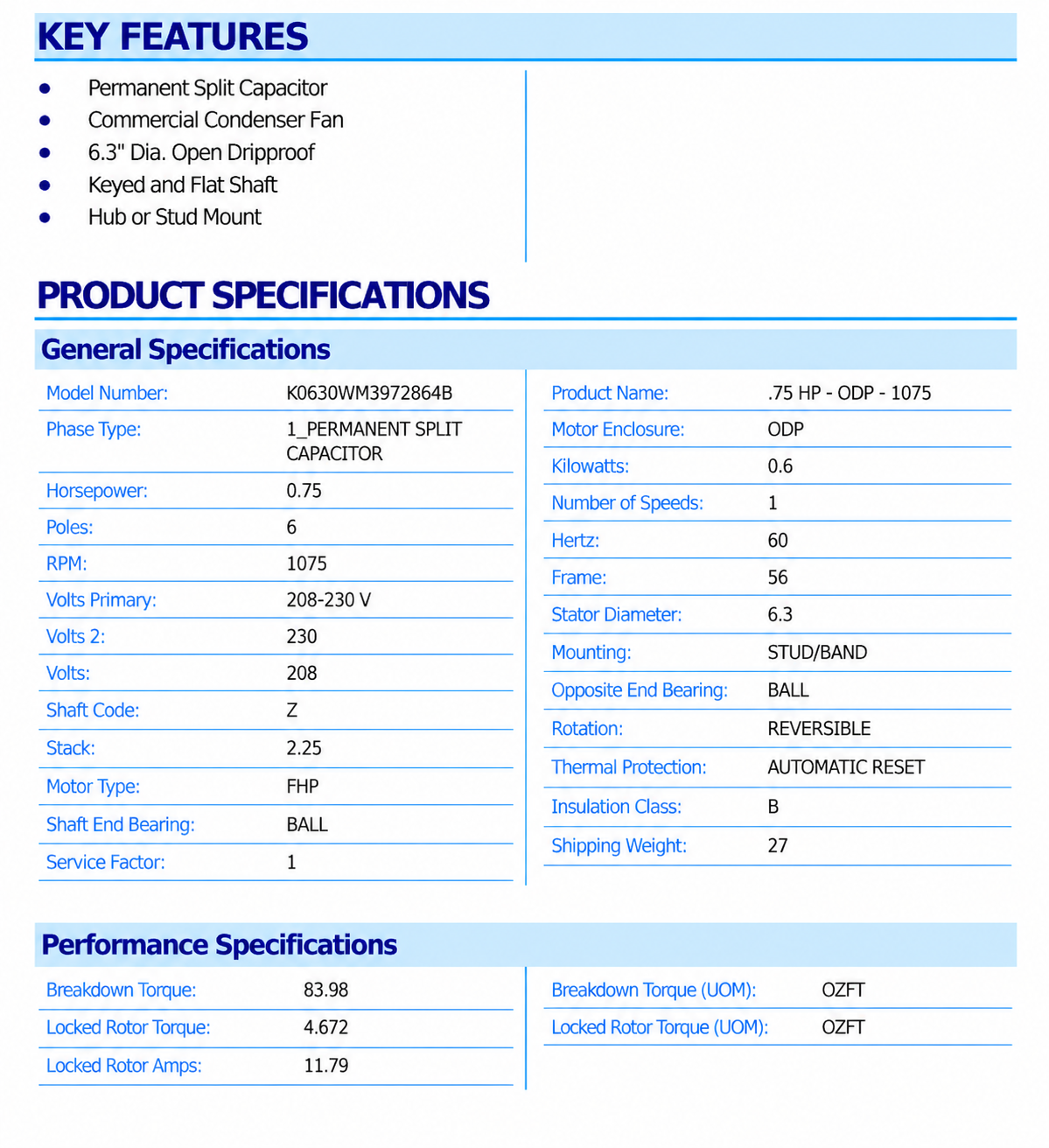

KEY FEATURES

• Model: 3566

• Product Type: Condenser fan motor

• Horsepower: 3/4 Hp (0.6 kW)

• Voltage: 208‑230 V @ 60 Hz

• Speed: 1075 RPM @ 60 Hz

• Frame: 56Z

• Enclosure: Open Drip‑Proof (ODP)

• Service Factor: 1

• Insulation Class: B

• Thermal Protection: Automatic Reset

• Mounting: Stud/Band

• Rotation: Reversible

• Bearings: Ball Bearings (drive end and opposite end)

• Number of Speeds: 1

• Poles: 6

• Stator Diameter: 6.3 in

• Stack: 2.25 in

• Locked Rotor Amps: 11.79 A

• Breakdown Torque: 83.98 oz‑ft

• Locked Rotor Torque: 4.672 oz‑ft
