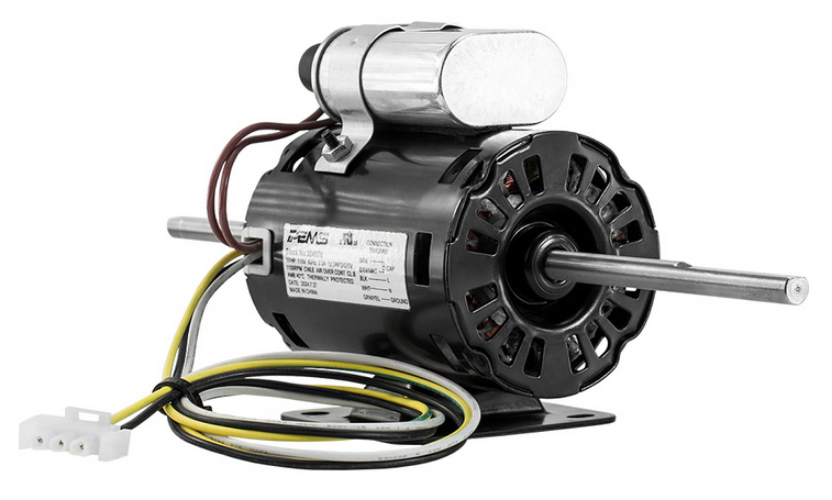

304970, OEM Replacement, 1/6Hp, 1100 RPM, 115V, CW

304970,PEMS OEM Replacement - Greenheck, 1/6Hp, 1100 RPM, 115V, CW

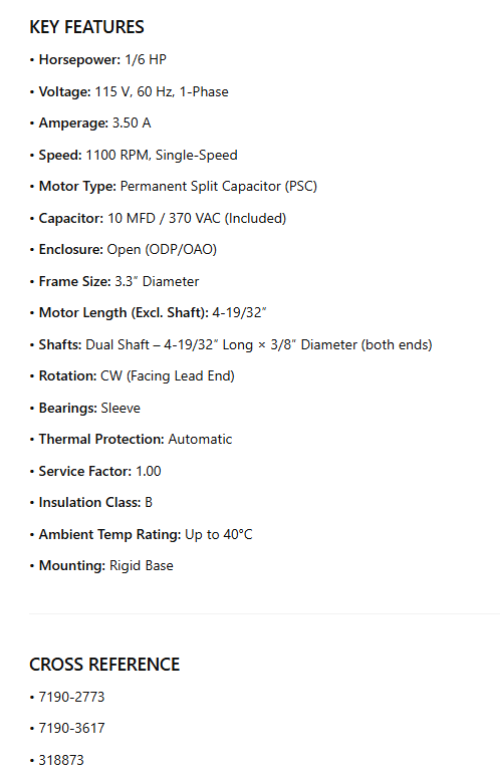

KEY FEATURES

• Horsepower: 1/6 HP

• Voltage: 115 V, 60 Hz, 1-Phase

• Amperage: 3.50 A

• Speed: 1100 RPM, Single-Speed

• Motor Type: Permanent Split Capacitor (PSC)

• Capacitor: 10 MFD / 370 VAC (Included)

• Enclosure: Open (ODP/OAO)

• Frame Size: 3.3″ Diameter

• Motor Length (Excl. Shaft): 4-19/32″

• Shafts: Dual Shaft – 4-19/32″ Long × 3/8″ Diameter (both ends)

• Rotation: CW (Facing Lead End)

• Bearings: Sleeve

• Thermal Protection: Automatic

• Service Factor: 1.00

• Insulation Class: B

• Ambient Temp Rating: Up to 40°C

• Mounting: Rigid Base

CROSS REFERENCE

• 7190-2773

• 7190-3617

• 318873
