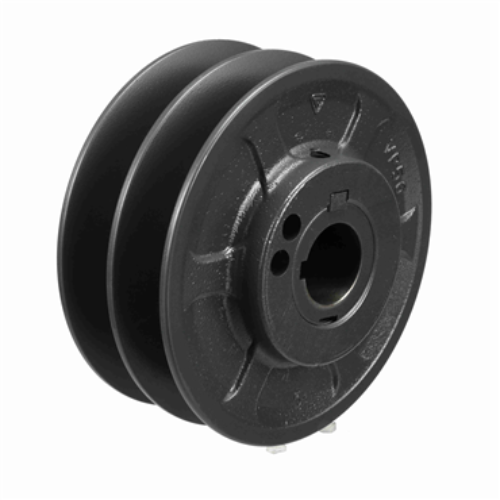

2VP56-5/8 ,Masterdrive ,Dia 5.35'' ,Bore 5/8" ,Variable Pitch Adjustable ,2 Grooves
E-Motor Nations
2VP56-5/8,Masterdrive,Dia 5.35'',Bore 5/8'',Variable Pitch Adjustable,2 Grooves,

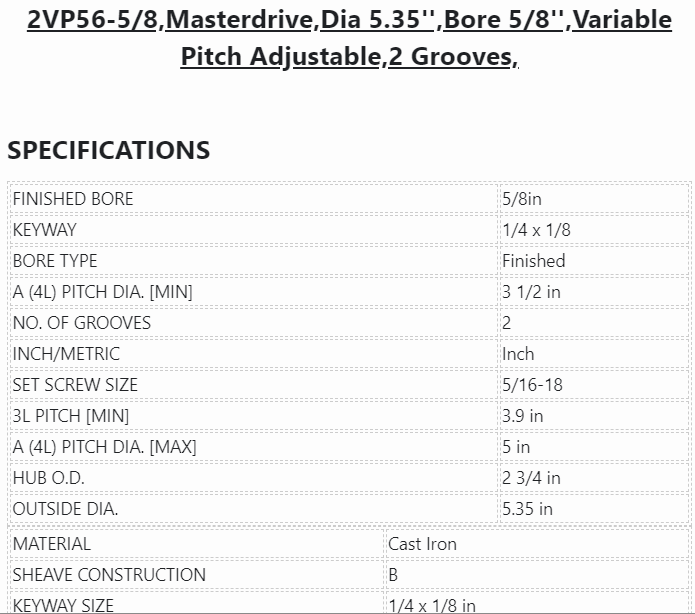

SPECIFICATIONS
FINISHED BORE |
5/8in |
KEYWAY |
1/4 x 1/8 |
BORE TYPE |
Finished |
A (4L) PITCH DIA. [MIN] |
3 1/2 in |
NO. OF GROOVES |
2 |
INCH/METRIC |
Inch |
SET SCREW SIZE |
5/16-18 |
3L PITCH [MIN] |
3.9 in |
A (4L) PITCH DIA. [MAX] |
5 in |
HUB O.D. |
2 3/4 in |
OUTSIDE DIA. |
5.35 in |

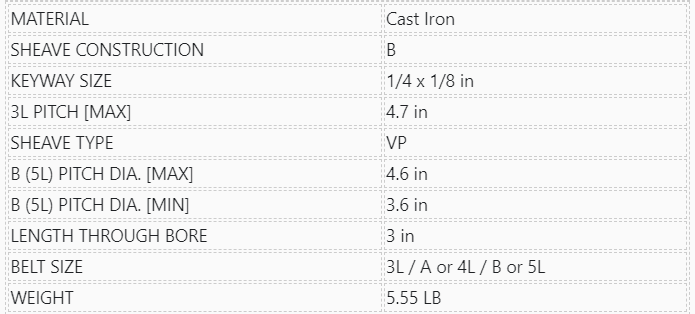

MATERIAL |
Cast Iron |
SHEAVE CONSTRUCTION |
B |
KEYWAY SIZE |
1/4 x 1/8 in |
3L PITCH [MAX] |
4.7 in |
SHEAVE TYPE |
VP |
B (5L) PITCH DIA. [MAX] |
4.6 in |
B (5L) PITCH DIA. [MIN] |
3.6 in |
LENGTH THROUGH BORE |
3 in |
BELT SIZE |
3L / A or 4L / B or 5L |
WEIGHT |
5.55 LB |
PRODUCT DETAILS
- 2 Grooves
- 5.35" Outside Diameter
- 0.625' Bore
- 3L, A (4L), B (5L), or 5V Belt Size
- Two Side Movable
APPLICATIONS
- Conveyors
- Pumps
- Fans
- Mixers
- Ventilators
FEATURES
- Durable cast iron
- Statically balanced
- Approximate adjustment range 1.3:1
- Positive locking of adjustment settings
