E-Motor Nations  |  SKU : EMN-017473

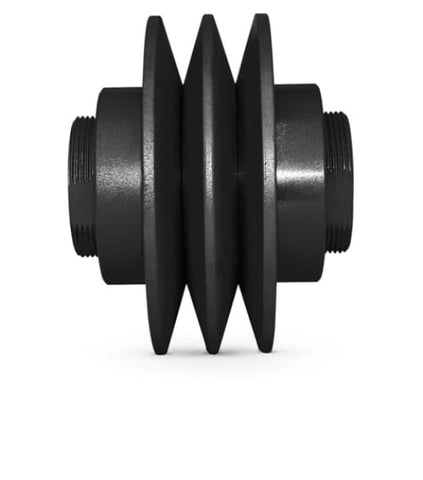

2VP36-5/8,Masterdrive,Dia 3.35'',Bore 5/8'',Variable Pitch Adjustable,2 Groove,

$74.95
shipping

Estimation des frais de livraison

Description

2VP36-5/8,Masterdrive,Dia 3.35'',Bore 5/8'',Variable Pitch Adjustable,2 Groove,

Variable Pitch Pulley - 3L, 4L, 5L, A, B Belt Section, 2 Groove, 3.3500 in O.D., Finished w/ Keyway & SS,Cast Iron Material,

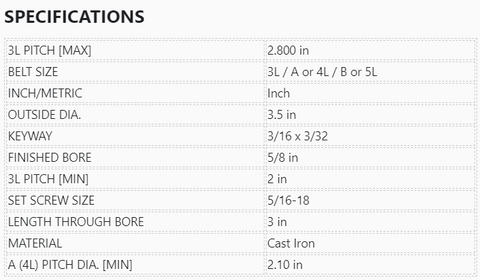

SPECIFICATIONS

3L PITCH [MAX] 2.800 in
BELT SIZE 3L / A or 4L / B or 5L
INCH/METRIC Inch
OUTSIDE DIA. 3.5 in
KEYWAY 3/16 x 3/32
FINISHED BORE 5/8 in
3L PITCH [MIN] 2 in
SET SCREW SIZE 5/16-18
LENGTH THROUGH BORE 3 in
MATERIAL Cast Iron
A (4L) PITCH DIA. [MIN] 2.10 in

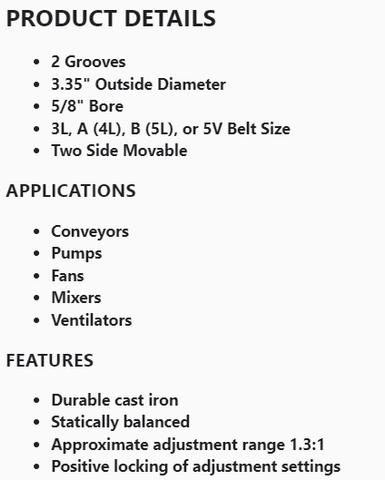

PRODUCT DETAILS

  • 2 Grooves
  • 3.35" Outside Diameter
  • 5/8" Bore
  • 3L, A (4L), B (5L), or 5V Belt Size
  • Two Side Movable

APPLICATIONS

  • Conveyors
  • Pumps
  • Fans
  • Mixers
  • Ventilators

FEATURES

  • Durable cast iron
  • Statically balanced
  • Approximate adjustment range 1.3:1
  • Positive locking of adjustment settings
