Description
Description

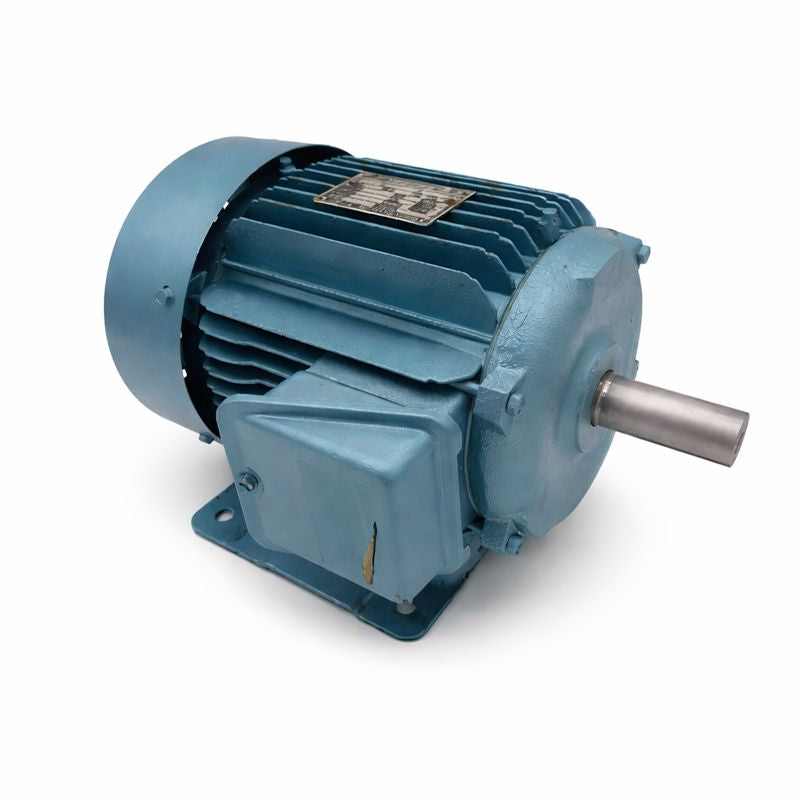

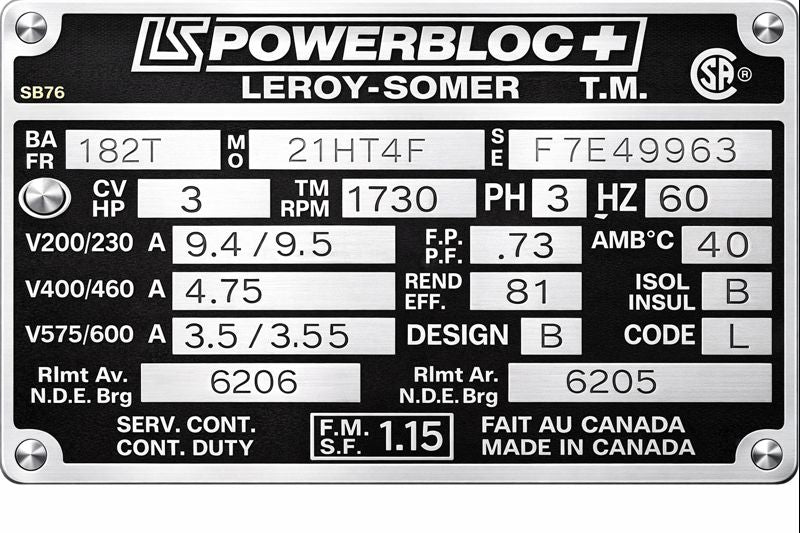

21HT4F, 3Hp, 1730 RPM, 200-230/400-460/575-600V, 3Ph, 60Hz, Frame 182T, TEFC, F1, F7E49963

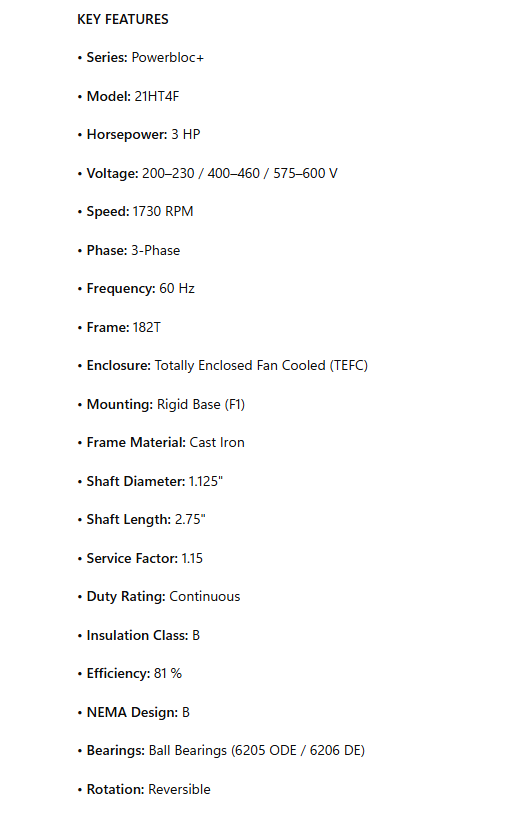

KEY FEATURES
• Series: Powerbloc+
• Model: 21HT4F
• Horsepower: 3 HP
• Voltage: 200–230 / 400–460 / 575–600 V
• Speed: 1730 RPM
• Phase: 3-Phase
• Frequency: 60 Hz
• Frame: 182T
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Mounting: Rigid Base (F1)
• Frame Material: Cast Iron
• Shaft Diameter: 1.125"
• Shaft Length: 2.75"
• Service Factor: 1.15
• Duty Rating: Continuous
• Insulation Class: B
• Efficiency: 81 %
• NEMA Design: B
• Bearings: Ball Bearings (6205 ODE / 6206 DE)
• Rotation: Reversible
