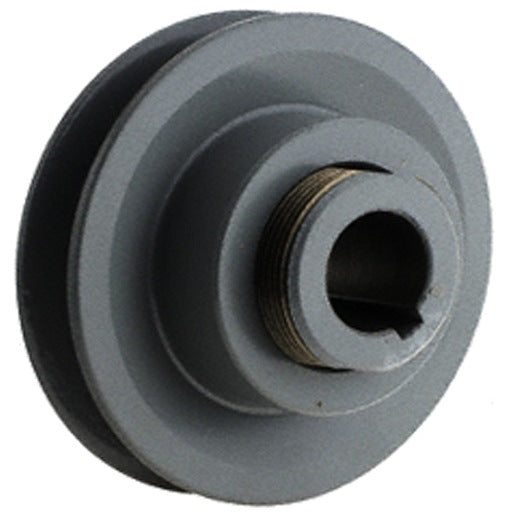

1VP50-1-1/8,Masterdrive,1VP SERIES SINGLE GROOVE,Variable pitch sheave,
1VP50-1-1/8, Pulley, 8550 Maska,

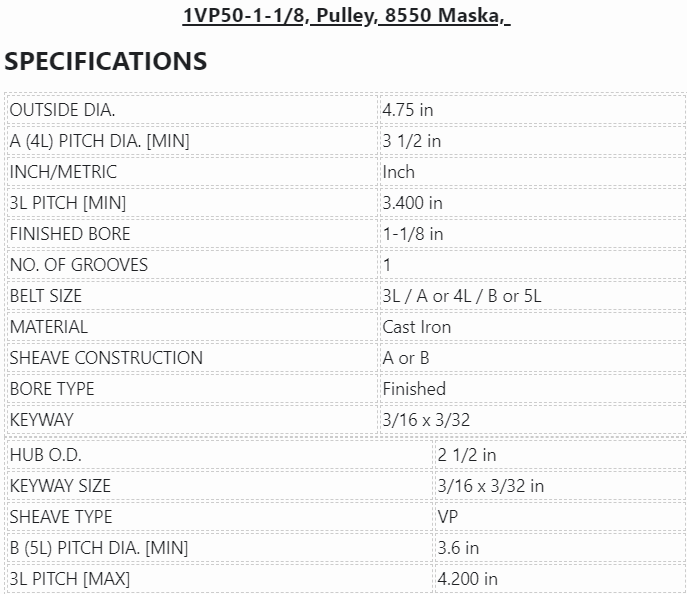

SPECIFICATIONS
OUTSIDE DIA. | 4.75 in |
A (4L) PITCH DIA. [MIN] | 3 1/2 in |
INCH/METRIC | Inch |
3L PITCH [MIN] | 3.400 in |
FINISHED BORE | 1-1/8 in |
NO. OF GROOVES | 1 |
BELT SIZE | 3L / A or 4L / B or 5L |
MATERIAL | Cast Iron |
SHEAVE CONSTRUCTION | A or B |
BORE TYPE | Finished |
KEYWAY | 3/16 x 3/32 |
HUB O.D. | 2 1/2 in |
KEYWAY SIZE | 3/16 x 3/32 in |
SHEAVE TYPE | VP |
B (5L) PITCH DIA. [MIN] | 3.6 in |
3L PITCH [MAX] | 4.200 in |

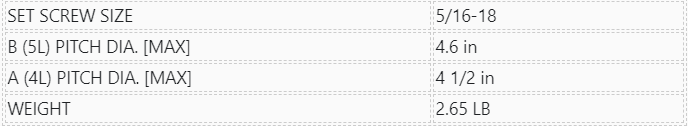

SET SCREW SIZE | 5/16-18 |
B (5L) PITCH DIA. [MAX] | 4.6 in |
A (4L) PITCH DIA. [MAX] | 4 1/2 in |
WEIGHT | 2.65 LB |
