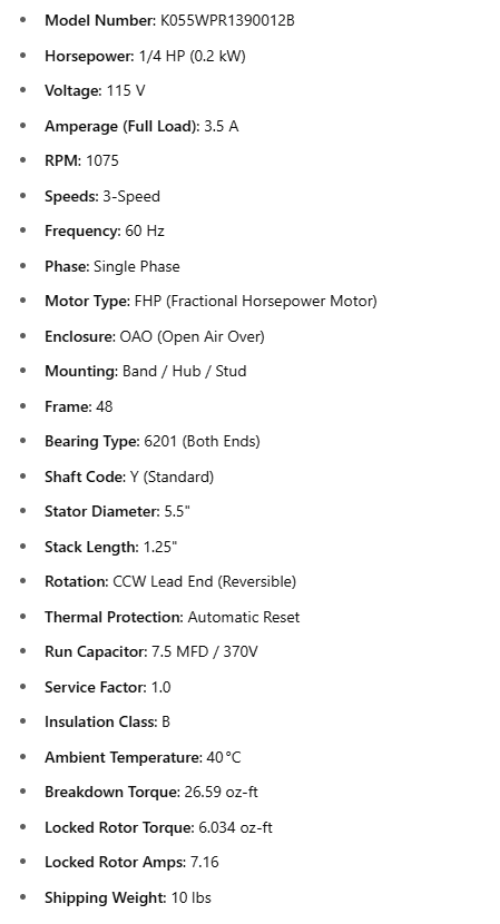

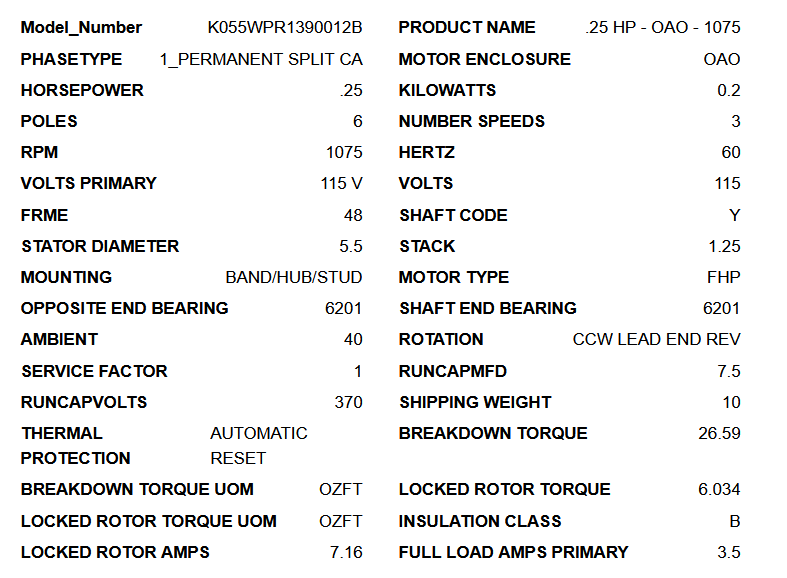

• Model Number: K055WPR1390012B

• Horsepower: 1/4 HP (0.2 kW)

• Voltage: 115 V

• Amperage (Full Load): 3.5 A

• RPM: 1075

• Speeds: 3-Speed

• Frequency: 60 Hz

• Phase: Single Phase

• Motor Type: FHP (Fractional Horsepower Motor)

• Enclosure: OAO (Open Air Over)

• Mounting: Band / Hub / Stud

• Frame: 48

• Bearing Type: 6201 (Both Ends)

• Shaft Code: Y (Standard)

• Stator Diameter: 5.5"

• Stack Length: 1.25"

• Rotation: CCW Lead End (Reversible)

• Thermal Protection: Automatic Reset

• Run Capacitor: 7.5 MFD / 370V

• Service Factor: 1.0

• Insulation Class: B

• Ambient Temperature: 40 °C

• Breakdown Torque: 26.59 oz-ft

• Locked Rotor Torque: 6.034 oz-ft

• Locked Rotor Amps: 7.16

• Shipping Weight: 10 lbs
