E-Motor Nations  |  SKU : EMN-016872

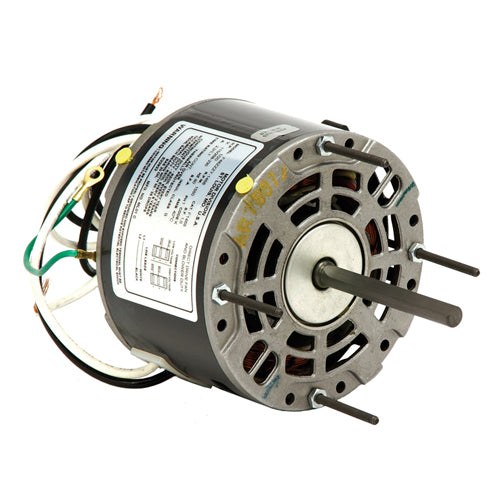

1470P, 0.1 Hp, 1550 RPM, 115/208-230 V 60Hz, 1Ph, ODP, 42 , K048WGW4390011B

$366.88
shipping

Estimation des frais de livraison

Description

1470P, Us Motors,  0.1 Hp, 1550 RPM, 115/208-230 V 60Hz, 1Ph, ODP, 42 , K048WGW4390011B

Replace: SS2942 Omni drive Obsolete, Replaced by  Us Motor 1470P, RF4400 Century,

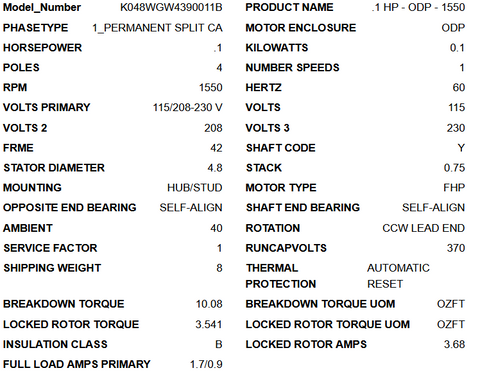

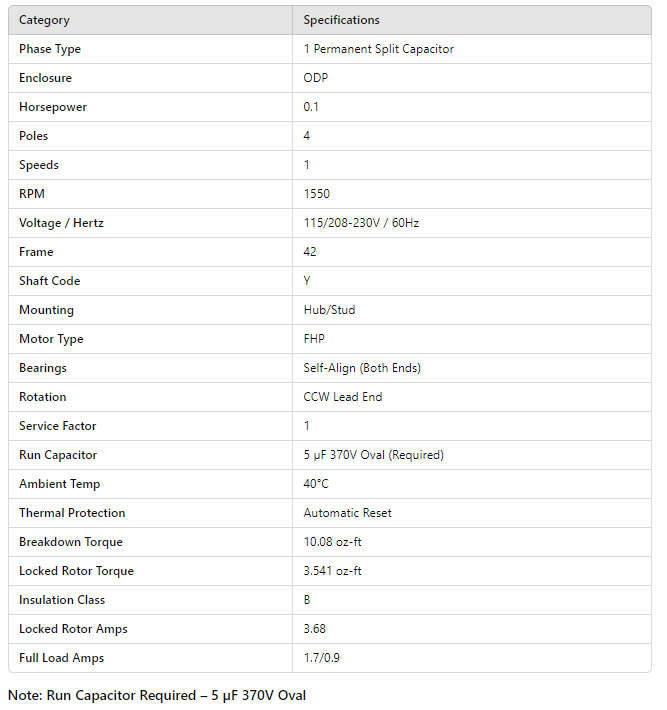

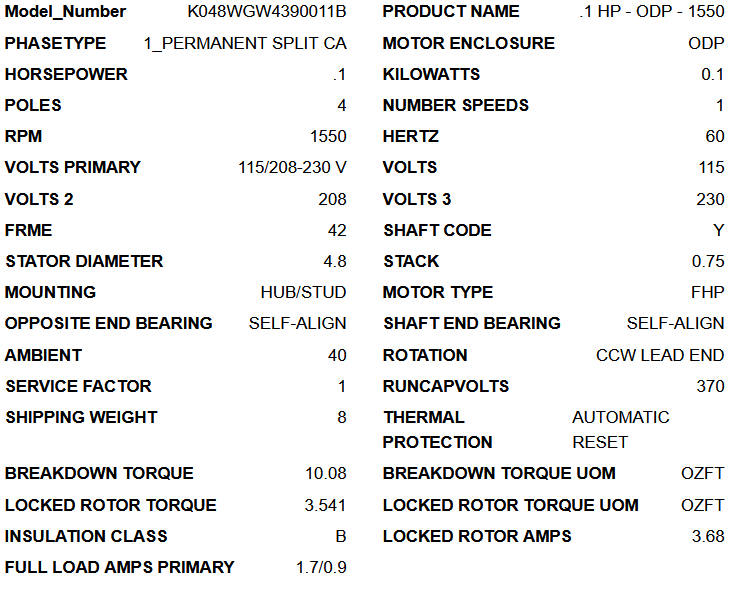

Category Specifications
Phase Type 1 Permanent Split Capacitor
Enclosure ODP
Horsepower 0.1
Poles 4
Speeds 1
RPM 1550
Voltage / Hertz 115/208-230V / 60Hz
Frame 42
Shaft Code Y
Mounting Hub/Stud
Motor Type FHP
Bearings Self-Align (Both Ends)
Rotation CCW Lead End
Service Factor 1
Run Capacitor 5 µF 370V Oval (Required)
Ambient Temp 40°C
Thermal Protection Automatic Reset
Breakdown Torque 10.08 oz-ft
Locked Rotor Torque 3.541 oz-ft
Insulation Class B
Locked Rotor Amps 3.68
Full Load Amps 1.7/0.9

Note: Run Capacitor Required – 5 µF 370V Oval
