E-Motor Nations  |  SKU : EMN-018235

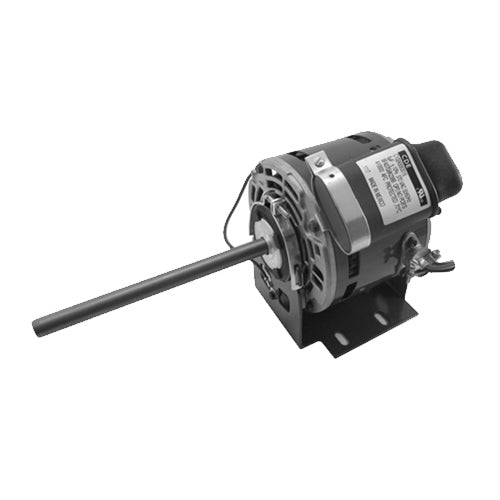

1175, Us Motors, K048DSJ0221012B, 1/20Hp, 1100 Rpm, 115 Volts, Frame:42Y,

$486.11
shipping

Estimation des frais de livraison

Description

1175, Us Motors,K048DSJ0221012B, Replace 9608,9608A,1362SX,

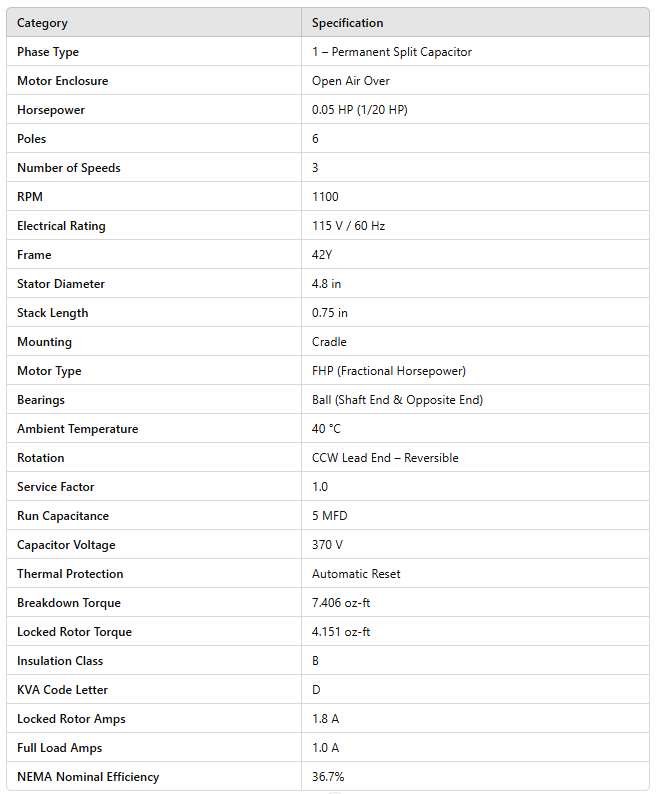

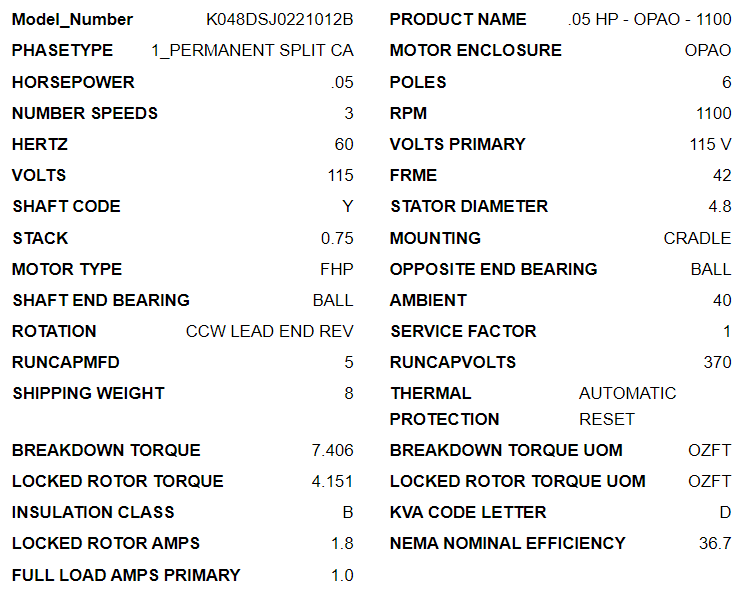

Category Specification
Phase Type 1 – Permanent Split Capacitor
Motor Enclosure Open Air Over
Horsepower 0.05 HP (1/20 HP)
Poles 6
Number of Speeds 3
RPM 1100
Electrical Rating 115 V / 60 Hz
Frame 42Y
Stator Diameter 4.8 in
Stack Length 0.75 in
Mounting Cradle
Motor Type FHP (Fractional Horsepower)
Bearings Ball (Shaft End & Opposite End)
Ambient Temperature 40 °C
Rotation CCW Lead End – Reversible
Service Factor 1.0
Run Capacitance 5 MFD
Capacitor Voltage 370 V
Thermal Protection Automatic Reset
Breakdown Torque 7.406 oz-ft
Locked Rotor Torque 4.151 oz-ft
Insulation Class B
KVA Code Letter D
Locked Rotor Amps 1.8 A
Full Load Amps 1.0 A
NEMA Nominal Efficiency 36.7%

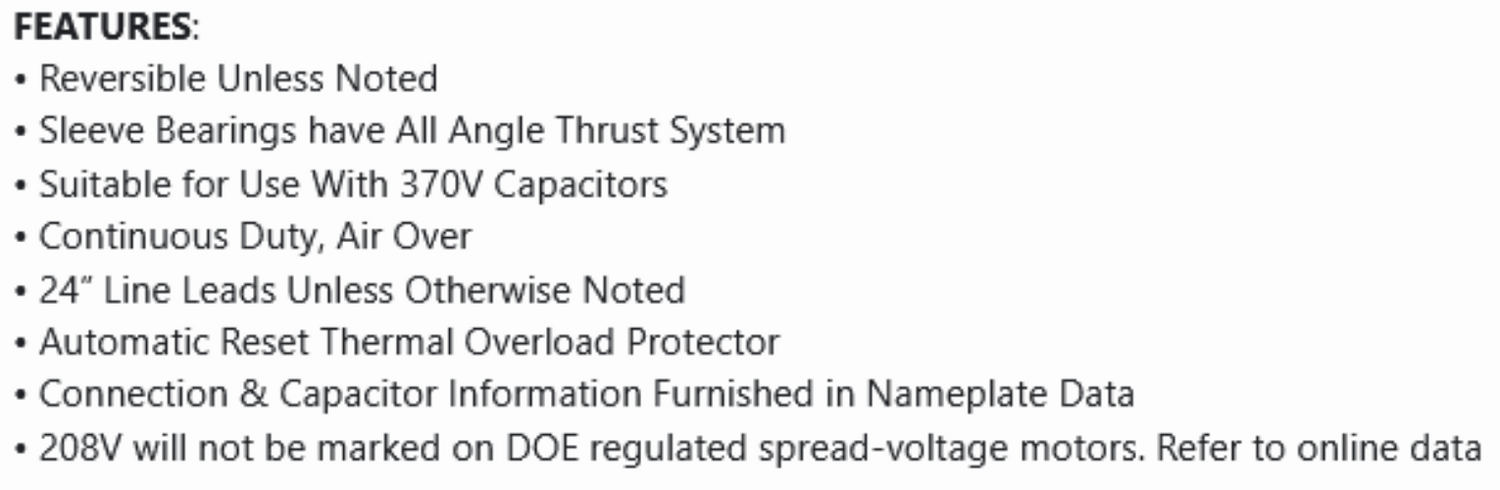

FEATURES:
• Reversible Unless Noted
• Sleeve Bearings have All Angle Thrust System
• Suitable for Use With 370V Capacitors
• Continuous Duty, Air Over
• 24” Line Leads Unless Otherwise Noted
• Automatic Reset Thermal Overload Protector
• Connection & Capacitor Information Furnished in Nameplate Data
• 208V will not be marked on DOE regulated spread-voltage motors. Refer to online data
