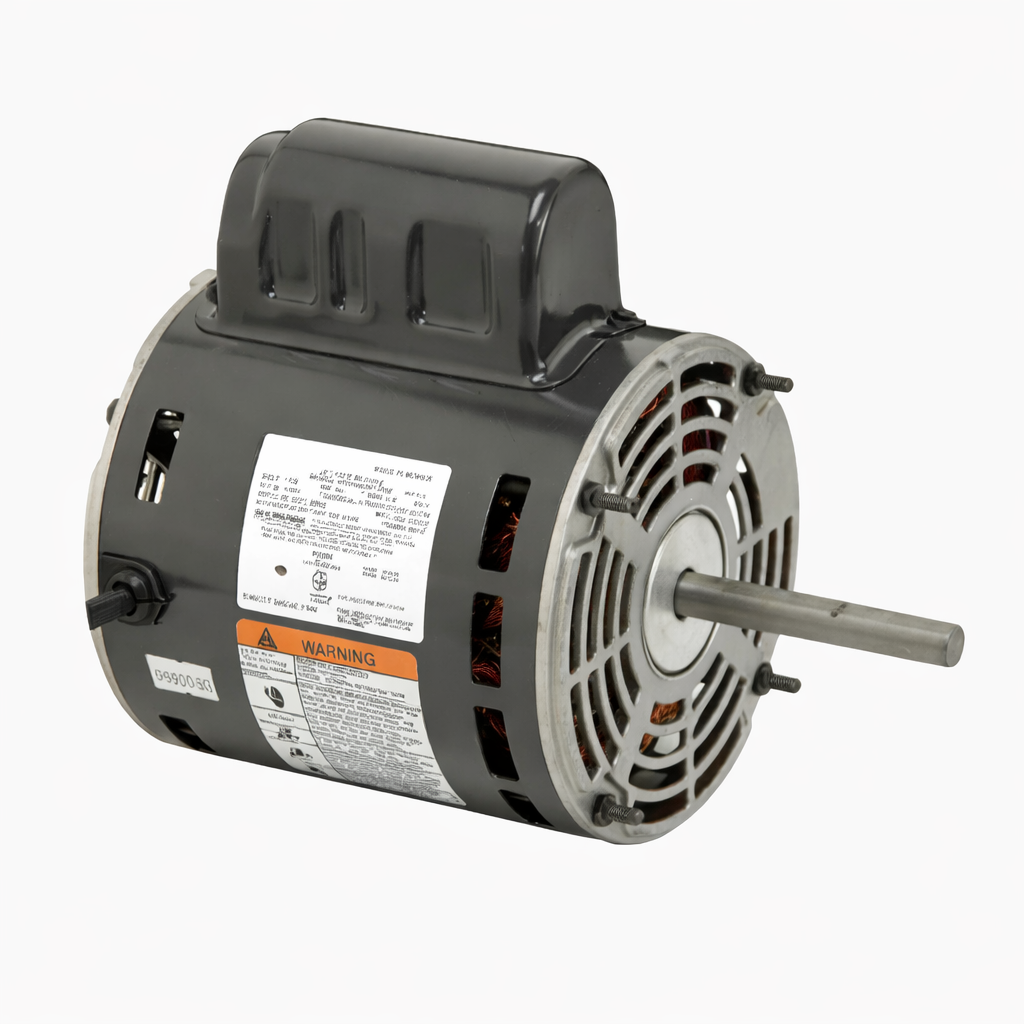

1146, Furnace Motor, 1/6Hp, 1100 RPM, 115V, 1Ph, 60Hz, Frame 48YZ, OAO, K55HXEGY-1146

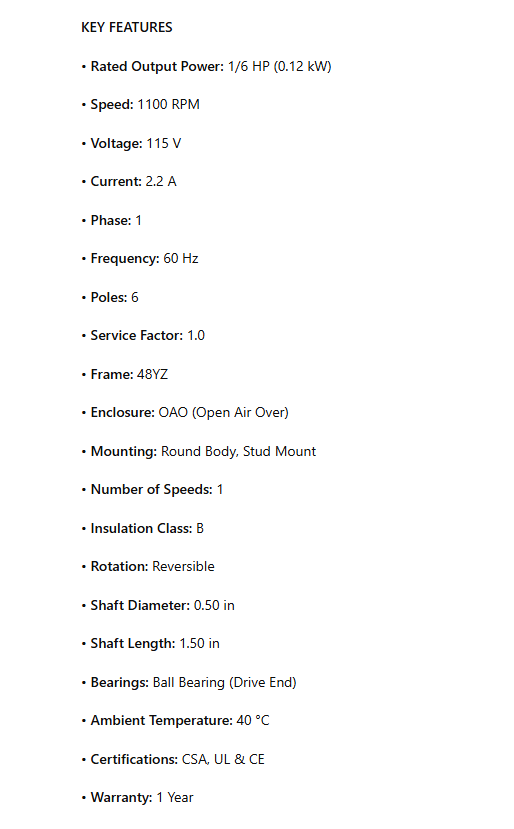

KEY FEATURES
• Rated Output Power: 1/6 HP (0.12 kW)
• Speed: 1100 RPM
• Voltage: 115 V
• Current: 2.2 A
• Phase: 1
• Frequency: 60 Hz
• Poles: 6
• Service Factor: 1.0
• Frame: 48YZ
• Enclosure: OAO (Open Air Over)
• Mounting: Round Body, Stud Mount
• Number of Speeds: 1
• Insulation Class: B
• Rotation: Reversible
• Shaft Diameter: 0.50 in
• Shaft Length: 1.50 in
• Bearings: Ball Bearing (Drive End)
• Ambient Temperature: 40 °C
• Certifications: CSA, UL & CE
• Warranty: 1 Year
