1090, 0.067Hp, 1100 RPm, 115V, 60 Hz, Fr. 42, CWLE, K048TBD3640013B
Description
Description
1090, 0.067Hp, 1100 RPm, 115V, 60 Hz, Fr. 42, CWLE, K048TBD3640013B

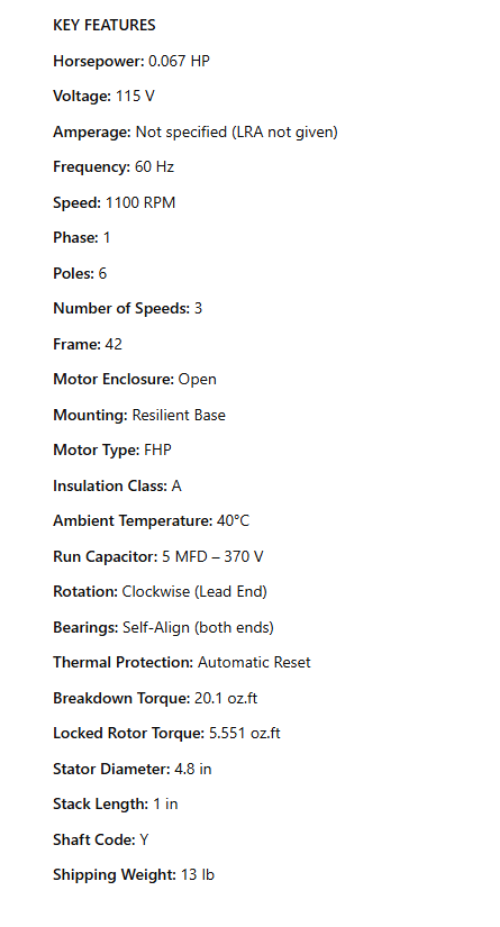

KEY FEATURES
Horsepower: 0.067 HP
Voltage: 115 V
Amperage: Not specified (LRA not given)
Frequency: 60 Hz
Speed: 1100 RPM
Phase: 1
Poles: 6
Number of Speeds: 3
Frame: 42
Motor Enclosure: Open
Mounting: Resilient Base
Motor Type: FHP
Insulation Class: A
Ambient Temperature: 40°C
Run Capacitor: 5 MFD – 370 V
Rotation: Clockwise (Lead End)
Bearings: Self-Align (both ends)
Thermal Protection: Automatic Reset
Breakdown Torque: 20.1 oz.ft
Locked Rotor Torque: 5.551 oz.ft
Stator Diameter: 4.8 in
Stack Length: 1 in
Shaft Code: Y
Shipping Weight: 13 lb
