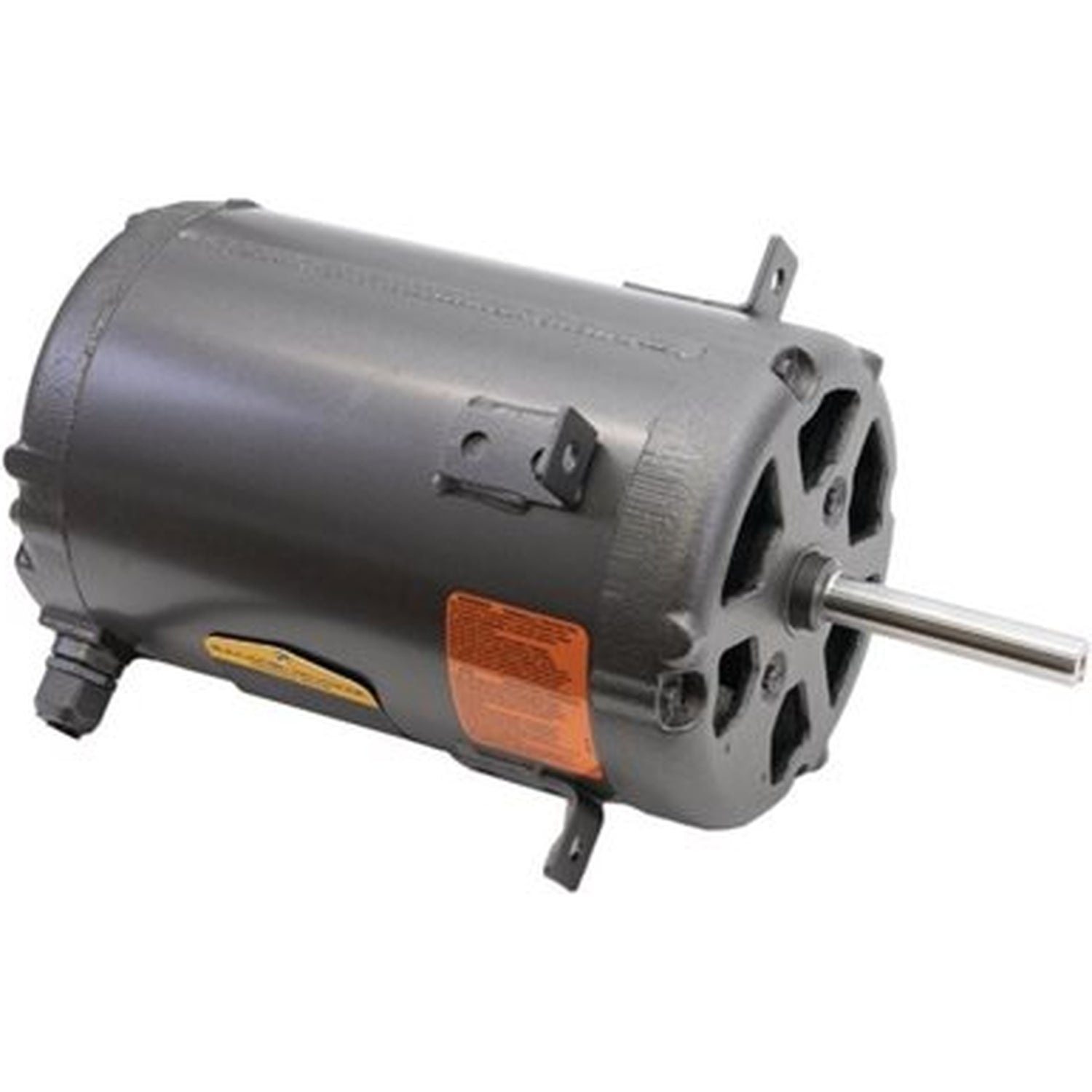

1087955NP, 2Hp, 1140 RPM, 575 V, 3 Ph, 60 Hz, Open Air Over, Frame 56Y

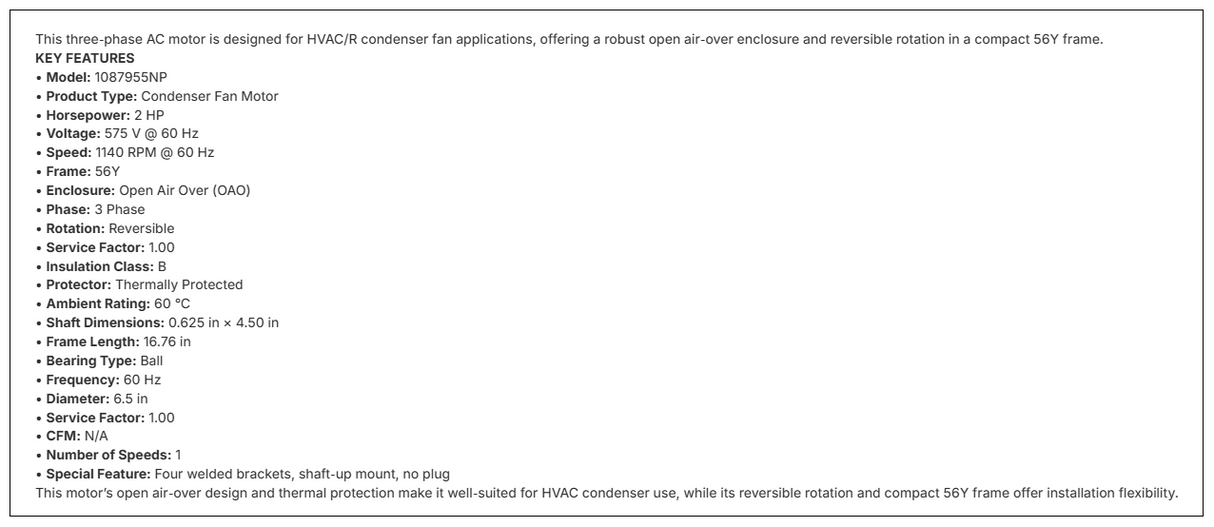

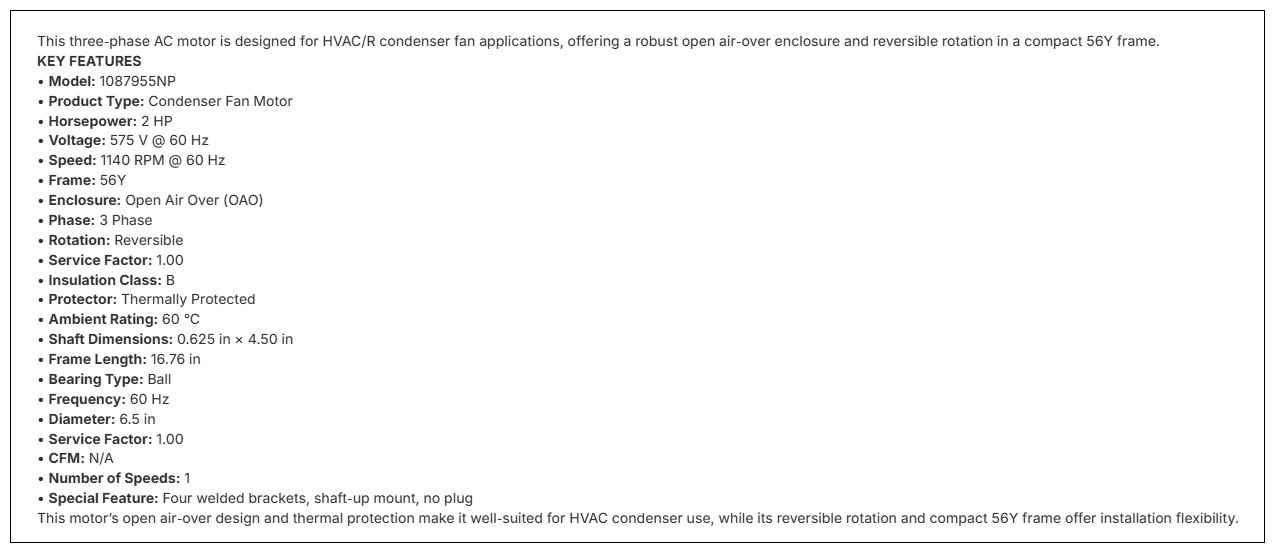

This three‑phase AC motor is designed for HVAC/R condenser fan applications, offering a robust open air‑over enclosure and reversible rotation in a compact 56Y frame.

KEY FEATURES

• Model: 1087955NP

• Product Type: Condenser Fan Motor

• Horsepower: 2 HP

• Voltage: 575 V @ 60 Hz

• Speed: 1140 RPM @ 60 Hz

• Frame: 56Y

• Enclosure: Open Air Over (OAO)

• Phase: 3 Phase

• Rotation: Reversible

• Service Factor: 1.00

• Insulation Class: B

• Protector: Thermally Protected

• Ambient Rating: 60 °C

• Shaft Dimensions: 0.625 in × 4.50 in

• Frame Length: 16.76 in

• Bearing Type: Ball

• Frequency: 60 Hz

• Diameter: 6.5 in

• Service Factor: 1.00

• CFM: N/A

• Number of Speeds: 1

• Special Feature: Four welded brackets, shaft‑up mount, no plug

This motor’s open air‑over design and thermal protection make it well‑suited for HVAC condenser use, while its reversible rotation and compact 56Y frame offer installation flexibility.
