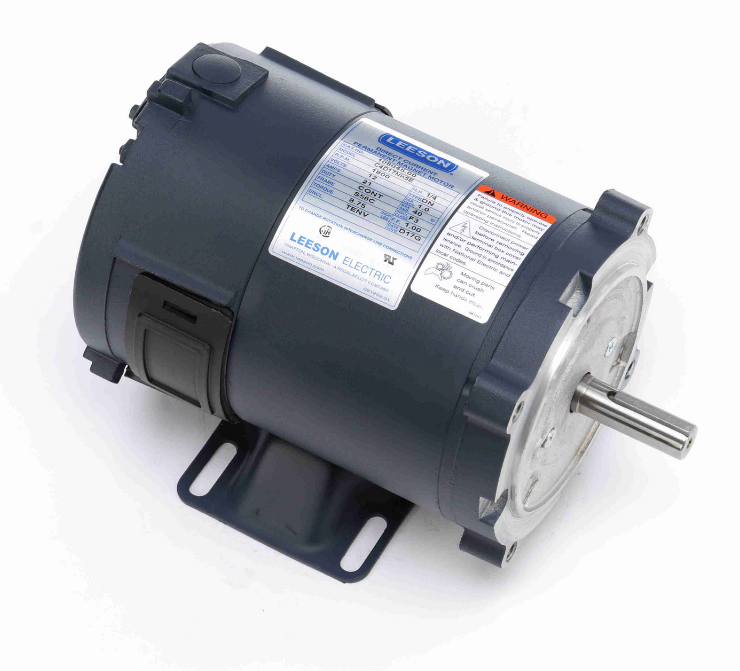

108045.00, Low Voltage Motor, 0.25Hp, 12 V, 1800 RPM, S56C Frame, TENV, C4D17NK5E

108045.00, Low Voltage Motor, 0.25Hp, 12 V, 1800 RPM, S56C Frame, TENV, C4D17NK5E

Replace MM2512NV

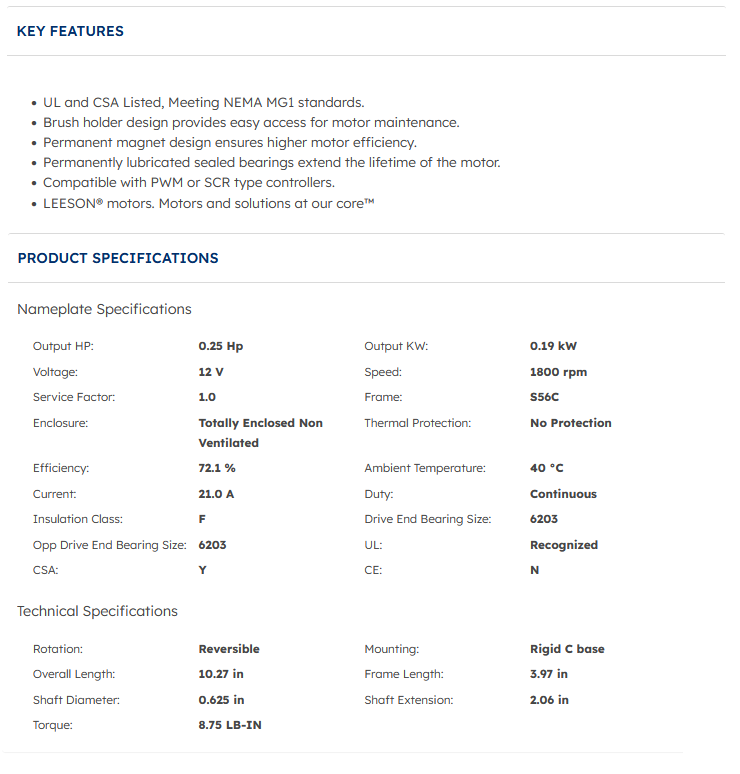

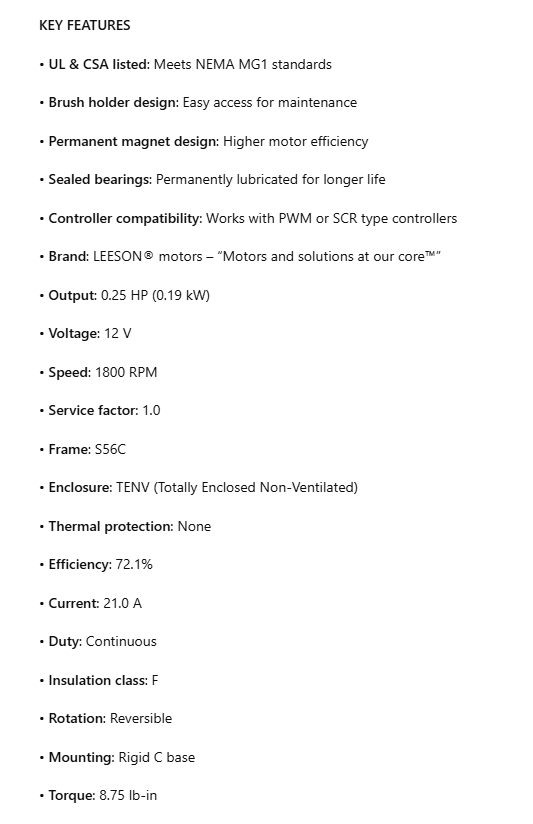

KEY FEATURES

• UL & CSA listed: Meets NEMA MG1 standards

• Brush holder design: Easy access for maintenance

• Permanent magnet design: Higher motor efficiency

• Sealed bearings: Permanently lubricated for longer life

• Controller compatibility: Works with PWM or SCR type controllers

• Brand: LEESON® motors – “Motors and solutions at our core™”

• Output: 0.25 HP (0.19 kW)

• Voltage: 12 V

• Speed: 1800 RPM

• Service factor: 1.0

• Frame: S56C

• Enclosure: TENV (Totally Enclosed Non-Ventilated)

• Thermal protection: None

• Efficiency: 72.1%

• Current: 21.0 A

• Duty: Continuous

• Insulation class: F

• Rotation: Reversible

• Mounting: Rigid C base

• Torque: 8.75 lb-in
