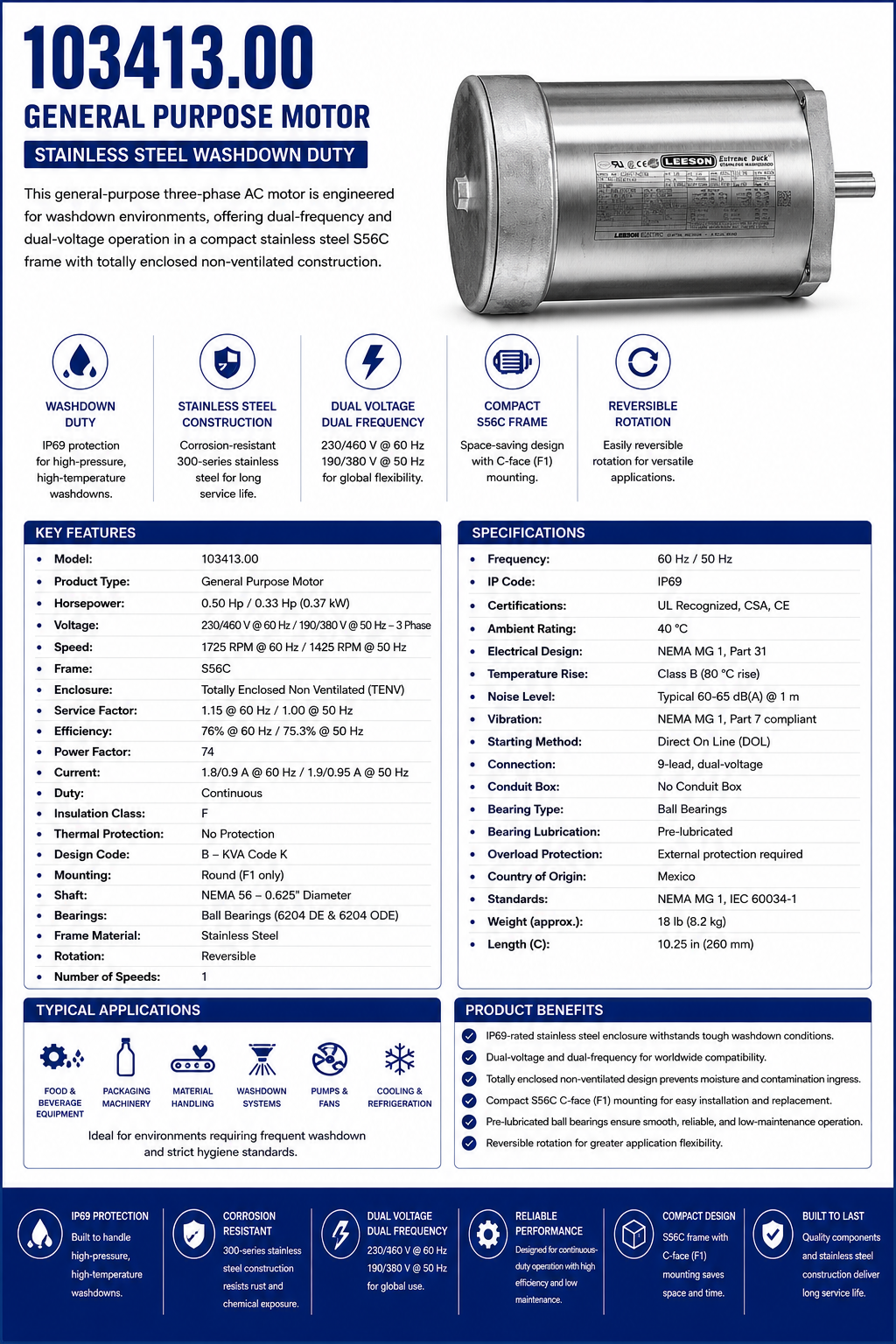

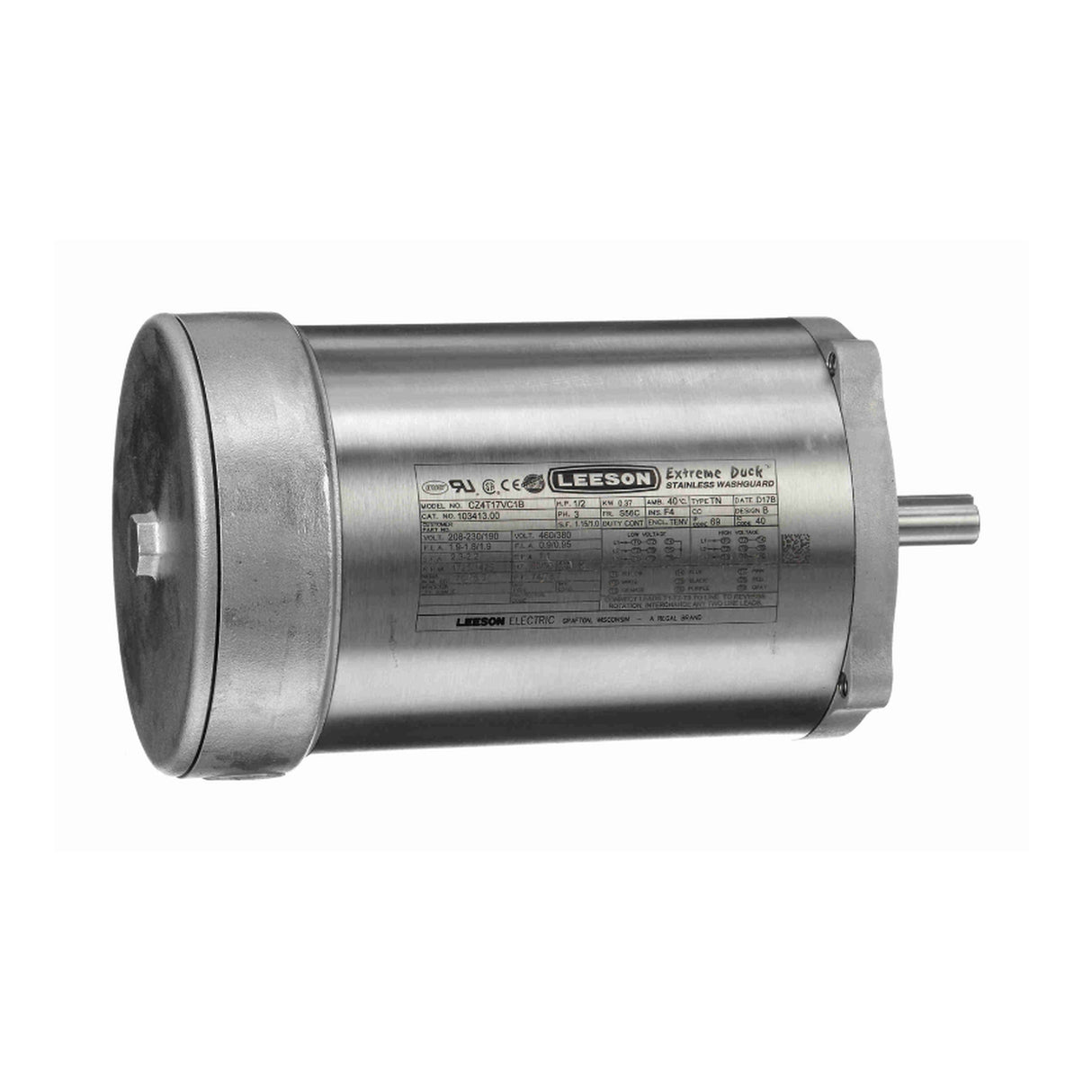

103413.00, 0.50Hp / 0.33Hp, 1725/1425 RPM, 230/460 V @ 60 Hz / 190/380 V @ 50 Hz, TENV, Frame S56C, 103413.00

This general-purpose three-phase AC motor is engineered for washdown environments, offering dual-frequency and dual-voltage operation in a compact stainless steel S56C frame with totally enclosed non‑ventilated construction.

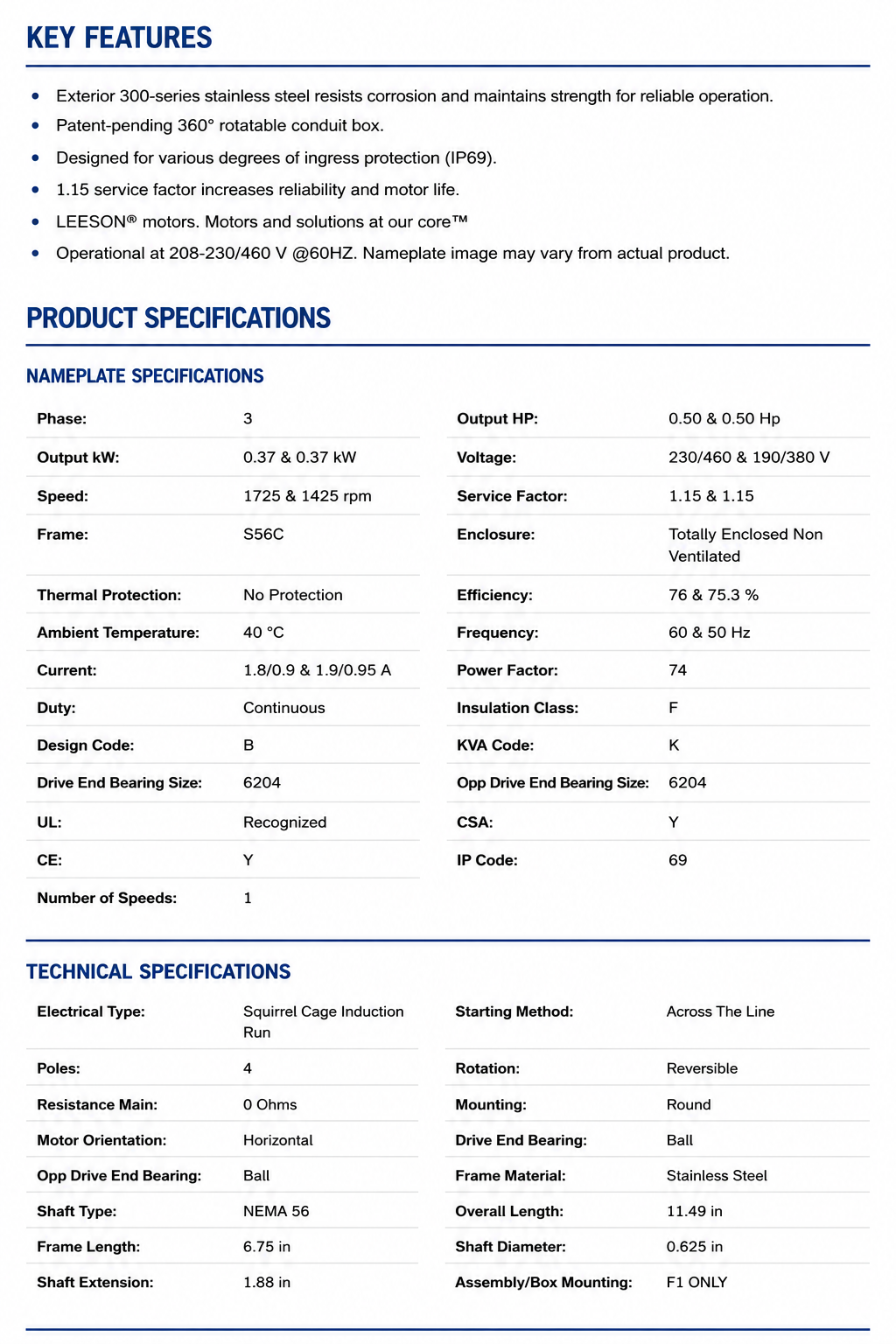

KEY FEATURES

• Model: 103413.00

• Product Type: General Purpose Motor

• Horsepower: 0.50 Hp / 0.33 Hp (0.37 kW)

• Voltage: 230/460 V @ 60 Hz / 190/380 V @ 50 Hz – 3 Phase

• Speed: 1725 RPM @ 60 Hz / 1425 RPM @ 50 Hz

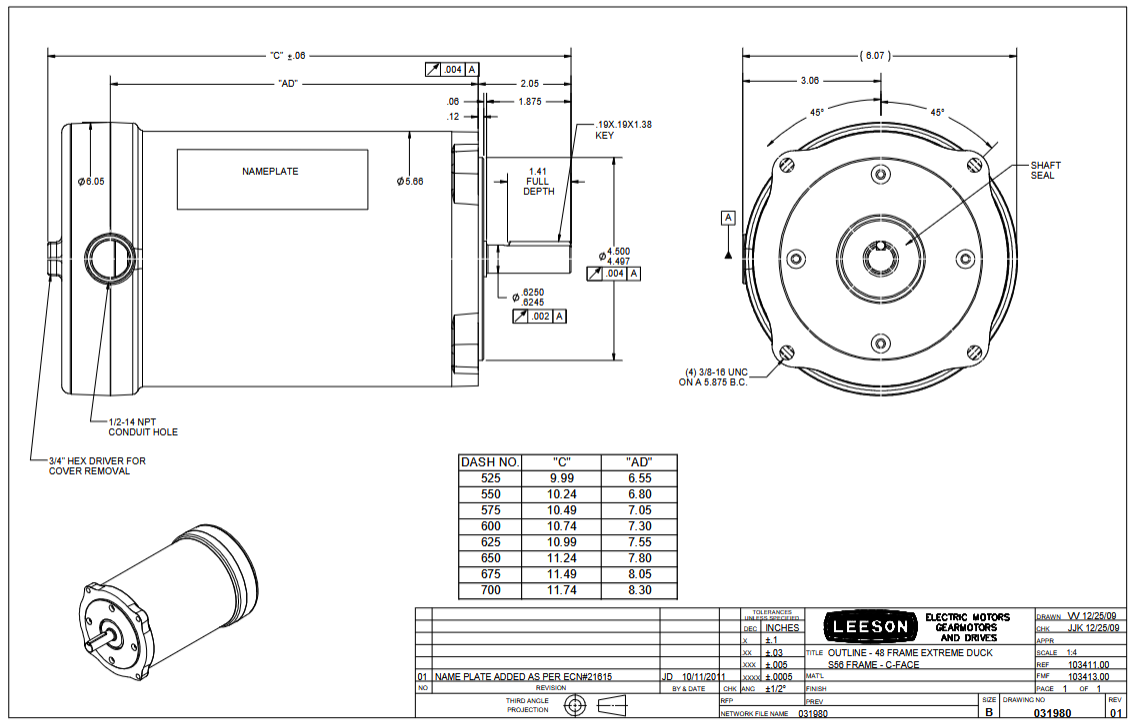

• Frame: S56C

• Enclosure: Totally Enclosed Non Ventilated (TENV)

• Service Factor: 1.15 @ 60 Hz / 1.00 @ 50 Hz

• Efficiency: 76% @ 60 Hz / 75.3% @ 50 Hz

• Power Factor: 74

• Current: 1.8/0.9 A @ 60 Hz / 1.9/0.95 A @ 50 Hz

• Duty: Continuous

• Insulation Class: F

• Thermal Protection: No Protection

• Design Code: B – KVA Code K

• Mounting: Round (F1 only)

• Shaft: NEMA 56 – 0.625" Diameter

• Bearings: Ball Bearings (6204 DE & 6204 ODE)

• Frame Material: Stainless Steel

• Rotation: Reversible

• Number of Speeds: 1

• IP Code: 69

• Certifications: UL Recognized, CSA, CE

• Ambient Rating: 40 °C
